EGR ROLLTRAC RT038812E Installation Instructions Manual page 23

SECTION C
DURING ASSEMBLY PROCEDURE SUPPORT AT CENTER OF CANISTER ONLY,
PLACE ON TOP AND BASE CARTON (OR SIMILAR), COVER WITH FOAM BLANKET.
LHS
3
1
ATTENTION: SEAL MUST FACE IN THE
DIRECTION AS SHOWN. WARRANTY VOID IF
ASSEMBLED INCORRECTLY.
HOLD SEAL FLAT
USE CLOTH TAPE
1

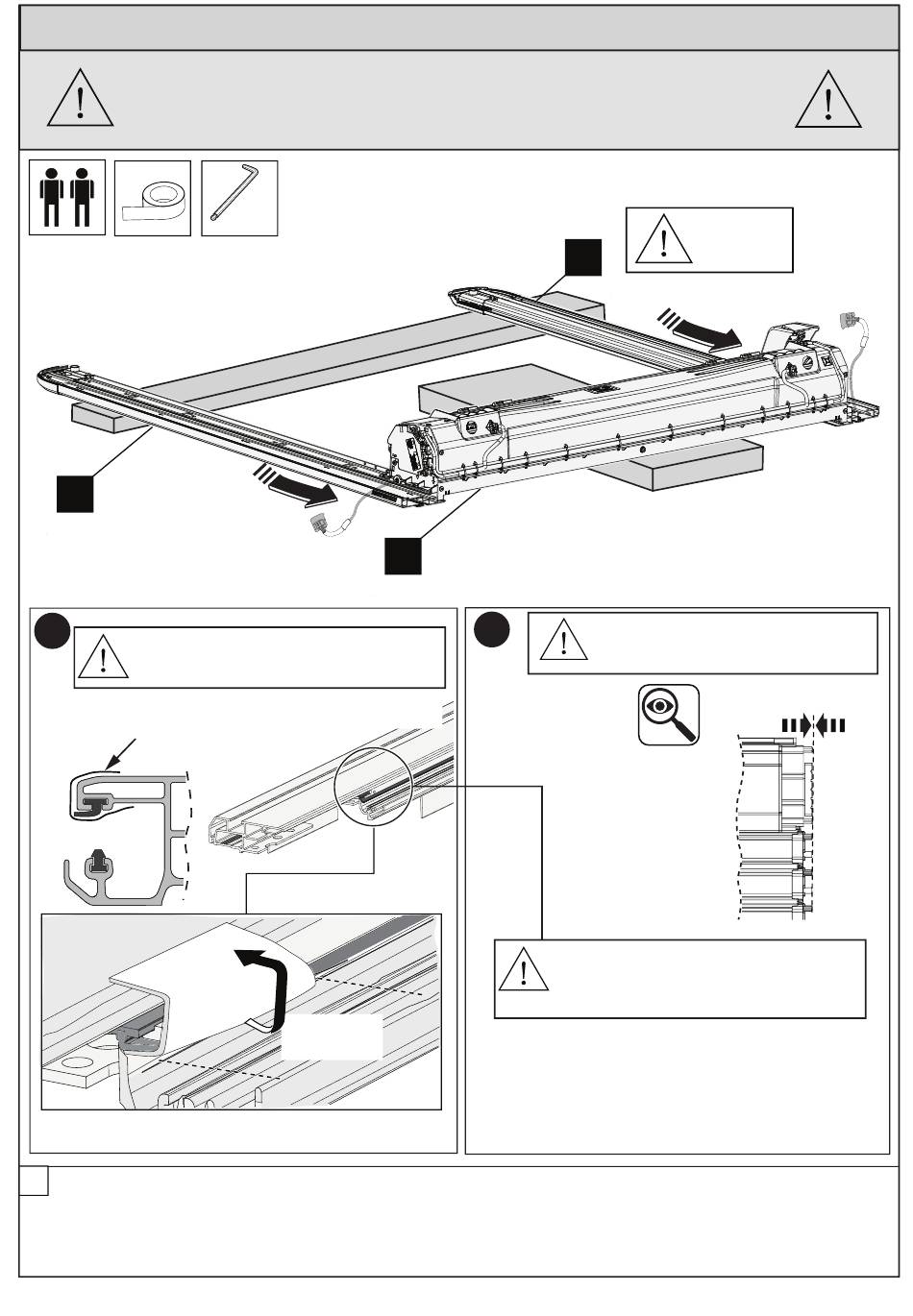

Place the canister (1) on two protected boxes as shown, ensure hand rail and slat ends are aligned. Tape up the seal
on the Side Rail (3) as shown.
IMPORTANT: Carefully align and slide the rail over the handrail endcap and canister endplate taking particular care
to ensure that the siderails are slid straight and no undue force is applied to the electrical contact. Details in following
steps.
RT0046
TO AVOID SCRATCHING POWDERCOATED SURFACES.
DO NOT LOAD ELECTRICAL CONNECTORS OR MOTOR COVER.
4mm(5/32'')
RHS SHOWN
APPROX
300mm (12˝)
1
2
ATTENTION: WIPE THE SEAL AND SIDE RAIL
WITH WAX & GREASE REMOVAL TO ENSURE
THE CLOTH TAPE WILL ADHERE TO THE SIDE
Page 23 of 36
EGR RollTrac ASSEMBLY
FIT RHS
4
FIRST
ATTENTION: EXPOSE 3 SLATS PRIOR TO
FITTING SIDE RAILS.
ENSURE ENDS ARE
RAIL AND SEAL
ALIGNED
Issue 5: 20/09/23
