18
5

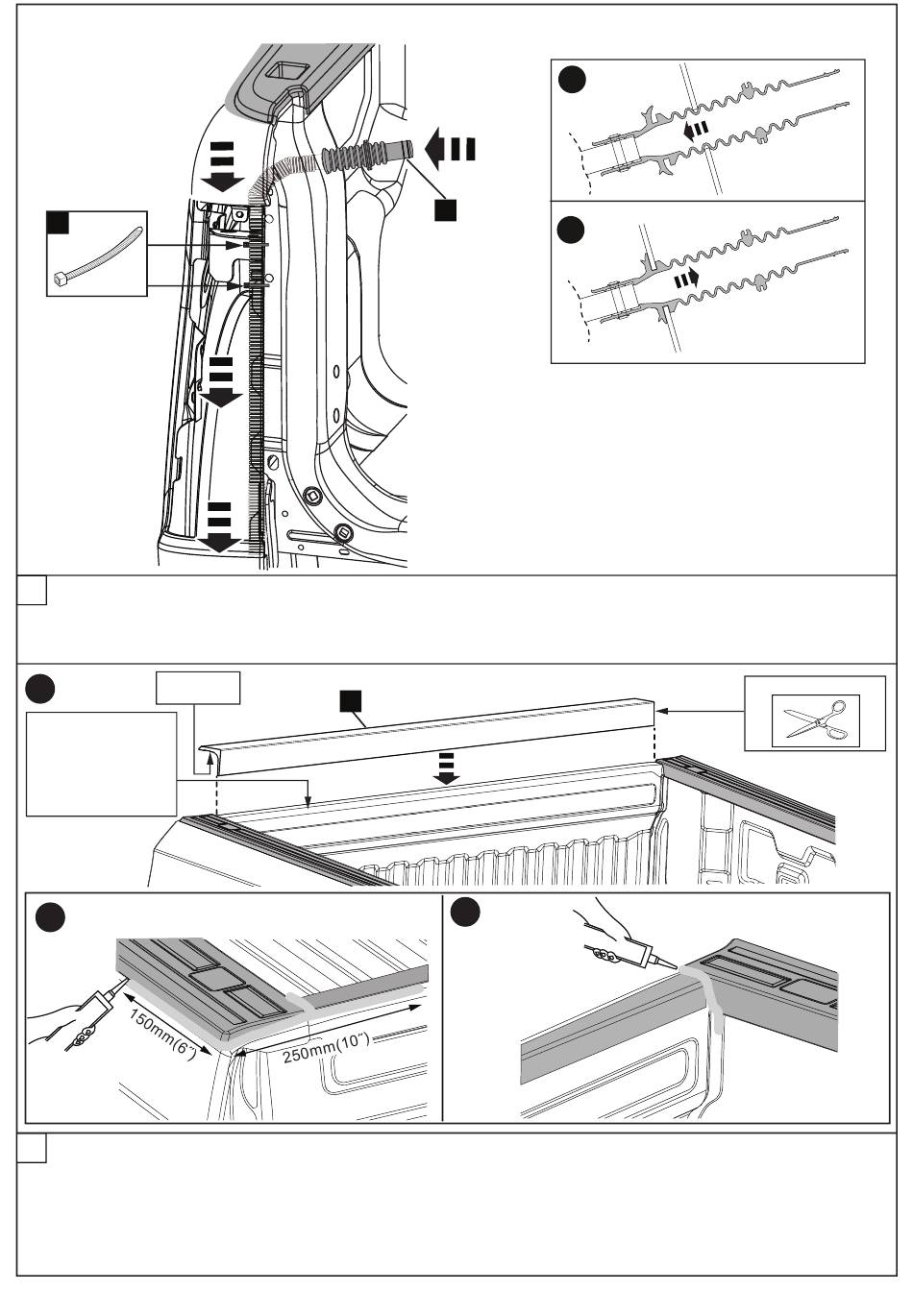

Feed the rear drain tube into the drilled hole. Guide the plastic tube inside the tail light cavity towards the ground.
Push the rubber tube in until it sits firmly in the hole as shown.
Secure the drain tube (13) to the existing harness inside the tail light cavity using 2 cable ties (18). Refit Rear Tail
Lamps.
1
Remove Tape
Liner
50/50
Isopropyl Alcohol/Water
3M Primer 94
(preferred) or
equivalent
2
RHS BED FRONT CORNER
FILL GAPS AS
REQUIRED
6
Clean the front top of the bed using Isopropyl Alcohol/Water mix and apply primer to the top area. Allow to dry.
Place the extrusion (19) on front of the vehicle bed, check the length and trim to full width if required. Pre-peel
50mm (2˝) of the tape liner from one end of the Rubber Extrusion (19). Place the Rubber Extrusion on top of the
bed as shown and centralise. Once in position, peel the liner and apply firm pressure from the top. Silicone the gap
between the panels as shown on both sides. NOTE: Holes in the bed should be sealed with Silicone to prevent dust
and water ingress as required.
RT0046
13
19
3
FILL GAPS AS
REQUIRED
Page 7 of 36
1
2
RHS BED TOP & INSIDE
TRIM AS REQUIRED
Issue 5: 20/09/23
