APPENDIX 1. RECORD DATA

The record data used in NCW-3DHPN is written in the GSDML file.

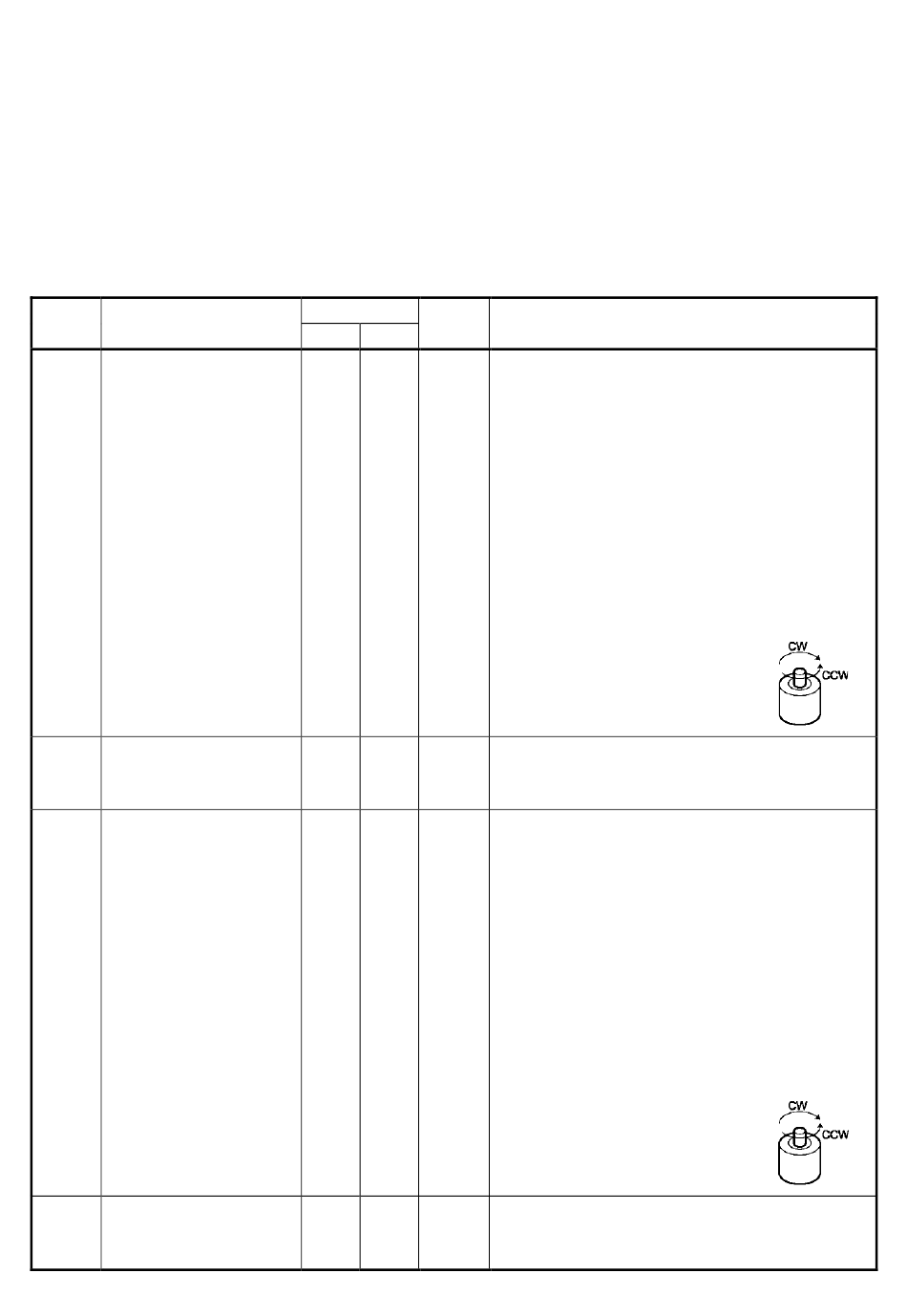

APPENDIX 1-1. Sensor Parameter

NCW-3DHPN has following sensor parameters.
Index Name
0x1000 Axis-1 Sensor Parameter
0x1001 Axis-1 Preset
0x2000 Axis-2 Sensor Parameter
0x2001 Axis-2 Preset
Access
Data
Read Write Type
○ ○
BYTE
○ ○
UDINT
○ ○
BYTE
○ ○
UDINT
64
Description
Bit0 ... Axis Unavailable
Specify "Enable" or "Disable" for the axis.
0: Enable (Default)
1: Disable
Bit1 ... Error Clear
Specify "Error recovery behavior".
0: Auto clearing (Default)
Automatically clears the error when removing the
cause of the error.
1: Manual clearing
Bit2 ... Code Sequence (Position Data Increase Direction)
Specify the ABSOCODER sensor rotation direction in
which the position data increases.
0: CW (Default)
1: CCW
Specify "Preset Value".
Axis-1 position data is changed to a value which is specified
at this parameter after setting it.
Bit0 ... Axis Unavailable
Specify "Enable" or "Disable" for the axis.
0: Enable (Default)
1: Disable
Bit1 ... Error Clear
Specify "Error recovery behavior".
0: Auto clearing (Default)
Automatically clears the error when removing the
cause of the error.
1: Manual clearing
Bit2 ... Code Sequence (Position Data Increase Direction)
Specify the ABSOCODER sensor rotation direction in
which the position data increases.
0: CW (Default)
1: CCW
Specify "Preset Value".
Axis-2 position data is changed to a value which is specified
at this parameter after setting it.
