9-10. Confirm Position Data of NCW-3DHPN

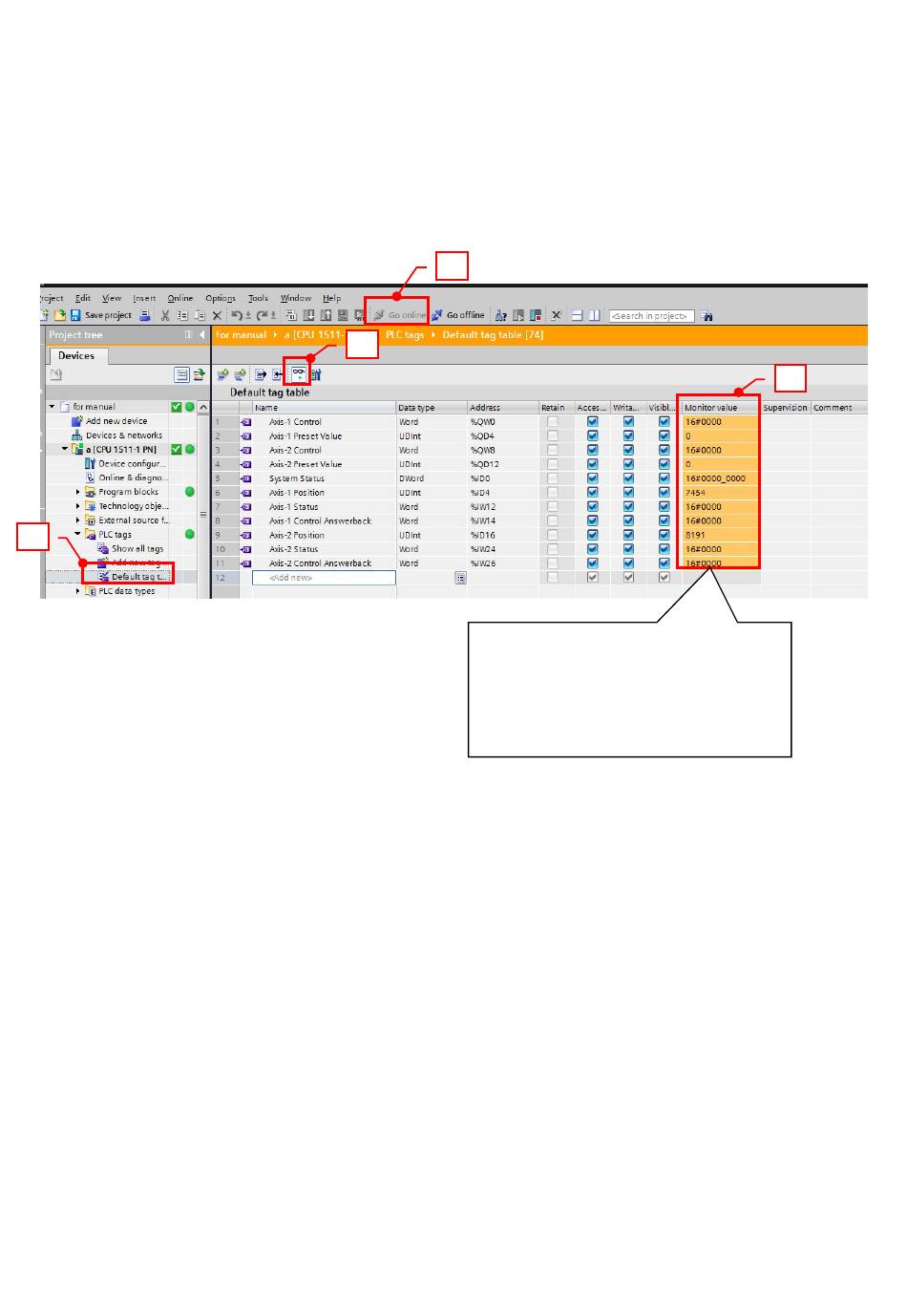

(1) Click "Go online" when PLC is RUN mode.
(2) "Default tag table" is displayed by selecting "PLC->PLC Tag->Default tag table".
(3) Current I/O data are displayed on "Monitor value" when clicking "Monitor" button.
(2)
(1)
(3)
Current I/O data are displayed.
The position data can be confirmed by
following items;
For Axis-1: Axis-1 Position
For Axis-1: Axis-2 Position
53
(3)
