9-2. Preparation

Prepares that NCW-3DHPN connects the PROFINET network.
This manual assumes that NCW-3DHPN and a programmable controller which is manufactured by Siemens AG,
Inc. are connected by the network. Therefore, we explain the manual by using a configuration tool "STEP7 V14
Professional SP1" developed by Siemens AG, Inc.. For the details of the tool, refer to manual of the "STEP7 V14
Professional SP1".
●Preparation of GDSML file
If the configuration tool is needed the definition file (GSDML file), download it from NSD website.
URL: www.nsdcorp.co.jp
File name: GSDML-V***-NSD_Corporation-NCW3D_PN-********
●Hardware Setup

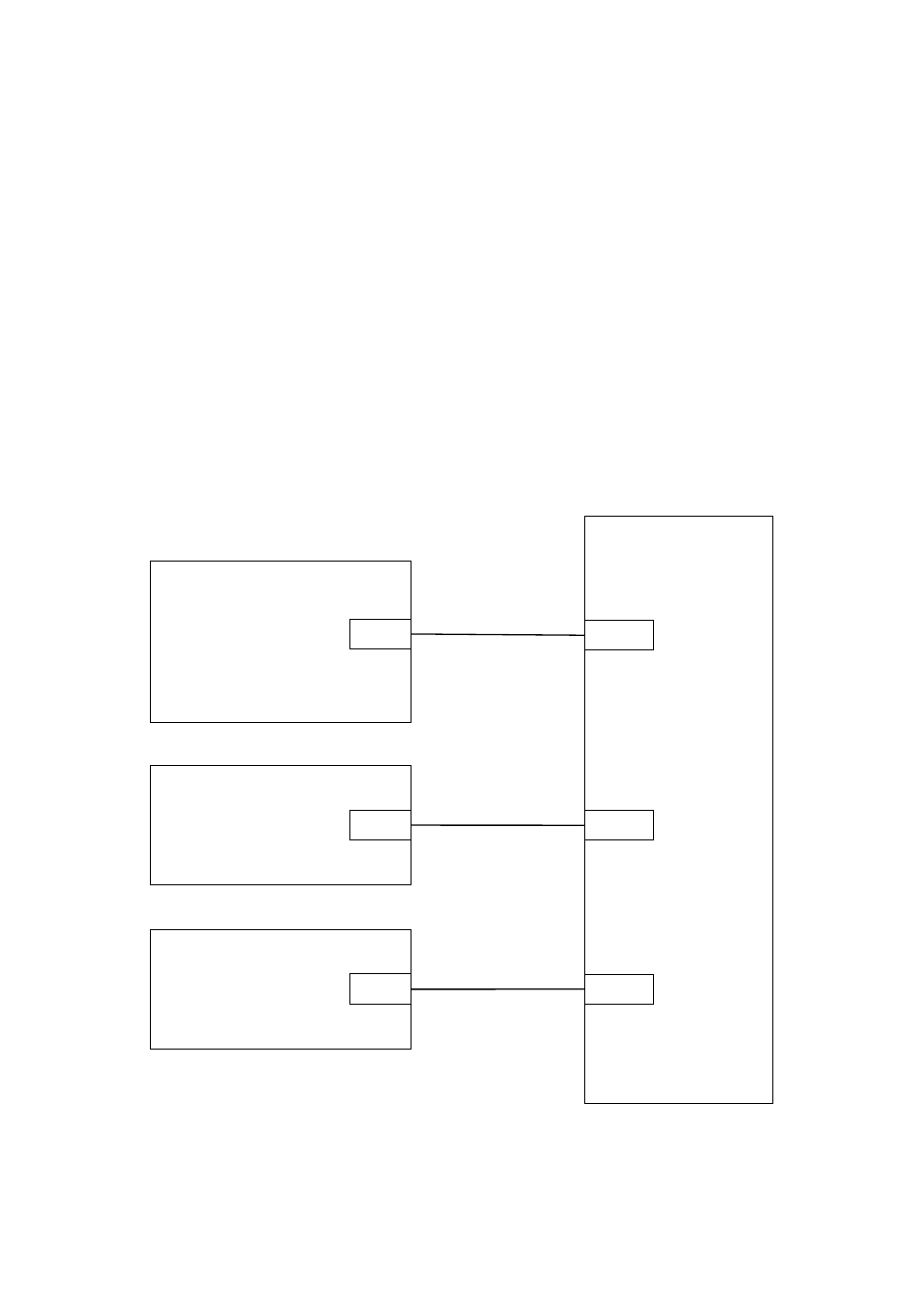

The following figure indicates the connection of NCW-3DHPN as an example.
The NCW-3DHPN is connected to the controller (SIMATIC S7-1500 1511-1 PN) through the EtherNet switch
(SCALANCE X204IRT 204-0BA00-2BA3) as shown below.
Programming Terminal
SIMATIC S7-1500
ABSOCODER Converter
(Windows PC)
Port
1511-1 PN
Port
IP: 192.168.0.1
NCW-3DHPN
Port
IP: 192.168.0.100
(SCALANCE X204IRT)
Port
Port
PROFINET
network
Port
33
Ethernet switch
