14-4. Restrictions

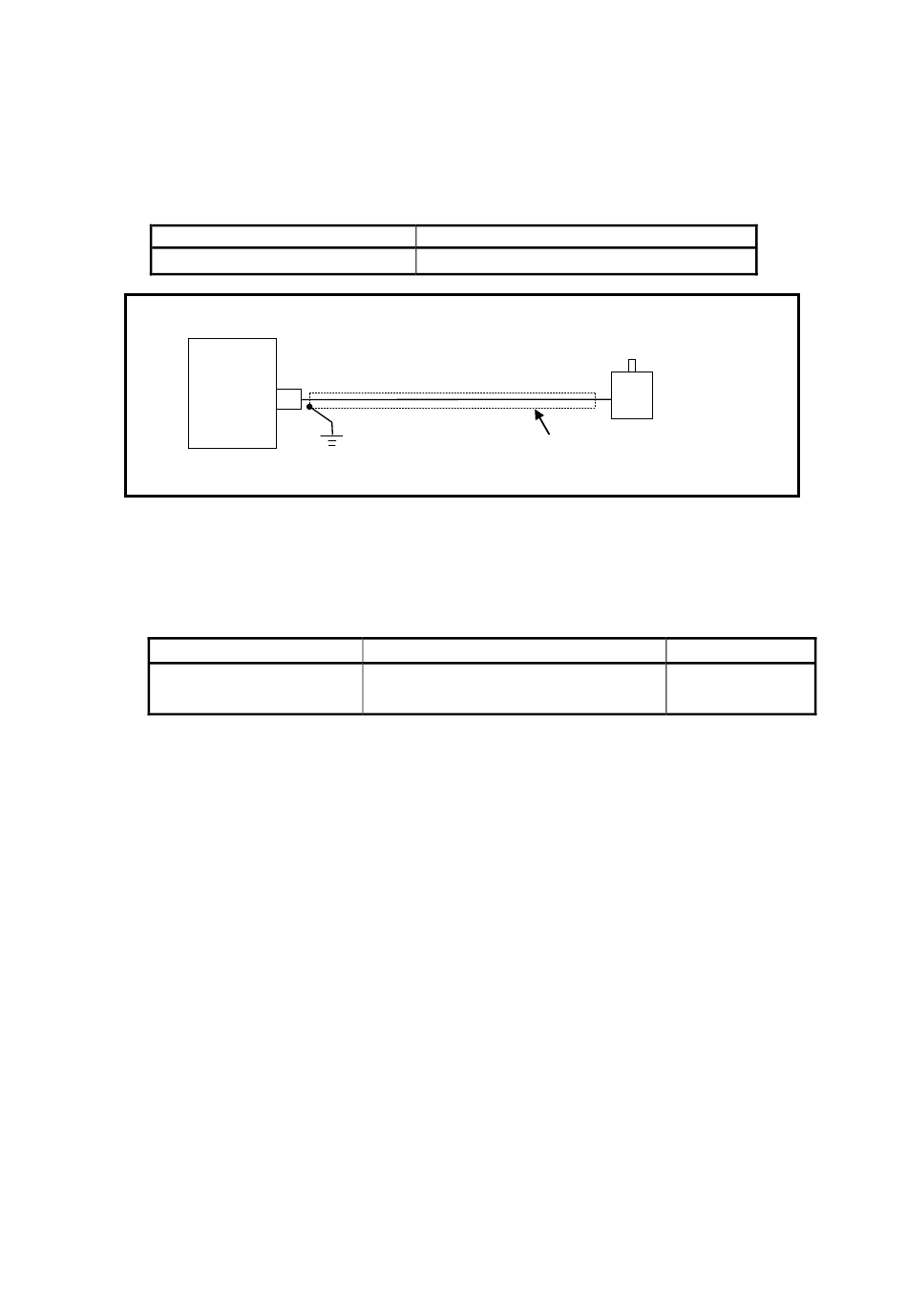

●Sensor cable
If a 30m or longer sensor cable is to be used, pass the sensor cable through a metal duct or cover the sensor
cable with the shielded zippertubing and ground the tube shield.
Zippertubing
Converter
[Reference]
It might be improved when the clamp filter is installed to the power supply or sensor cable when it operates
faultily by the influence from the peripheral devices.
Clamp Filter
Mounting location
- Power supply cable
- Sensor cable
Model
MTFS 20φ
Sensor cable
GND
(Ground resistance
of 100 ohm or less)
ZCAT2032-0930 (inner dimensions:φ9)
Manufacturer
ZIPPERTUBING (JAPAN), LTD.
ABSOCODER sensor
Zippertubing
(Required if the cable is 30m or longer)
Clamp filter model
63
Manufacturer
TDK
