Set the network configuration of the PLC and switching hub.

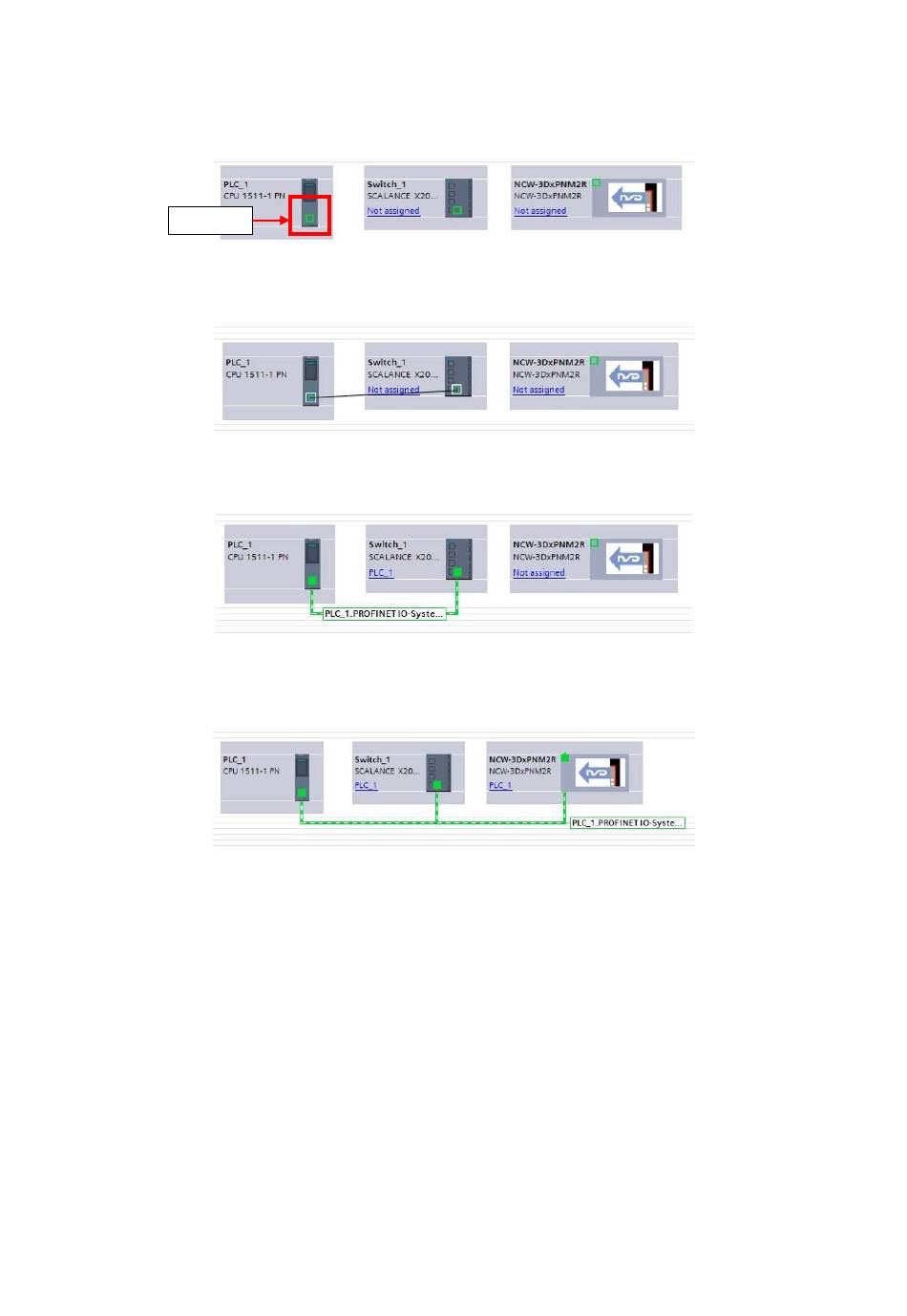

1. Select the PLC interface (indicated by green rectangle).
Interface
2. Drag the PLC interface to the switching hub interface to connect. A line appears when dragging.
3. PROFINET IO-System is configured between PLC and switching hub after releasing the drag.
4. PROFINET IO-System is configured by connecting the line between NCW-3DHPN and switching hub
by following the procedure 1 to 3.
