NSD ABSOCODER NCW-3DHPNM2R Specifications & Instruction Manual page 31

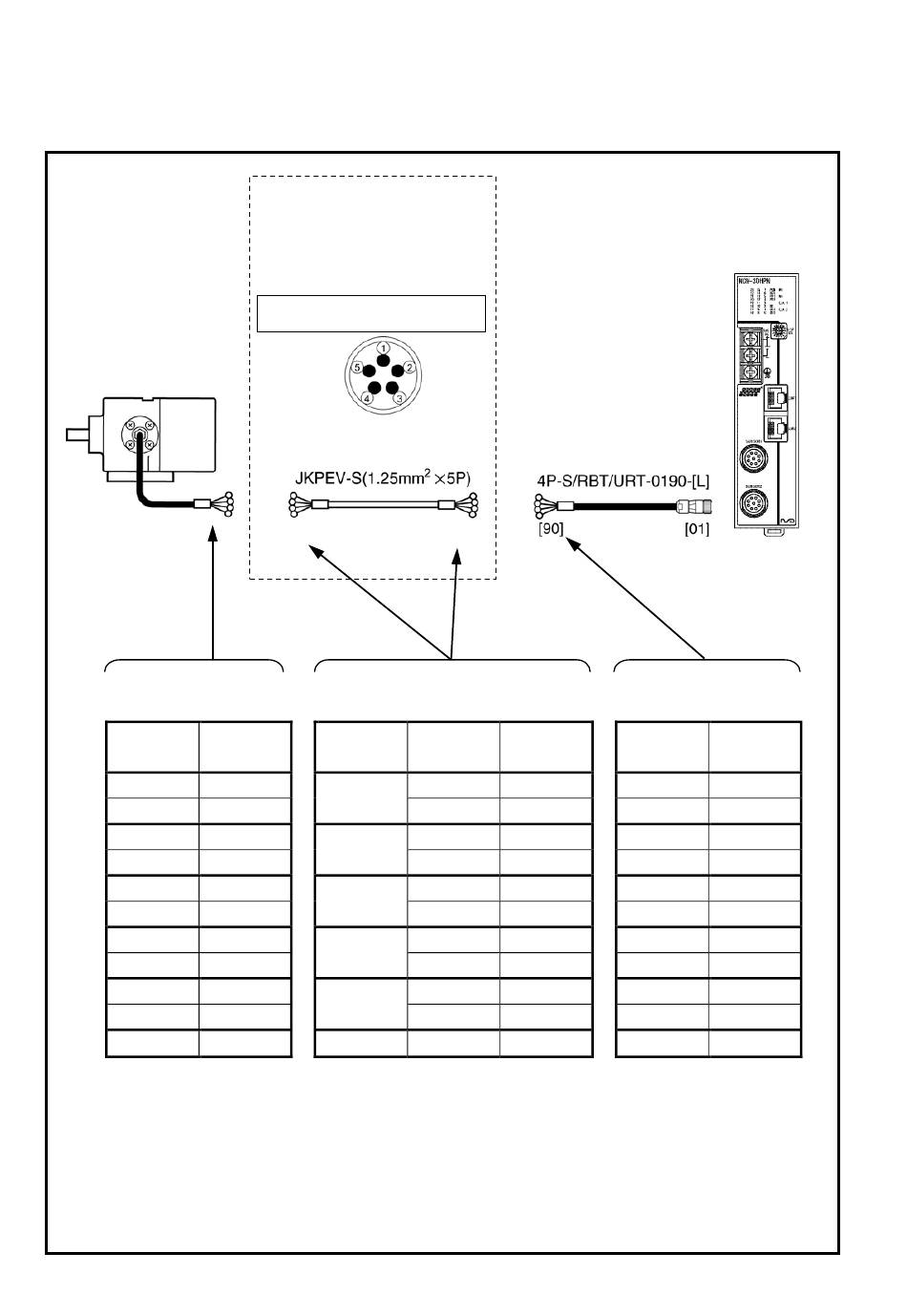

● In the case of using the commercially available cable (JKPEV-S 1.25mm2×5P) and connecting with
crimping terminals
ABSOCODER sensor
Crimping
terminal
(R1.25-4)
ABSOCODER sensor
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
－COS＋
Orange
－COS－
Yellow
Green OUT1＋
Blue OUT1－
Violet OUT2＋
Gray OUT2－
－
－
Shield Shield
Cautions for the connection by the crimping terminal
1: The wire No. of JKPEV-S cable is printed on the surface of the white wire.
2: Unused wires of JKPEV-S cable should be severed at both ends.
3: Twist the signal wire for preventing noises.
Combinations of the twist are following:
SIN+ and SIN－, －COS+ and －COS－, OUT1+ and OUT1－, OUT2＋ and OUT2－
4: The shield wire shouldn't be grounded.
Please install the crimping
terminals by customers
JKPEV-S Cable cross section
Commercially available cable
Crimping terminal
(R1.25-4)
JKPEV-S cable
Wire No. and wire color
Wire
No.(pair)
1
2
3
4
－
5
－
(Not used)
NSD special cable
Crimping
terminal
(R1.25-4)
Signal
Wire color
names
SIN＋
White
SIN－
Black
－COS＋
White
－COS－
Black
White OUT1＋
OUT1－
Black
White OUT2＋
Black OUT2－
－
White
－
Black
Shield Shield
23
Converter
NSD special cable
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
－COS＋
Orange
－COS－
Yellow
Green OUT1＋
Blue OUT1－
Violet OUT2＋
Gray OUT2－
－ －
－ －
Shield Shield
