Light Sky LUNAR MAX User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

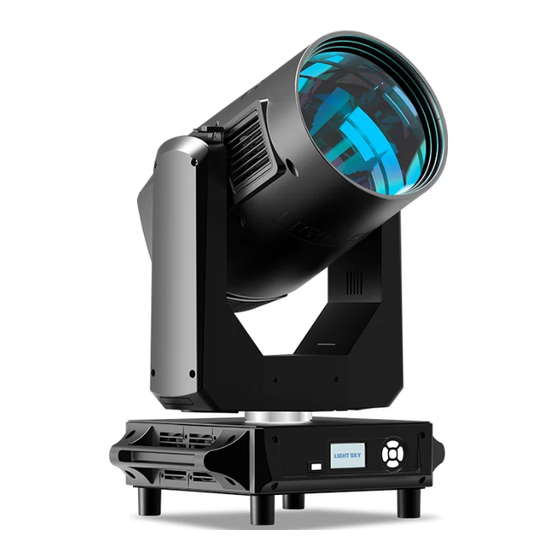

LUNAR MAX
n
E-mail:
Address: No. 43, Yunfeng Road, Xiuquan Street,
Huadu District, Guangzhou, China

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUNAR MAX and is the answer not in the manual?

Questions and answers

Related Manuals for Light Sky LUNAR MAX

Summary of Contents for Light Sky LUNAR MAX

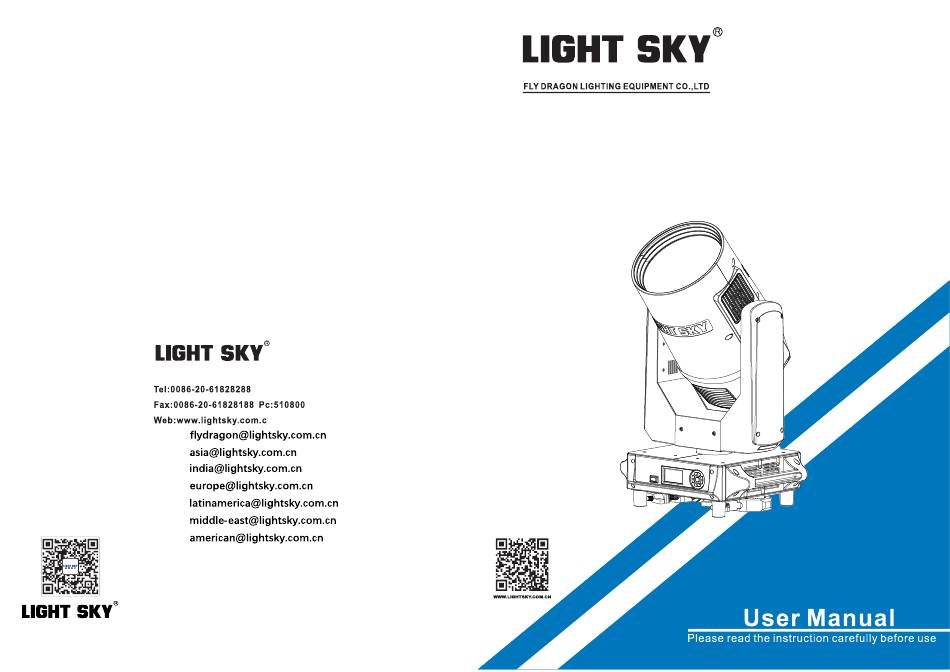

  • Page 1 LUNAR MAX E-mail: Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China...
  • Page 2 CONTENTS ....................2 1. Safety Instructions ...................5 2. Technical Specifications ..................7 2.1. Attachment And Size .....................8 3. Color/Gobo/Prism ....................9 4. Connection and control .................9 4.1. Power supply connection ..................10 4.2. DMX 512 Connection ....................11 4.3. Control Panel ....................11 5. How To Set The Unit ....................11 5.1.
  • Page 3 1.Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:...
  • Page 4  The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces.  Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.  Before operation, ensure that you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product’s specification label.
  • Page 5  Disconnect this product from its power source before servicing.  Do use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on.   Do not operate this product if you see damage on the housing, shields, or cables. Have the damaged parts replaced by an authorized technician at once.
  • Page 6 2.Technical Specifications OPTICAL - optics- Light source: OSRAM SIRIUS HRI® 480 SL - Lamp angle: 1.6° (φ6mm white round hole) / 1.2° (φ4.5mm white round hole) / 0.8° (φ3mm white round hole), flexible switching. - Optical lens: diameter 200mm - Color temperature: 6500K - Color rendering index: Ra≥80 - Light degree: 880000 lux @10M COLOR...
  • Page 7 POWER - Input voltage rangr: AC100-240V 50/60Hz - Maximum power comsumption: 535W - Power factor: 0.987 SIZE & WEIGHT - Size: 380mm×300mm×623mm - Standard carton packing (Default -1sets) :450mm×390mm×765mm - N.W: 22.5 Kg G.W: 26.0Kg - Flycase (option-2 sets) :810mm×530mm×845mm - N.W: 45.0 Kg G.W: 84.5 Kg OTHERS - IP rate: IP20...
  • Page 8 2.1.Attachment And Size Attachment contents-Fig.1 Certificate of conformity Size-Fig.2 φ200...
  • Page 9 3.Color/Gobo/Prism Static gobo wheel Color disk Magnet Dark green Aquamarine Green Orange Light purple Front Dark red Dark red Pink White Dark blue Blue CT01 CT02 white 6 Prism 8 Prism 24 Prism 48 Prism...
  • Page 10 4.Connection and control 4.1.Power supply connection Blue white headed version POWER END POWER The N terminal The ground wire is is connected with connected to the the blue line. yellow-green wire The L terminal is connected with the brown line. Parallel socket version POWER POWER END...
  • Page 11 4.2.DMX 512 Connection DMX512 in SIGNAL END DMX-input DMX - output - Shield 1 - Shield - Signal (-) 2 - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected 1.
  • Page 12 4.3.Control Panel 1.Display: To show the various menus and the selected function. 2.USB:Used to update software versions 3.Button： OK confirmation key DOWN To the left To the right 5.How To Set The Unit 5.1.Main Function The lamp is powered on. When the system initialization and lamp reset are completed, and the standby interface is displayed on the display screen, press OK to enter the preset menu interface.
  • Page 13 Main menu I menu II menu III menu Ⅳ menu DMX Address → Address:001-512 Power:****(h) Totel time Lamp on:****(h) Total:****(h) Lamp hours → Lamp open:****(h) Temperature → Board:000.0 RDM UID → Undistributed L_Fan1:0000 RPM L_Fan2:0000 RPM Fan speed/Voltag → Fan1:0000 RPM Fan2:0000 RPM 1.Colour (***) 2.Shutter (***)
  • Page 14 Main menu I menu II menu III menu Ⅳ menu 7.PrismMacro (***) 8.Frost (***) Channel control → 9.Focus (***) 10.Pan (***) 11.Pan Fine (***) 12.Tilt (***) 13.Tilt Fine (***) Manual control → 14.Function (***) 15.Reset (***) 16.LampControl (***) system reset Pan/Tilt reset Reset →...
  • Page 15 ① DMX Address Enter the preset menu interface，select function，Press the OK key to enter the lower menu, and use the up/down key to set the lamp address Code (001~497), the default address code of the lamp is 001. After setting, press OK to confirm and return to the upper menu。 ①...
  • Page 16 ② DMX live Select the DMX live function and press the OK key to enter the lower menu to view the channel information of the equipment in the current channel mode. Press the OK key or the left/right key to return to the previous menu.
  • Page 17 ② Display Settings Select the Display Settings function, press the OK key to enter the lower menu, and use the up/down keys to select the③menu: Language, backlight, screen rotation, backlight flashing, and exit. Press the OK key to enter the lower menu, or press the left key to return to the upper menu. ③...
  • Page 18 ② Reset Select the Reset function, press the OK key to enter the lower menu, and use the up/down keys to select: system reset (i.e. machine reset), horizontal and vertical reset, head motor reset, and exit. Press the OK key to confirm and execute the selected reset command, and return to the upper menu. ②...
  • Page 19 ② Factory Setup Select the Factory Setup function, press OK key to enter the sub-menu, you can use the up/down key to select: factory default, time clear, developer, software upgrade, exit, press OK key to enter the sub-menu. Note that the functions under this menu require a password to proceed to the next step. ①...
  • Page 20 5.2 . Channel Setting Enter the MENU menu, select the personality setting function, select the channel mode, press OK button to confirm, you can use the up and down key to select: 16 channel (default), 14 channel, 16 PLUS channel, press OK key to select confirm and return to the next level menu. 5.3 .
  • Page 21 5.4.DMX 512 Configuration Please control the fixture by referring to the configurations below 16CH Channel Percentage Function Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green...
  • Page 22 Channel Percentage Function Note 64-67 25.0-26.2 Gobo16 68-71 26.6-27.8 Gobo17 72-81 28.2-31.7 Gobo1 Shake Slow-Fast Speed 82-92 32.1-36.0 Gobo2 Shake Slow-Fast Speed 93-103 36.4-40.3 Gobo3 Shake Slow-Fast Speed 104-114 40.7-44.7 Gobo4 Shake Slow-Fast Speed 115-124 45.0-48.6 Gobo5 Shake Slow-Fast Speed 125-135 49.0-52.9 Gobo6 Shake Slow-Fast Speed...
  • Page 23 Channel Percentage Function Note 0-255 0-100 Frost 0-255 0-100 Focus 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 TILT 0-255 0-100 TILT Fine 0-255 0-100 bare Reset 0-25 Unused Range 26-76 Effects Reset 77-127 PAN/TITL Reset 128-255 Complete Reset Lamp Control 0-25 Unused Range 26-100...
  • Page 24 14CH Channel Percentage Function Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51 18.4-20.0 Light Green+Lavender 52-55 20.4-21.6...
  • Page 25 Channel Percentage Function Note 94-101 40.7-44.7 Gobo4 Shake Slow-Fast Speed 102-108 45.0-48.6 Gobo5 Shake Slow-Fast Speed 109-116 49.0-52.9 Gobo6 Shake Slow-Fast Speed 117-123 53.3-57.2 Gobo7 Shake Slow-Fast Speed 124-131 57.6-61.5 Gobo8 Shake Slow-Fast Speed 132-138 61.9-65.4 Gobo9 Shake Slow-Fast Speed 139-146 65.8-69.8 Gobo10 Shake Slow-Fast Speed...
  • Page 26 Channel Percentage Function Note 0-255 0-100 Pan Fine 0-255 0-100 TILT 0-255 0-100 TILT Fine Function 0-25 0-9.8 Unused Range 26-30 10.2-11.8 Effects Reset 31-35 12.2-13.7 PAN/TITL Reset 36-40 14.4-15.7 Complete Reset 41-180 16.1-70.6 Unused Range 181-200 71.0-78.4 Lamp OFF 201-220 78.8-86.3 Unused Range...
  • Page 27 16CH PLUS Channel Percentage Function Note Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29 10.2-11.4 Aquamarine 30-34 11.8-13.3 Aquamarine+Green 35-38 13.7-14.9 Green 39-42 15.3-16.5 Green+Light Green 43-46 16.9-18.0 Light Green 47-51 18.4-20.0 Light Green+Lavender 52-55...
  • Page 28 Channel Percentage Function Note 87-93 Gobo3 Shake Slow-Fast Speed 94-101 Gobo4 Shake Slow-Fast Speed 102-108 Gobo5 Shake Slow-Fast Speed 109-116 Gobo6 Shake Slow-Fast Speed 117-123 Gobo7 Shake Slow-Fast Speed 124-131 Gobo8 Shake Slow-Fast Speed 132-138 Gobo9 Shake Slow-Fast Speed 139-146 Gobo10 Shake Slow-Fast Speed 147-153 Gobo11 Shake Slow-Fast Speed...
  • Page 29 Channel Percentage Function Note 0-255 0-100 Frost 0-255 0-100 Focus 0-255 0-100 0-255 0-100 Pan Fine 0-255 0-100 TILT 0-255 0-100 TILT Fine 0-255 0-100 bare Reset 0-25 Unused Range 26-76 Effects Reset 77-127 PAN/TITL Reset 128-255 Complete Reset Lamp Control 0-25 Unused Range 26-100...
  • Page 30 6.Electrical Connection Diagram -29-...
  • Page 31 The position of each fan of the fixture: HeadFan4 HeadFan3 Head blower1 Head blower2 HeadFan2 HeadFan1 BaseFan2 BaseFan1 7.Troubleshooting PAN ERROR: - Check whether there are other items interfering with the operation and reset of the X axis within the operation range. - Check whether the connecting wire of the X-axis magnetic encoder is in bad contact or disconnected.
  • Page 32 PAN ERROR: - Check whether there are other items interfering with the operation and reset of the X axis within the operation range. - Check whether the connecting wire of the X-axis magnetic encoder is in bad contact or disconnected. - Check whether the connecting wire of the X-axis motor is in bad contact or disconnected.
  • Page 33 COLOUR ERROR: - Check whether there are other items within the operating range of the color disk to interfere with its operation and reset. - Check whether the connecting wire of the magnetic sensing plate of the color disk is in bad contact or disconnected.
  • Page 34 PRISMROT ERROR: - Check whether the prism rotating motor wire is loose or falling off. - Check whether the relevant circuit of the rotating drive plate of the prism is damaged. - Check whether the prism rotating motor is damaged. - Check the display board itself for damage.
  • Page 35 IN FAN ERROR: - Check whether the inlet fan related wires are loose or fall off. - Check whether the relevant circuit of the drive plate of the intake fan is damaged. - Check whether the intake fan itself is damaged. - Check the display board itself for damage.
  • Page 36 8.Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
