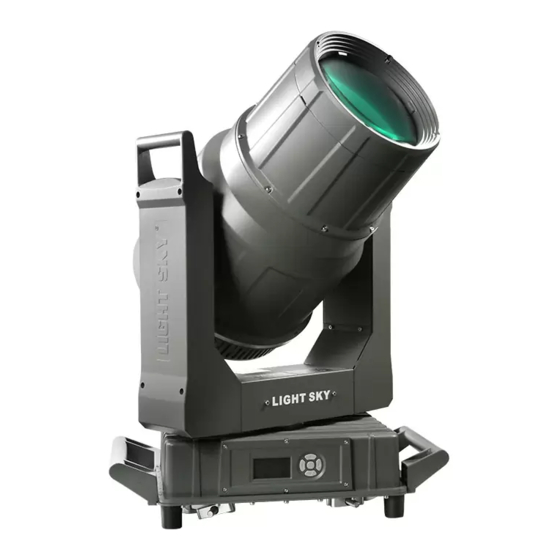

- Page 1 SHARK 450 Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Safety information ....................2 Technical information ....................5 ..................8 Attachment and body size ..................9 Installation and connecting Control panel ......................13 Menu setting ........................14 7 Channel function........................18 8 Circuit connecting diagram ....................21 9 Cleaning and maintenances .....................22 ....................22 10. Troubleshooting .............24 11. Duty exonerative and copyright protectio Congratulations on choosing our company product! We thank you for your custom. -
Page 3: Safety Information
SAFETY INFORMATION Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this manual. The following symbols are used to identify important safety information on the product and in this manual: Important:... - Page 4 The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces. Be sure that no ventilation slots is blocked, otherwise the unit will be overheated. Before operation, ensure that you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product’s specification label.
- Page 5 Disconnect this product from its power source before servicing. Do use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on. Do not operate this product if you see damage on the housing, shields, or cables. Have the damaged parts replaced by an authorized technician at once.
-
Page 6: Technical Information
TECHNICAL INFORMATION OPTICS - Light source: NSL- 450 USHIO LIGHT SKY - Optical angle: 1.8 ° - Optical lens: coated with high anti reflective film, φ190mm - Color temperature: 6900K - Color rendering index: Ra≥72 - Illuminance: 525000 lux@10 m... - Page 7 POWER SUPPLY AND POWEr - Input voltage: AC 100-240V 50/60Hz - Maximum power: 650W - Power factor: 0.985 - Maximum current of the lamp: 3.0A/220V, 6.5A/100V DIMENSION - Product size: 509 × 320 × 742mm - N.W.: 34.5kg - Carton packaging (default): 810 × 580 × 395mm - G.W.: 39kg - Flycase Size (1 sets)：620 640 825 mm ×...
- Page 8 1 1 1 1 1 1 Color wheel Static gobo wheel CMY color mixing system Prism wheel 2 Prism wheel 1...
-
Page 9: Attachment And Body Size
illuminationdiagram Distance(m) 1.8° 1.8° Lux 233000 525000 131000 61500 22400 Diameter(m) 0.34 0.51 0.68 1.03 ATTACHMENT AND BODY SIZE... -
Page 10: Installation And Connecting
INSTALLATION AND CONNECTING Safety rope Installing the projector- Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the projector and then connected to the base handle. - Page 11 power in power end The ground wire is connected to the yellow-green wire The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The stage lighting delivers a three-core waterproof plug. ●...
- Page 12 DMX512 in signal end DMX - output DMX-input 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected all the projectors are together The projector dn’t touch each other or plinth).
- Page 13 -12-...
-
Page 14: Control Panel
CONTROL PANEL D isp l ay ENTER Up arrowhead : page up Down arrowhead : page down RIGHT LEFT Left arrowhead : reduce Right arrowhead : increase Enter : OK function Exit : in the choice screen DOWN ● Press the switch.The projector starts resetting the effects. At the same time,the following information scrolls on the display （please refer to the actual material) DMX:... -
Page 15: Menu Setting
Ⅰ m e n u Ⅱ menu Ⅲ menu Main menu Address :001-5 1 2 → DMX Address P o w er::****(h) Tot e l T ime → L a m p O N::** * * ( h ) T o t a l : * * * * ( h ) Lamp h o u r s →... - Page 16 Ⅰ menu Ⅱ menu Ⅲ menu Main menu O F F A u t o la m p on → OF F → → Pa n i nv e r t P / T i nv e r t O F F →...
- Page 17 Ⅰ menu Main menu Ⅱ menu Ⅲ menu → STEP *** Test P/T → Test effect STEP *** → → Test → Test all STEP *** Return(ESC) Return(ESC) Error list Keep Clean error → Clean 000-255 Tilt 000-255 Dimmer1 000-255 Dimmer2 000-255 Focus...
- Page 18 Ⅰ menu Ⅱ menu Ⅲ menu Main menu → → Fan Speed To Lamp Factory Return(ESC) Service Standard mode → F an m od e → 3000-4000M 4000-5500M R e tu rn (E SC ) Lamp → English Language → Chinese Normal Reversal...
-
Page 19: Channel Function
C H A N N E L F U N C T I O N(V1.0) Percentage Function Channel 0-255 0-100 Cyan 0-255 0-100 Magenta 0-255 0-100 Yellow Colour 0-1.56 White 1.96-3.14 White+Red 9-12 3.53-4.71 Red 13-17 5.10-6.67 Red+Orange 18-21 7.06-8.24 Orange 22-25 8.63-9.80 Orange+Aquamarine 26-29... - Page 20 Percentage Channel Function Strobe 0-1.2 Closed 4-103 1.6-40.4 Slow-Fast Strobe 104-107 40.8-42.0 Open Opening pulses in sequences from slow fast 108-157 42.4-61.6 Closing pulses in sequences from fast slow 158-207 62.0-81.2 208-212 81.6-83.1 Open 213-251 83.5-98.4 Random Slow-Fast Strobe 252-255 99.8-100 Open 0-255...
- Page 21 Channel Percentage Function Prism 0-63 0-24.7 Unused Range 64-127 25-49.8 Prism1 128-191 50.2-74.9 Prism2 192-255 75.3-100 Prism1+Prism2 Prism Rotation Unused Range 1-63 0.4-24.7 Angular linear regulation Selection of three prism effects: setting prism (prism 1, prism 2 or prism 1+2) in channel 5; 64-127 25.1-49.8 CCW，Fast →...
-
Page 22: Circuit Connecting Diagram
-21-... -
Page 23: Cleaning And Maintenances
CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. - Page 24 ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging.
-
Page 25: Duty Exonerative And Copyright Protectio
DUTY EXONERATIVE AND COPYRIGHT PROTECTION ◇The lamp belongs to consumption products that is not guarantee to keep it in good repair. ◇Any products broken that didn't according to the instruction is not guarantee to keep it in good repair. ◇The commentary for all the instruction belongs to the supplier in final. ◇No authorize can't copy.
