1.8 V, 2.5 V and 3.3 V operation is supported
■
Two user LEDs, an RGB LED, two user buttons, and a reset button
■
A potentiometer
■
One Mode selection button and one Status LED for KitProg3
■
A microSD Card holder
■

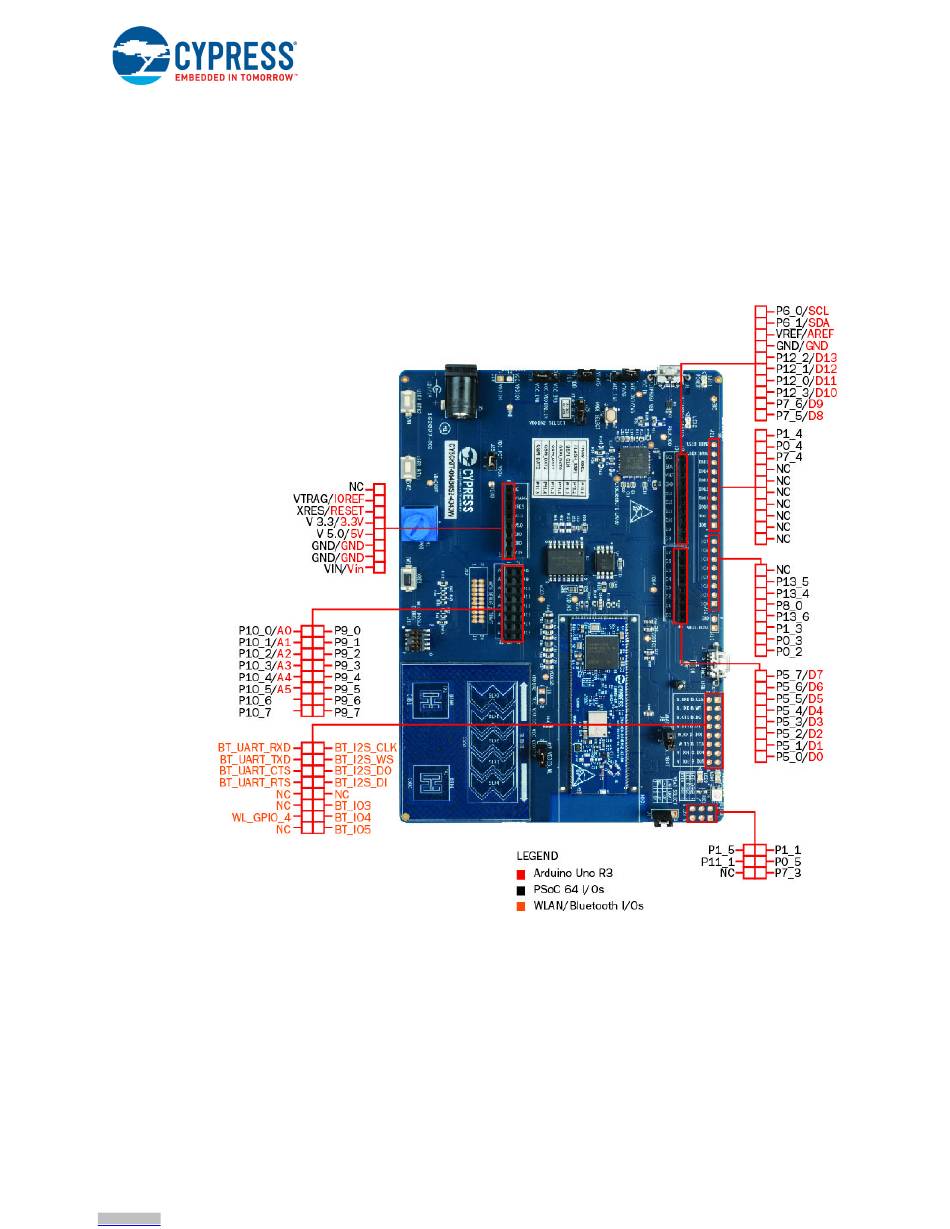

Figure 1-2 shows the pinout of the Board.
Figure 1-2. PSoC 64 "Secure Boot" Wi-Fi BT Pioneer Board Pinout
