ASROCK Rack 1U4L4E-EGS/2T Quick Installation Manual

*15G065278000AK*
P/N: 15G065278000AR V1.0
Quick Installation Guide
1U4L4E-EGS/2T
The User's Manual is available for download from the ASRock Rack's official website at http://
www.asrockrack.com.
Take note of the following precautions before installing the components or change any settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the components due to static electricity, NEVER place the components
directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety
grounded object before installation.
3. Hold components by the edges and do not touch the ICs.
4. Whenever uninstalling any components, place them on a grounded anti-static pad or in the bag
that comes with the components.
5. When placing screws into the screw holes to secure any components to the barebone, please
do not over-tighten the screws! Doing so may damage both components and barebone.

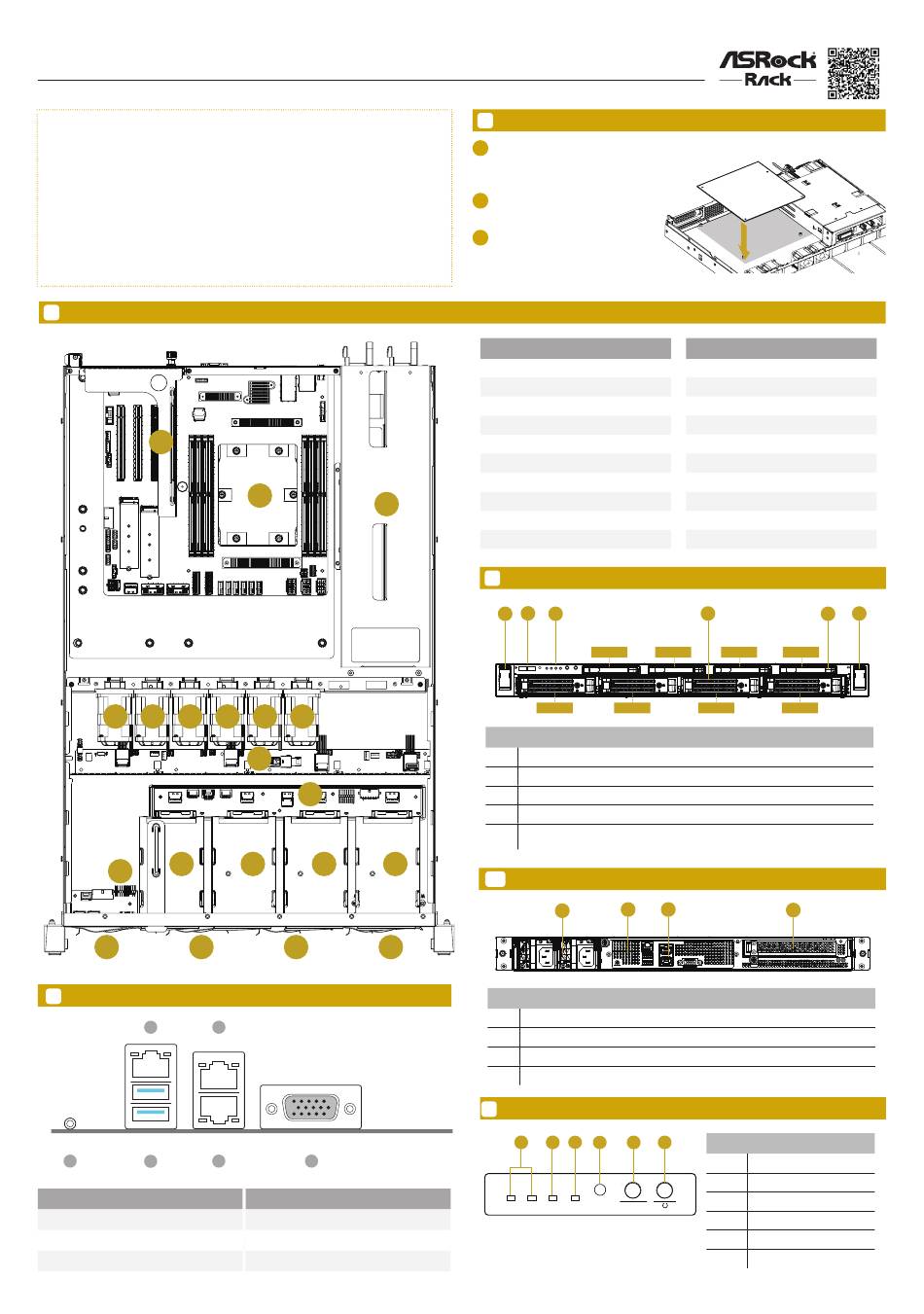

2 Top View
1
5 6
4
12
16
17 18
I/O Panel
5
3
1 2
No. Description
1 UID Switch (UID1)
2 USB 3.2 Gen1 Ports (USB3_1_2)
3 IPMI LAN Header (IPMI_LAN1)
2
3
7 8 9
10
11
14
13 15
19 20
5
4 6
No. Description
4 10G LAN RJ-45 Port (LAN1)
5 10G LAN RJ-45 Port (LAN2)
6 VGA Port (VGA1)
1 Replace Server Board
Carefully unplug all cables and release
1
thumbscrews on the ser ver board to
remove them from the barebone.
Align the replaced server board with the
2
mounting holes
A f f i x t he screws clock w ise into t he
3
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
No. From
1 Riser Card (PCIe x16)
2 Serverboard
3 2 x Power Supply Units (PSU)
4 System Fan 6
5 System Fan 5
6 System Fan 4
7 System Fan 3
8 System Fan 2
9 System Fan 1
10 3.5" HDD Backplane Board
3 Front Panel
1 2 3
HDD0
HDD4 HDD5
No. Description
1 Thumbscrew Covers
2 2 x Type-A USB2.0 Ports
3 Control Panel
4 4 x 3.5" Hot-Swap HDD Trays (3.5" SATA HDD)
4 x 2.5" Hot-Swap HDD Trays
5
(2.5" 7mm NVME / SATA SSD / SAS HDD)
4 Rear Panel
2
1
No. Description
1 2 x Power Supply Units (PSU)
2 Rear Vent
3 I/O Shield
4 PCI Express Slot (for the riser card)
Control Panel
6
1 2 3 4 5
RST
L1 UID
L2 HDD SYS
www.asrockrack.com
No. From
11 2.5" HDD Backplane Board
12 2.5" HDD Tray (HDD0) (Hot-swapable)
13 2.5" HDD Tray (HDD1) (Hot-swapable)
14 2.5" HDD Tray (HDD2) (Hot-swapable)
15 2.5" HDD Tray (HDD3) (Hot-swapable)
16 Front Panel Board
17 3.5" HDD Tray (HDD4) (Hot-swapable)
18 3.5" HDD Tray (HDD5) (Hot-swapable)
19 3.5" HDD Tray (HDD6) (Hot-swapable)
20 3.5" HDD Tray (HDD7) (Hot-swapable)
4 5
HDD1 HDD2 HDD3
HDD6 HDD7
3
4
6
No. Description
1 LAN1 and LAN2 Activity LED
2 HDD Status LED
3 System Status LED
4 System Reset Button
5 ID Button and LED
6 Power Button and LED
1
