ASROCK Rack 1U2N2G-B550 Quick Installation Manual

Quick Installation Guide
1U2N2G-B550

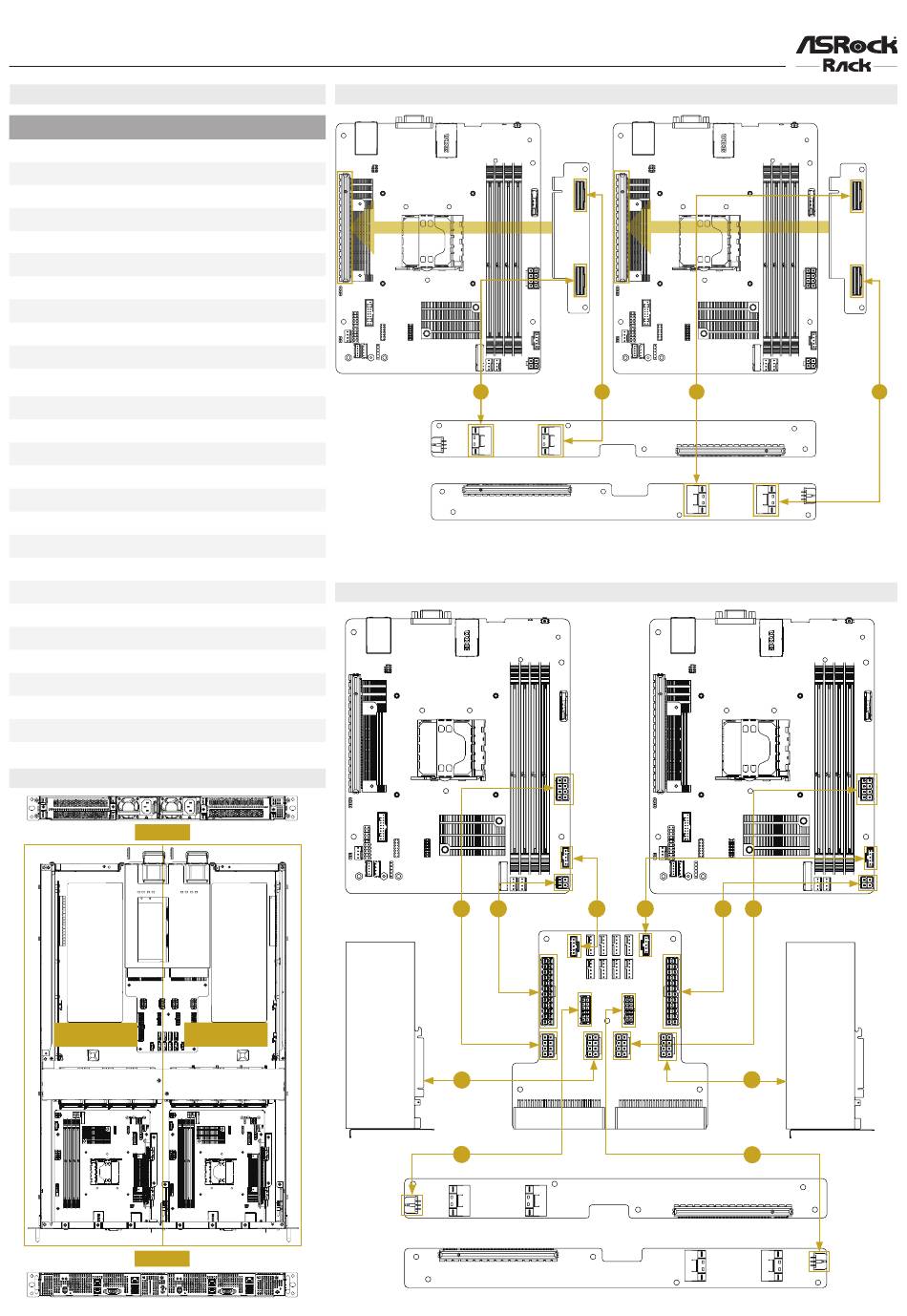

Cable List
No. Description
1 SLIMLINE X8 R/A to S/T Cable; L=480mm (Node2)
2 SLIMLINE X8 R/A to S/T Cable; L=480mm (Node2)
3 SLIMLINE X8 R/A to S/T Cable; L=480mm (Node1)
4 SLIMLINE X8 R/A to S/T Cable; L=480mm (Node1)
5 POWER 2*4P 4.2PITCH Cable; L=820mm (Node2)
6 PWR 4P to 24P 4.2PITCH Cable; L=715mm (Node2)
7 PMBUS PH=2.54 1*5P Cable; L=855mm (Node2)
8 PMBUS PH=2.54 1*5P Cable; L=855mm (Node1)
9 PWR 4P to 24P 4.2PITCH Cable; L=715mm (Node1)
10 POWER 2*4P 4.2PITCH Cable; L=820mm (Node1)
11 PWR GPU 6+2P*2 to 2*4P; L=800mm (Node2)
12 PWR GPU 6+2P*2 to 2*4P; L=800mm (Node1)
13 MICRO HI 2*3P to PH3.0 2*6P; L=705mm (Node2)
14 MICRO HI 2*3P to PH3.0 2*6P; L=705mm (Node1)
15 PWR BUTTON 1*5P 2.54 Cable; L=310mm (Node2)
16 PWR BUTTON 1*5P 2.54 Cable; L=310mm (Node1)
17 LED PH 2.0 to 2.54 1*2P Cable; L=560mm (Node2)
18 LED PH 2.0 to 2.54 1*2P Cable; L=560mm (Node1)
19 SMBUS 1*4P 2.5 HSG Cable; L=430mm
20 Fan Cable; L=250mm (Fan8 / Node2)
21 Fan Cable; L=250mm (Fan7 / Node2)
22 Fan Cable; L=250mm (Fan6 / Node2)
23 Fan Cable; L=250mm (Fan5 / Node2)
24 Fan Cable; L=250mm (Fan4 / Node1)
25 Fan Cable; L=250mm (Fan3 / Node1)
26 Fan Cable; L=250mm (Fan2 / Node1)
27 Fan Cable; L=250mm (Fan1 / Node1)
Chassis Node
REAR
NODE1
FRONT
Slimline Cable Connections
Server Board
Power / PMBus Cable Connections
Server Board
NODE2
1
5 6
11
GPU Card
13
Riser Card (Slimline)
2 3
7 8 9
Power Distribution Board
Riser Card (Slimline & PCIE)
Riser Card (Slimline & PCIE)
Riser Card (Slimline)
Server Board
4
Riser Card (Slimline & PCIE)
Riser Card (Slimline & PCIE)
Server Board
10
12
GPU Card
14
