D1749NTD4U-4Q
D1749NTD4U-4T4O
User Manual
Version 1.0
Published July 2023
Copyright©2023 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1749NTD4U-4Q and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Rack D1749NTD4U-4Q

Summary of Contents for ASROCK Rack D1749NTD4U-4Q

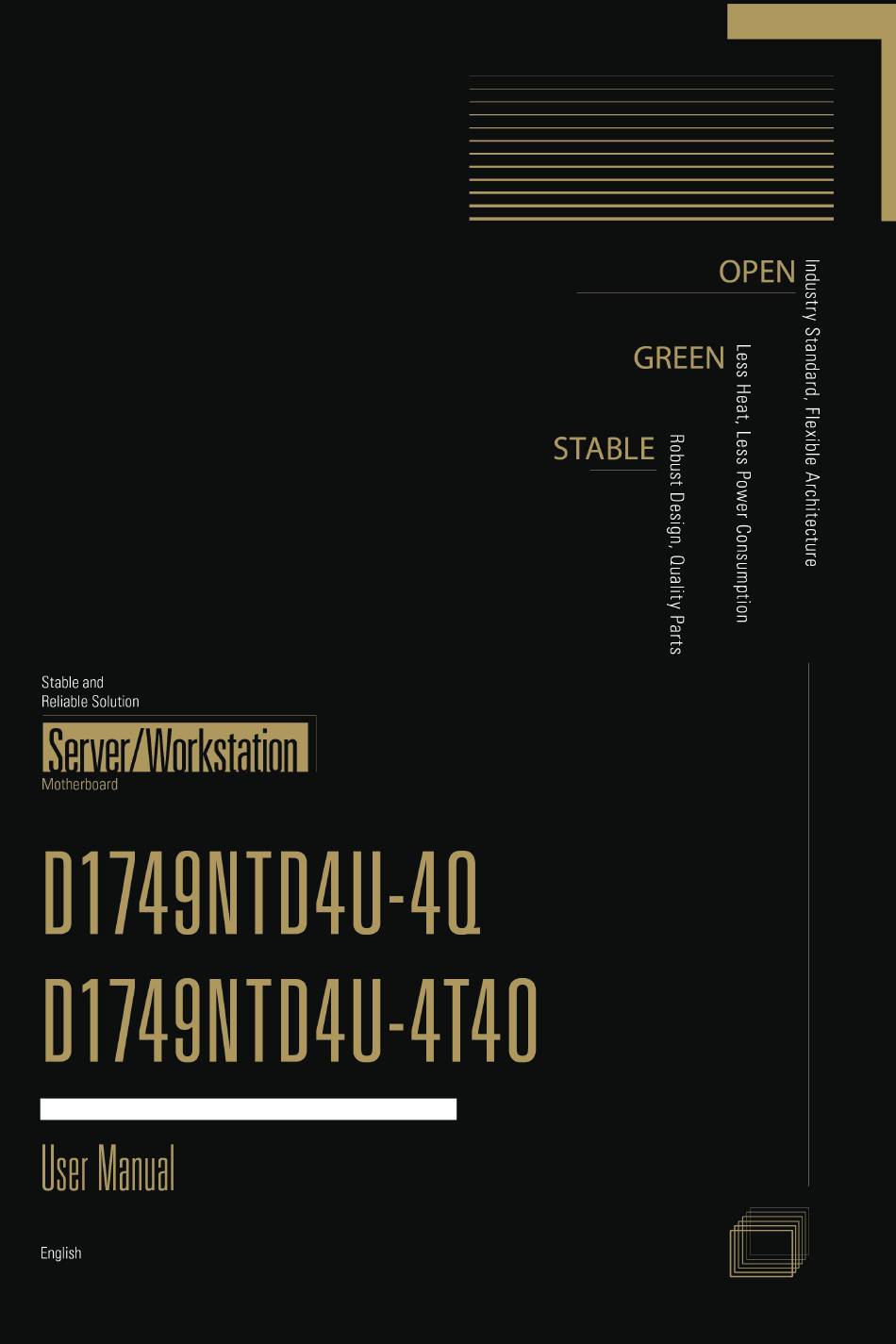

  • Page 1 D1749NTD4U-4Q D1749NTD4U-4T4O User Manual Version 1.0 Published July 2023 Copyright©2023 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of...
  • Page 3 INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING. LICENSE. Licensee has a license under Intel’s copyrights to reproduce Intel’s Software only in its unmodified and binary form, (with the accompanying documentation, the “Software”) for Licensee’s personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions: (a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree...
  • Page 4 U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S.
  • Page 5 ASRock Rack follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock Rack product is in line with global environmental regulations. In addition, ASRock Rack disclose the relevant in- formation based on regulation requirements.

  • Page 6: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installation of Memory Modules Expansion Slot (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 7 3.1.2 Navigation Keys Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 DRAM Configuration 3.3.3 Chipset Configuration 3.3.4 Storage Configuration 3.3.5 NVMe Configuration 3.3.6 ACPI Configuration 3.3.7 USB Configuration 3.3.8 Super IO Configuration 3.3.9 Serial Port Console Redirection 3.3.10 H/W Monitor 3.3.11 Intel SPS Configuration 3.3.12 Network Stack Configuration 3.3.13 Intel(R) VMD Technology...
  • Page 8 3.6.1 BMC Network Configuration 3.6.2 System Event Log 3.6.3 BMC Tools Event Logs Exit Screen Chapter 4 Software Support Download and Install Operating System Download and Install Software Drivers Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service...

  • Page 9: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com About this motherboard technical support, please visit the website for specific information http://www.asrockrack.com/support/...

  • Page 10: Specifications

    1.2 Specifications D1749NTD4U-4Q/D1749NTD4U-4T4O MB Physical Status Form Factor mATX Dimension 9.6'' x 9.6'' (24.4 cm x24.4 cm) Processor System Intel® Xeon® D-1749NT processor Socket Single Socket (FCBGA 2227) Thermal Design Up to 90W Power Chipset System on Chip System Memory...
  • Page 11 D1749NTD4U-4Q D1749NTD4U-4T4O Ethernet D1749NTD4U-4Q: Additional GbE Controller 4 SFP28 (25GbE) D1749NTD4U-4T4O: 4 SFP28 (10GbE) 4 RJ45 (10GbE) by Intel® X557-AT4 Graphics Controller ASPEED AST2500 : 1 DB15 (VGA), 1 header Rear Panel I/O UID Button/LED 1 UID button w/ LED...
  • Page 12 BIOS Type AMI UEFI BIOS; 512 Mb (64MB) SPI Flash ROM BIOS Features Plug and Play (PnP), ACPI 3.0 and above compliance wake up events, SMBIOS 3.2 and above, ASRock Rack Instant Flash Hardware Monitor Temperature CPU, MB Temperature sensing...
  • Page 13 D1749NTD4U-4Q D1749NTD4U-4T4O This motherboard supports Wake from on Board LAN. To use this function, please make sure that the “Wake on Magic Packet from power off state” is enabled in Device Manager > Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is enabled in UEFI SETUP UTILITY >...

  • Page 14: Unique Features

    . With this utility, you can press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 15: Motherboard Layout

    D1749NTD4U-4Q D1749NTD4U-4T4O 1.4 Motherboard Layout 24.4cm (9.6 in) UID1 BATTERY1 PSU_SMB1 FRNT_VGA1 SATAPWR1 ATX12V1 ATX12V2 ATX4PIN1 DDR4_B1 DDR4_B2 USB 3.2 DDR4_A1 IPMI Gen1 T: USB2 B: USB1 DDR4_A2 FAN5 FAN2 SFP28_2 SFP28_0 FAN6 FAN3 FAN4 SFP28_3 SFP28_1 FAN1 CPU_SINK1 PWM_CFG1...
  • Page 16 Description PSU SMBus (PSU_SMB1) Front VGA Header (FRNT_VGA1) SATA Power Connector (DC-IN Mode) (SATAPWR1)** ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) Micro-Fit Power Connector (ATX4PIN1)** 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)* 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)* System Fan Connector (FAN5) System Fan Connector (FAN2) System Fan Connector (FAN3)
  • Page 17 D1749NTD4U-4Q D1749NTD4U-4T4O Description BMC SMB Header (BMC_SMB1) Non Maskable Interrupt Button (NMI_BTN1) CPU PECI Mode Jumper (PECI1) Front LAN LED Connector (FRONT_LED_LAN1) LPC TPM Header (TPM1) Intelligent Platform Management Bus Header (IPMB1) M.2 Socket (M2_2) (Type 2280/22110) M.2 Socket (M2_1) (Type 2280/22110) *For DIMM installation and configuration instructions, please see p.16 (Installation of Memory Modules...

  • Page 18: Onboard Led Indicators

    1.5 Onboard LED Indicators D1749NTD4U-4T4O only D1749NTD4U-4T4O only D1749NTD4U-4T4O only D1749NTD4U-4Q D1749NTD4U-4T4O...
  • Page 19 D1749NTD4U-4Q D1749NTD4U-4T4O Item Status Description SB_PWR1 Green STB PWR ready LED_FAN5 SYS_FAN5 failed LED_FAN2 SYS_FAN2 failed LED_FAN3 SYS_FAN3 failed LED_FAN4 SYS_FAN4 failed LED_FAN1 CPU_FAN1 failed LED_FAN6 SYS_FAN6 failed BMC_LED1 Green BMC heartbeat LED...

  • Page 20: I/O Panel

    1.6 I/O Panel No. Description No. Description UID Switch (UID1) 10/25G SFP28 (Fiber) (SFP28_3)*** COM Port (COM1) 10/25G SFP28 (Fiber) (SFP28_1)*** 10G LAN RJ-45 Port (LAN4)** VGA Port (VGA) (D1749NTD4U-4T4O only) 10G LAN RJ-45 Port (LAN3)** LAN RJ-45 Port (IPMI_LAN)* (D1749NTD4U-4T4O only) 10G LAN RJ-45 Port (LAN2)** USB 3.2 Gen1 Ports (USB3_1_2)
  • Page 21 D1749NTD4U-4Q D1749NTD4U-4T4O **There is an LED on each side of 10G LAN port. Please refer to the table below for the LAN port LED indications. SPEED LED ACT/LIN K LED SPEED LED ACT/LIN K LED LAN Port 10G LAN Port (LAN1, LAN2, LAN3, LAN4) LED Indications...

  • Page 22: Block Diagram

    1.7 Block Diagram...

  • Page 23: Chapter 2 Installation

    D1749NTD4U-4Q D1749NTD4U-4T4O Chapter 2 Installation This is a mATX form factor (9.6'' x 9.6'', 24.4 cm x 24.4 cm) motherboard. Before installing the motherboard, study the configuration of the chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

  • Page 24: Installation Of Memory Modules

    2.3 Installation of Memory Modules This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots and supports Dual Channel Memory Technology. The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 25: Expansion Slot (Pci Express Slots)

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.4 Expansion Slot (PCI Express Slots) There are 2 PCI Express slots on this motherboard. PCIE slots: PCIE6 (PCIE 3.0 x8 slot, from CPU1) is used for PCI Express x8 lane width cards. PCIE7 (PCIE 4.0 x16 slot, from CPU1) is used for PCI Express x16 lane width cards.

  • Page 26: Jumper Setup

    2.5 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.

  • Page 27: Onboard Headers And Connectors

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 28 Auxiliary Panel Header This header supports multiple (18-pin AUX PANEL1) functions on the front panel, (see p.7, No. 29) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows you to connect SMBus (System Management Bus) equipment.
  • Page 29 FAN_VOLTAGE please connect it to Pin 1-3. CPU_FAN_SPEED FA N_SPEED_CONTROL *For more details, please refer to the Cooler QVL list on the ASRock Rack website. System Connectors Please connect a fan cable to (6-pin FAN2) the fan connector and match (see p.7, No.
  • Page 30 Mini-SAS HD Connectors The connector Right-Angle: supports MiniSAS- (MSAS_HD0) to-SATA data cables (see p.7, No. 18) for internal storage MSAS_HD0 (MSAS_HD1) devices with up to 6.0 (see p.7, No. 19) Gb/s data transfer rate. (MSAS_HD2) (see p.7, No. 20) MSAS_HD1 MSAS_HD2 ATX 12V Power The motherboard provides...
  • Page 31 D1749NTD4U-4Q D1749NTD4U-4T4O Micro-Fit Power The motherboard provides Connector one Micro-Fit power/signal ATX_PWROK (4-pin ATX4PIN1 connector which is a required PSON# ATX_+5VSB input for ATX power source. (ATX 24pin-to-4pin) (see p.7, No. 6) When using ATX power, it is necessary to use a 24pin-to-...
  • Page 32 IntA_PA_D+ USB 3.2 Gen1 Header Besides two default USB 3.2 IntA_PA_D- IntA_PA_SSTX+ (19-pin USB3_3_4) Gen1 ports on the I/O panel, IntA_PA_SSTX- (see p.7, No. 30) there is one USB 3.2 Gen1 IntA_PA_SSRX+ IntA_PA_SSRX- header on this motherboard. Vbus This USB 3.2 Gen1 header can support two USB 3.2 Gen1 ports.
  • Page 33 D1749NTD4U-4Q D1749NTD4U-4T4O LPC TPM Header This connector supports (17-pin TPM1) Trusted Platform Module (see p.7, No. 38) (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
  • Page 34 Backplane PCI Express This header is used for the hot Hot-Plug Connector plug feature of HDDs on the RST_PCIE_SSD_PERST_R_N (4-pin HSBP1) backplane. SMB_HSBP_PFR_STBY_CLK (see p.7, No. 32) SMB_HSBP_PFR_STBY_DATA Virtual RAID On CPU This connector supports Intel® Header Virtual RAID on CPU and VROC RAID KEY (4-pin RAID_1) NVME/AHCI RAID on CPU...

  • Page 35: Dr. Debug

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.7 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31...
  • Page 36 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 37 D1749NTD4U-4Q D1749NTD4U-4T4O 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 38 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 39 D1749NTD4U-4Q D1749NTD4U-4T4O 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 40 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 41: Atx Psu / Dc-In Power Connections

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.8 ATX PSU / DC-IN Power Connections This motherboard supports both +12V DC and ATX power input. Please refer to the table below for the required connections between the motherboard and the power supply. Connector DC-IN ATX PSU...

  • Page 42: Led/Switches

    2.9 LED/Switches With the UID button, user can locate the server working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on.

  • Page 43: Ssd Module Installation Guide (M2_1/M2_2)

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.10 M.2 SSD Module Installation Guide (M2_1/M2_2) The M.2 Socket (M2_1/M2_2, Key M) supports type 2280/22110 M.2 PCI Express module up to Gen3 x4 (8GT/s x4). *If M2_2 is occupied by a SATA-type M.2 device, SATA0, SATA1, SATA2 and SATA3 will be disabled.
  • Page 44 Step 3 Move the standoff based on the module type and length. Skip Step 3 and 4 and go straight to Step 5 if using the default nut. Otherwise, release the standoff by hand. Step 4 Peel off the yellow protective film on the nut to be used.

  • Page 45: Dual Lan And Teaming Operation Guide

    D1749NTD4U-4Q D1749NTD4U-4T4O 2.11 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images. Fault tolerance on the dual LAN network prevents network downtime by transferring the workload from a failed port to a working port.

  • Page 46: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 47: Navigation Keys

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 48: Main Screen

    3.2 Main Screen Once entering the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows user to set the system time and date.

  • Page 49: Advanced Screen

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3 Advanced Screen In this section, set the configurations for the following items: CPU Configuration, DRAM Configuration, Chipset Configuration, Storage Configuration, NVMe Configuration, ACPI Configuration, USB Configuration, Super IO Configuration, Serial Port Console Re- direction, H/W Monitor, Intel SPS Configuration, Network Stack Configuration, Intel(R) VMD Technology, Driver Health, Tls Configuration and Instant Flash.

  • Page 50: Cpu Configuration

    3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU turbo ratio can be fixed when Intel SpeedStep Technology set Disabled and Intel Turbo Boost Technology set En- abled.
  • Page 51 D1749NTD4U-4Q D1749NTD4U-4T4O Long Duration Maintained Configure the period of time until the CPU ratio is lowered when the Long Duration Power Limit is exceeded. Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately.
  • Page 52 Hardware P-States Disable: Hardware chooses a P-state based on OS Request (Legacy P-States) Native Mode: Hardware chooses a P-state based on OS guidance Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance) AES-NI Use this item to enable or disable AES-NI support.

  • Page 53: Dram Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.2 DRAM Configuration Enforce POR Enforce POR - Enforces Plan Of Record restrictions for DDR4 frequency and voltage programming. Disable - Disables this feature. DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically.
  • Page 54 Patrol Scrub Patrol Scrub is a background activity initiated by the processor to seek out and fix memory errors. The default value is [Enabled at End of POST]. Data Scrambling for DDR4/5 Enable - Enables data scrambling for DDR4 and DDR5. Disable - Disables this feature.

  • Page 55: Chipset Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.3 Chipset Configuration Onboard VGA Use this to enable or disable the Onboard VGA function. MSAS_HD0/MSAS_HD1 PCIE6 Select This allows user to switch signal among MSAS_HD0/MSAS_HD1 or PCIE6. PCIE7/SLIM2/SLIM1 Link Width This allows user to configure PCIE7/SLIM2/SLIM1 slot Link Width. The default value is [Auto].
  • Page 56 PCIE Hot Plug Use this item to configure PCIE Hot Plug. SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support. Restore AC Power Loss This allows user to set the power state after a power failure. If [Power Off] is selected, the power will remain off when the power recovers.

  • Page 57: Storage Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.4 Storage Configuration Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. SATA Controller 1/2/3 Use this item to enable or disable SATA Controllers.
  • Page 58 External SATA Enable or disable SATA safe removal notifications. Hot Plug Enable or disable Hot Plug for specified port. Spin Up Device If enabled for any of ports Staggerred Spin Up will be performed and only the drives which have this option enabled will spin up at boot. Otherwise all drives spin up at boot. SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.

  • Page 59: Nvme Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.5 NVMe Configuration NVMe Configuration The NVMe Configuration displays the NVMe controller and Drive information.

  • Page 60: Acpi Configuration

    3.3.6 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Allow the system to be waked up by onboard COM port modem Ring-In signals. RTC Alarm Power On Allow the system to be waked up by the real time clock alarm.

  • Page 61: Usb Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.7 USB Configuration Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. This is only available upon the CSM is enabled.

  • Page 62: Super Io Configuration

    3.3.8 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of COM1. Serial Port Use this item to enable or disable the serial port (COM). Change Settings Use this item to select an optimal setting for Super IO device. SOL Configuration Use this item to set parameters of SOL.

  • Page 63: Serial Port Console Redirection

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.9 Serial Port Console Redirection COM1/SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how the computer and the host computer to which are connected exchange information.
  • Page 64 Data Bits Use this item to set the data transmission size. The options include [7] and [8] (Bits). Parity Use this item to select the parity bit. The options include [None], [Even], [Odd], [Mark] and [Space]. A parity bit can be sent with the data bits to detect some transmission errors.Mark and Space Parity do not allow for error detection.
  • Page 65 D1749NTD4U-4Q D1749NTD4U-4T4O Redirection COM Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Resolution On Legacy OS, the Number of Rows and Columns supported redirection. Redirect After POST When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS.
  • Page 66 Data Bits Parity Stop Bits...

  • Page 67: H/W Monitor

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.10 H/W Monitor In this section, it allows user to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 68: Intel Sps Configuration

    3.3.11 Intel SPS Configuration SPS screen displays the Intel SPS Configuration information, such as Operational Firmware Version and Firmware State.

  • Page 69: Network Stack Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.12 Network Stack Configuration Network Stack Enable UEFI network stack can prevents user from performing single-user network boots and network installation. If disabled, the host does not use the network interface. IPv4 PXE Support Enable IPv4 PXE Boot support. If disabled, IPv4 PXE Boot Option is not supported.

  • Page 70: Intel(R) Vmd Technology

    3.3.13 Intel(R) VMD Technology VMD Config for IOU 0 (PCIE7/SLIM2/SLIM1) Enable/Disable VMD Use this item to enable or disable VMD Controller. When enabled, the options below appear. VMD port A Use this item to enable or disable Intel(R) Volume Management Device Technology on specific root port.

  • Page 71: Driver Health

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.14 Driver Health Inter (R) 800 Series Ethernet Driver 4.0.48 Healthy Provides Health Status for the Drivers/Controllers...

  • Page 72: Tls Auth Configuration

    3.3.15 Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. Client Cert Configuration Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert.

  • Page 73: Instant Flash

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.3.16 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows user to update system UEFI without entering operating systems first like MS- ® DOS or Windows . Just save the new UEFI file to the USB flash drive, floppy disk or hard drive and launch this tool, then update your UEFI only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 74: Security

    3.4 Security In this section, set or change the supervisor/user password for the system. User can also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 75: Key Management

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.4.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode.
  • Page 76 Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, Modified, Mixed Key Exchange Keys (KEK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 77 D1749NTD4U-4Q D1749NTD4U-4T4O 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, Modified, Mixed Forbidden Signatures (dbx) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2.
  • Page 78 b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, Modified, Mixed, Test...

  • Page 79: Boot Screen

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.5 Boot Screen In this section, it will display the available devices on the system for user to configure the boot settings and the boot priority. Boot mode select This item is only available upon the CSM is enabled. Use this item to select boot mode LEGACY/UEFI.
  • Page 80 UEFI NVME Drive BBS Priorities Specifies the Boot Device Priority sequence from available UEFI NVME Drives. UEFI Application Boot Priorities Specifies the Boot Device Priority sequence from available UEFI Application. Setup Prompt Timeout Configure the number of seconds to wait for the UEFI setup utility. Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up.

  • Page 81: Csm (Compatibility Support Module)

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.5.1 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. If you are using Windows 8 64- bit UEFI and all of your devices support UEFI, you may also disable CSM for faster boot speed. Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only.

  • Page 82: Server Mgmt

    3.6 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 255 seconds to initialize Host to BMC interfaces.

  • Page 83: Bmc Network Configuration

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.6.1 BMC Network Configuration BMC Out of Band Access Enabled or disabled BMC Out of band Access. Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.
  • Page 84 The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp VLAN Enabled or disabled Virtual Local Area Network.

  • Page 85: System Event Log

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.6.2 System Event Log SEL Components Change this to enable or disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL.

  • Page 86: Bmc Tools

    3.6.3 BMC Tools KCS Control Select this KCS interface state after POST end. If [Enabled] us selected, the BMC will remain KCS interface after POST stage. If [Disabled] is selected, the BMC will disable KCS interface after POST stage Load BMC Default Settings Use this item to load BMC default settings.

  • Page 87: Event Logs

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.7 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering, the items as below are displayed. Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 88 METW METW (Mutiple Event Time Window). The number of minutes which must pass between duplicate log entries which utilize a multiple-event counter. The value renges from 0 to 99 minutes. View Smbios Event Log Press <Enter> to view the Smbios Event Log records. All values changed here do not take effect until computer is restarted.

  • Page 89: Exit Screen

    D1749NTD4U-4Q D1749NTD4U-4T4O 3.8 Exit Screen Save Changes and Exit When selecting this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY.

  • Page 90: Chapter 4 Software Support

    Please download the operating system from the OS manufacturer. Please refer to the OS documentation for more instructions. * Please download the Intel® SATA Floppy Image driver from the ASRock Rack’s website (www.asrockrack.com) to the USB drive while installing OS in SATA RAID mode.

  • Page 91: Chapter 5 Troubleshooting

    D1749NTD4U-4Q D1749NTD4U-4T4O Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot the system. Always unplug the power cord before adding, removing or changing any hardware components. Failure to do so may cause physical injuries and damages to motherboard components.
  • Page 92 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether the power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to the related problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 93: Technical Support Procedures

    D1749NTD4U-4Q D1749NTD4U-4T4O 5.2 Technical Support Procedures If the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Contact information 2. Model name, BIOS version and problem type. 3. System configuration. 4. Problem description. Contact ASRock Rack’s technical support at: http://www.asrockrack.com/support/tsd.asp...
  • Page 94 Contact Information If it needs to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at http://www.asrockrack.com; or contact the dealer for further information. For technical questions, please submit a support request form at https://event.asrockrack.com/tsd.asp...
