ASROCK Rack 1U4G-ROME Quick Installation Manual

Quick Installation Guide
1U4G-ROME
Cable List
No. Item
1 Slimline to Slimline cable (L=420mm)
2 Slimline to Slimline cable (L=420mm)
3 Slimline to Slimline cable (L=300mm)
4 Slimline to Slimline cable (L=300mm)
5 Slimline to Slimline cable (L=420mm)
6 Slimline to Slimline cable (L=350mm)
7 Slimline to Slimline cable (L=450mm)
8 Slimline to Slimline cable (L=420mm)
9 Slimline to Slimline cable (L=350mm)
10 Slimline to Slimline cable (L=350mm)
11 Slimline to Slimline cable (L=350mm)
12 Slimline to Slimline cable (L=420mm)
13 RISER power cable 8pin to 6pin (360mm)
14 RISER power cable 8pin to 6pin (360mm)
15 RISER power cable 8pin to 6pin (360mm)
16 RISER power cable 8pin to 6pin (600mm)
17 NVMe Backplane Power cable 8pin to 8pin (L=700mm)
18 MB Power cable 8pin (L=220mm)
19 MB Power cable 8pin (L=220mm)
20 MB Power cable 4pin (L=180mm)
21 PMBUS cable (L=200mm)

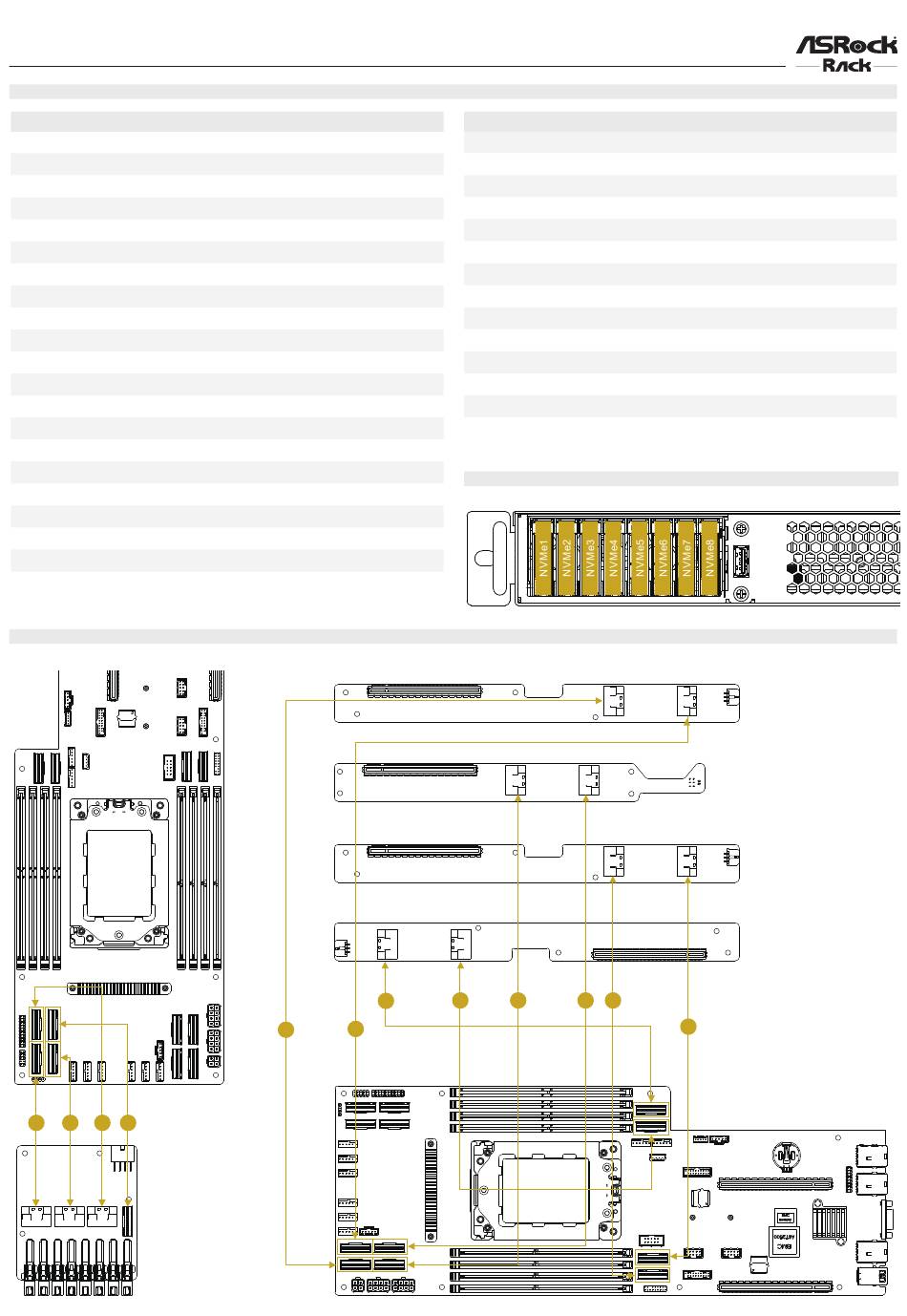

SLIMLINE Cable Connections
SLIM10 SLIM9
SLIM11
SLIM12
9 10 11 12
SLIM4 SLIM3 SLIM2
SLIM1
HDD Backplane
1
Server Board
SLIM8
SLIM7
No.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Front Panel View (NVMe Trays)
Riser Card for GPU1
Riser Card for GPU2
SLIM1
Riser Card for GPU3
Riser Card for GPU4
SLIM1
SLIM2
4 5
3
2
SLIM6
SLIM5
Item
GPU card Power cable 8pin to 8pin/2x 6+2pin (L=550mm)
GPU card Power cable 8pin to 8pin/2x 6+2pin (L=450mm)
GPU card Power cable 8pin to 8pin/2x 6+2pin (L=450mm)
GPU card Power cable 8pin to 8pin/2x 6+2pin (L=450mm)
FAN cable 6pin to 8pin (L=570mm)
FAN cable 6pin to 8pin (L=570mm)
FAN cable 6pin to 8pin (L=460mm)
FAN cable 6pin to 8pin (L=460mm)
FAN cable 6pin to 8pin (L=460mm)
FAN cable 6pin to 8pin (L=460mm)
FAN cable 6pin to 8pin (L=460mm)
FAN cable 6pin to 8pin (L=460mm)
Front panel cable (L=760mm)
USB cable (L=870mm)
SLIM2
SLIM1
SLIM2
SLIM2
SLIM1
6 7
8
SLIM4
SLIM3
SLIM2
SLIM1
Server Board
