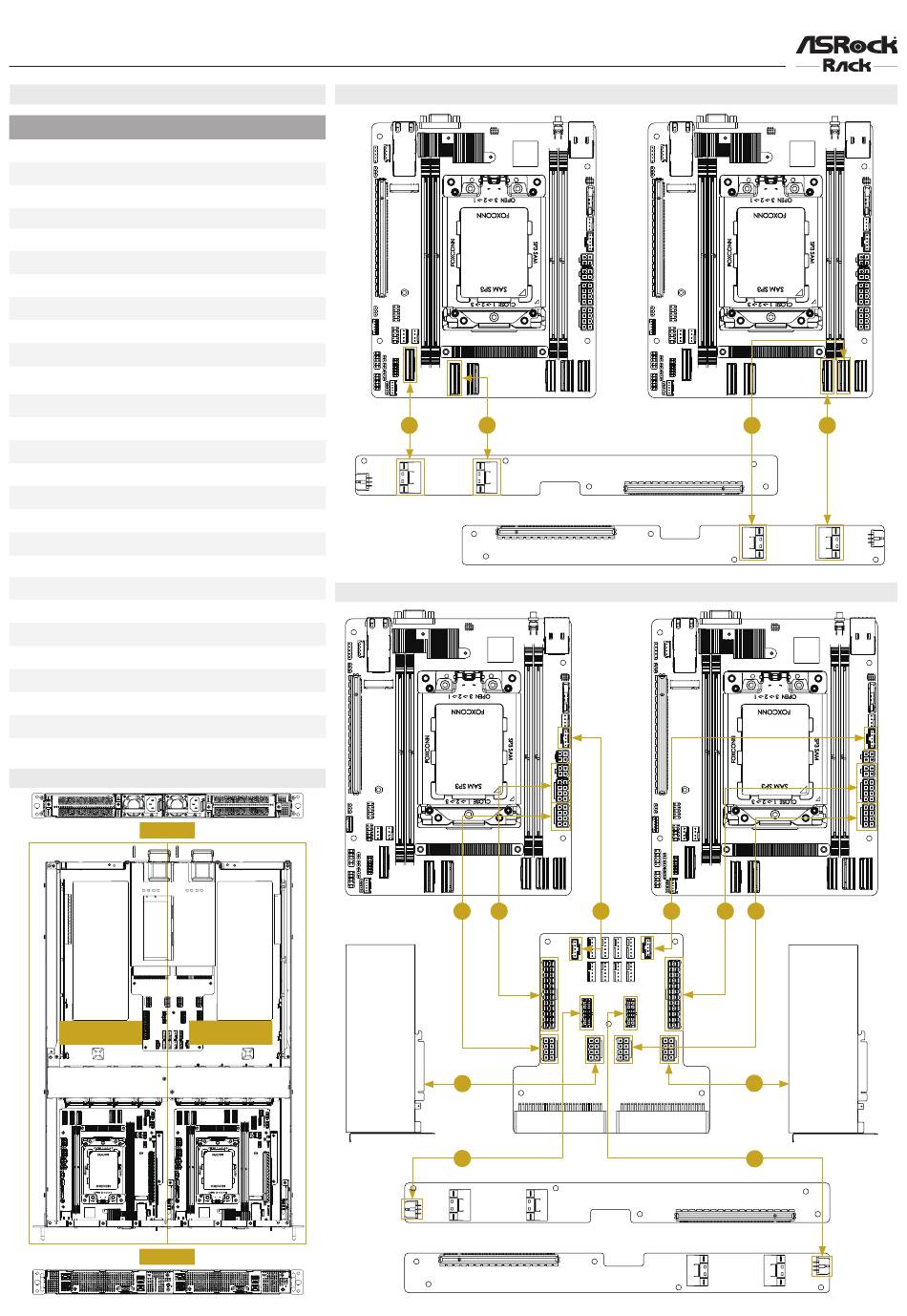

ASROCK Rack 1U2N2G-ROME/2T Quick Installation Manual

Quick Installation Guide
1U2N2G-ROME/2T
Cable List
No. Description
1 SLIMLINE X8 Cable; L=300mm (Node2)
2 SLIMLINE X8 Cable; L=300mm (Node2)
3 LP SLIMLINE X8 Cable; L=300mm (Node1)
4 SLIMLINE X8 Cable; L=300mm (Node1)
5 PWR PH=4.2 8PIN 18AWG Cable; L=600mm (Node2)
6 PWR MINIFIT 24P to 4P +8P Cable; L=380mm (Node2)
7 PMBUS 1*5P Cable; L=500mm (Node2)
8 PMBUS 1*5P Cable; L=500mm (Node1)
9 PWR MINIFIT 24P to 4P +8P Cable; L=380mm (Node1)
10 PWR PH=4.2 8PIN 18AWG Cable; L=600mm (Node1)
11 PWR GPU 6+2P*2 to 2*4P; L=300mm (Node2)
12 PWR GPU 6+2P*2 to 2*4P; L=300mm (Node1)
13 MICRO HI 2*3P to PH 3.0 2*6P Cable; L=370mm (Node2)
14 MICRO HI 2*3P to PH 3.0 2*6P Cable; L=370mm (Node1)
15 SMBUS 1*4P 2.5 HSG Cable; L=810mm
16 LED PH 2.0 to 2.54 1*2P Cable; L=560mm (Node2)
17 LED PH 2.0 to 2.54 1*2P Cable; L=560mm (Node1)
18 PWR BUTTON 1*5P 2.54 Cable; L=310mm (Node2)
19 PWR BUTTON 1*5P 2.54 Cable; L=310mm (Node1)
20 Fan Cable; L=250mm (Fan8 / Node2)
21 Fan Cable; L=250mm (Fan7 / Node2)
22 Fan Cable; L=250mm (Fan6 / Node2)
23 Fan Cable; L=250mm (Fan5 / Node2)
24 Fan Cable; L=250mm (Fan4 / Node1)
25 Fan Cable; L=250mm (Fan3 / Node1)
26 Fan Cable; L=250mm (Fan2 / Node1)
27 Fan Cable; L=250mm (Fan1 / Node1)
Chassis Node
REAR
NODE1
FRONT
Slimline Cable Connections
Server Board
Riser Card (Slimline & PCIE)
Power / PMBus Cable Connections
Server Board
NODE2
2
1
5 6
11
GPU Card
13
3
7 8 9 10
12
Power Distribution Board
14
Riser Card (Slimline & PCIE)
Riser Card (Slimline & PCIE)
Server Board
4
Riser Card (Slimline & PCIE)
Server Board
GPU Card
