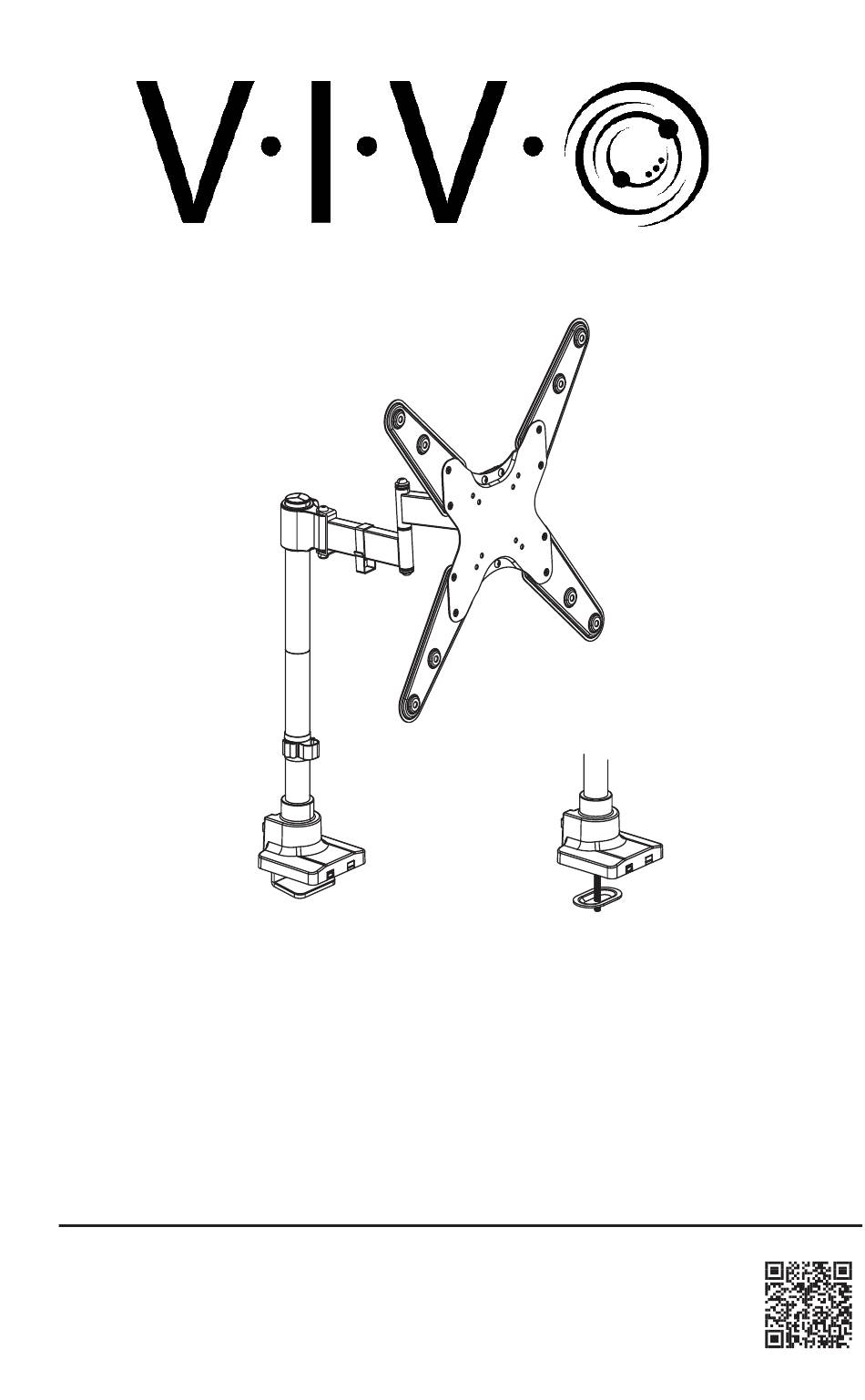

Articulating Arm Single TV Desk Mount SKU: STAND-V155D Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v155d...
Page 2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Package Contents A (x1) B (x1) Upper Pole Lower Pole C (x1) D (x4) VESA Adapters F (x1) E (x1) Grommet Plate Clamp H (x1) G (x1) Arm Cable Clip Pole Cable Clip I (x1) Clamp Cable Clip...
ASSEMBLY STEPS STEP 1 Assembly Option #1: Desk Clamp Using the 6mm Allen Wrench (T-C), loosen the Screw located inside the Clamp (E), lowering the Clamp Bracket, creating a space larger than the thickness of your desktop. Clamp Bracket Slide the Clamp (E) onto your desktop in your desired position.
Page 6
Assembly Option #2: Grommet Installation Screw Clamp Bracket Use 6mm Allen Wrench (T-C) to remove the Screw and Clamp Bracket located inside the Clamp (E). Both pieces can be discarded and will not be used in the remainder of the assembly.
Page 7
STEP 2 Insert Lower Pole (B) onto the Post on Clamp (E), ensuring the Threaded End is on the top. Tighten the lower set screw using 3mm Allen Wrench (T-A). Slide Pole Cable Clip (G) onto Lower Pole (B) and screw Upper Pole (A) into Lower Pole (B). Tighten the top set screw using 3mm Allen Wrench (T-A).
Page 8
STEP 3 Use the Wrench (T-D) to remove the screws and nuts on the back of Arm (C) to remove the VESA Plate (C1). Set aside for use in a future step.
Page 9
STEP 4 Slide Arm (C) onto Upper Pole (A) and secure using 6mm Allen Wrench (T-C) at desired height. Place Arm Cable Clip (H) onto Arm (C). STEP 5 VESA Plate Assembly Choose Option to Match VESA Pattern VESA Adapters can be assembled to VESA Plate in three different variations. Select the setup that matches your screen’s VESA pattern on the next page.
Page 10
VESA Plate Assembly #1 300mm x 300mm & 400mm x 400mm Secure VESA Adapter Set (D) to front of VESA Plate (C1) using M6x8mm Screws (S-A) in the configuration shown below.
Page 11
VESA Plate Assembly #2 400mm x 200mm Secure VESA Adapter Set (D) to front of VESA Plate (C1) using M6x8mm Screws (S-A) in the configuration shown below.
Page 12
VESA Plate Assembly #3 400mm x 300mm Secure VESA Adapter Set (D) to front of VESA Plate (C1) using M6x8mm Screws (S-A) in the configuration shown below.
Page 13
STEP 6 Secure VESA assembly to the back of your screen using appropriate Screws (M-A thru M-F), Washers (M-G, M-H), and Spacers (M-I, M-J) using a Phillips screwdriver.
Page 14
STEP 7 Secure VESA assembly to the Arm (C) using the previously removed screws and nuts. Tighten using Wrench (T-D).
Page 15
Adjust as Desired Use 4mm Allen Wrench (T-B) adjust tilt.
