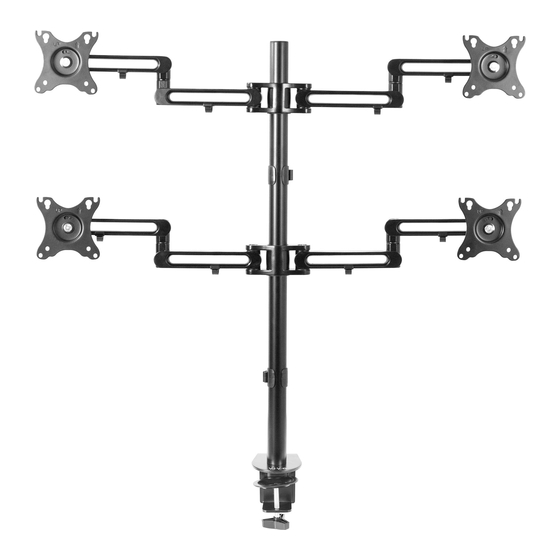

Quad Monitor Desk Mount
Instruction Manual
SKU: STAND-V104Y
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v104y
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V104Y
Summary of Contents for Vivo STAND-V104Y
- Page 1 Quad Monitor Desk Mount Instruction Manual SKU: STAND-V104Y Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v104y GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp (B) to the upper or lower holes of the clamp brace (A) using M6x10 flat head bolts (F), and tighten using the 4mm Allen wrench (H). Attach the pole (D) to the clamp brace using M6x16 flat head bolts (G).
- Page 4 STEP 2 Slide the monitor arms (C) and cable clips (E) onto the pole to the desired height, and tighten the center brackets to the pole using the 6mm Allen wrench (I). STEP 3 Attach two bolts (M-A or M-B) and washers (M-C) to the top mounting holes of each monitor, making sure to leave 3mm of thread exposed.
- Page 5 STEP 4 Align bolts (M-A, M-B) in VESA plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes of each monitor. Tighten all bolts using a Phillips screwdriver.
- Page 6 STEP 5 Tighten or loosen the tilt joints using the 6mm Allen wrench (I). Store tools in the cable clip. Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
