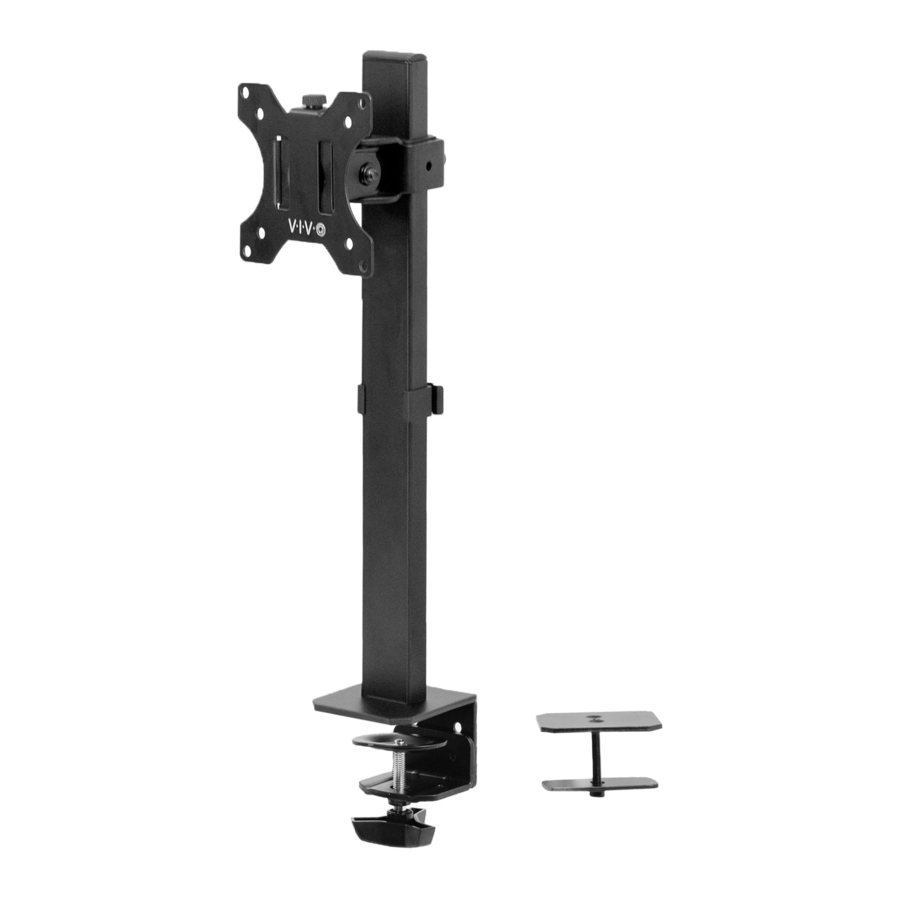

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V101E
Summary of Contents for Vivo STAND-V101E
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V101E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Unscrew the handbolt on the clamp (D) to the fully open position, then remove bolts from the back using the 4mm Allen wrench (L) to separate the clamp parts. STEP 2 OPTION A: Clamp Installation Assemble the column (A) to the clamp base using M6x16 bolts (H) and tighten with the 4mm Allen wrench (L).
- Page 4 STEP 2 (Continued) OPTION 2A: Using previously removed bolts, install the clamp to the upper holes of the clamp base for desks 3/8” to 1” (10-25mm) in thickness. OPTION B: Grommet Installation Assemble the column (A) to the grommet base (E) using M6x16 bolts (H) and tighten with the 4mm Allen wrench (L).
- Page 5 STEP 4 Install the VESA plate (B) to monitor using bolts (M-A or M-B) and washers (M-C). STEP 5 Slide the VESA plate (B) with monitor onto the head of the bracket (C). Secure using the thumbscrew (K).
- Page 6 STEP 6 If needed, adjust tilt joint support using the 6mm Allen wrench (M). Use the cable clip (J) to organize cables. STEP 7 Store Allen wrenches (L, M) in the cable clip (J) when not in use.
- Page 7 STEP 8 Adjust as desired.
