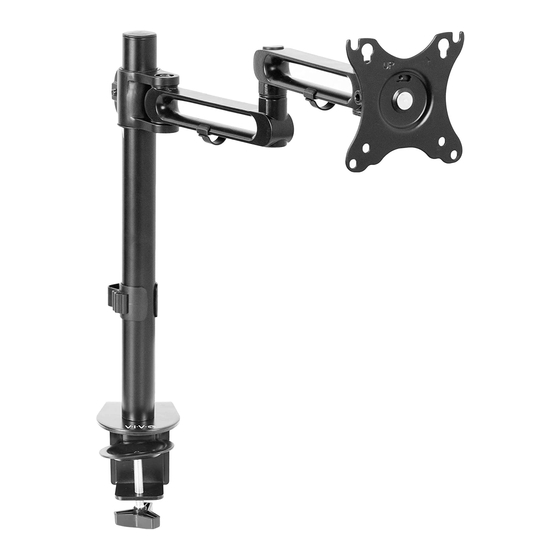

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101Y
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101y
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V101Y
Summary of Contents for Vivo STAND-V101Y
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V101Y Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101y GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp (B) to the upper or lower holes of the clamp brace (A) using M6x10 flat head bolts (E), and tighten using the 4mm Allen wrench (G). Attach the pole (D) to the clamp brace using M6x16 flat head bolts (F). - Page 4 STEP 2 Slide the monitor arm (C) onto the pole to the desired height, and tighten the center bracket to the pole using the 6mm Allen wrench (H). STEP 3 Attach two bolts (M-A or M-B) and washers (M-C) to the top mounting holes of the monitor, making sure to leave 3mm of thread exposed.
- Page 5 STEP 4 Align bolts (M-A, M-B) in the VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes of the monitor. Tighten all bolts using a Phillips screwdriver.
- Page 6 STEP 5 Tighten or loosen the tilt joint using the 6mm Allen wrench (H). Store tools in the cable clip. Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
