5.2 Spinning head cleaning
1. Unplug the machine.
2. Remove all sugar from the head, turning upside-down if necessary.
3. Detach the cover (see Fig. 10) by removing three screws that fix the cover. If the cover
is 'glued' to the sidewall, gently tap with the screwdriver handle in order to loosen the
parts. Note that the cover is made from aluminum and can be damaged by excessive
tightening of the screws, by throwing, or by heavy impact.
4. Remove central wing nut, steel washer, and insulating pad.
5. Using 7 mm nut driver or wrench, remove the nuts that are securing the wire ends to
the terminal posts. Remove the nuts, lock washers, terminal ends and washers and
then lift off the sidewall with heating coil as one unit.
6. Wash the sidewall and heating coil with very hot water in order to melt the flossugar.
ATTENTION! DO NOT immerse heating coil leads into water! When the bulk of the
flossugar is removed, carefully separate the heater coil from the sidewall to clean the
areas where they contact one another.
7. Remove carbonized sugar from sidewall and coil carefully, so not to damage the parts.
8. Re-assemble the spinning head in the reverse order. Once completed, turn on the motor
and power to the heating coil for approximately 30 seconds in order to spin off any
remaining moisture.
9. Turn the machine off and unplug.

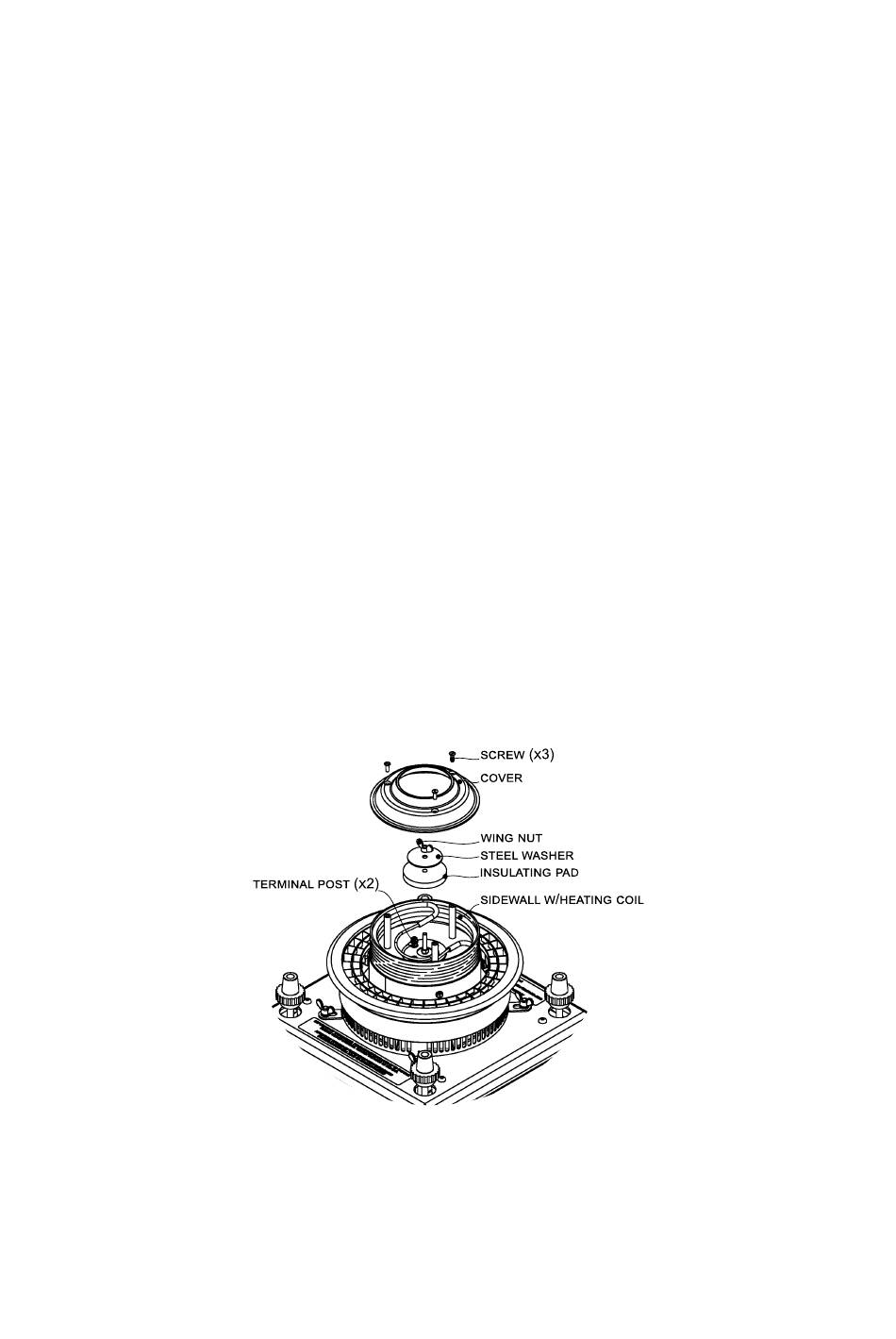

Figure 10
