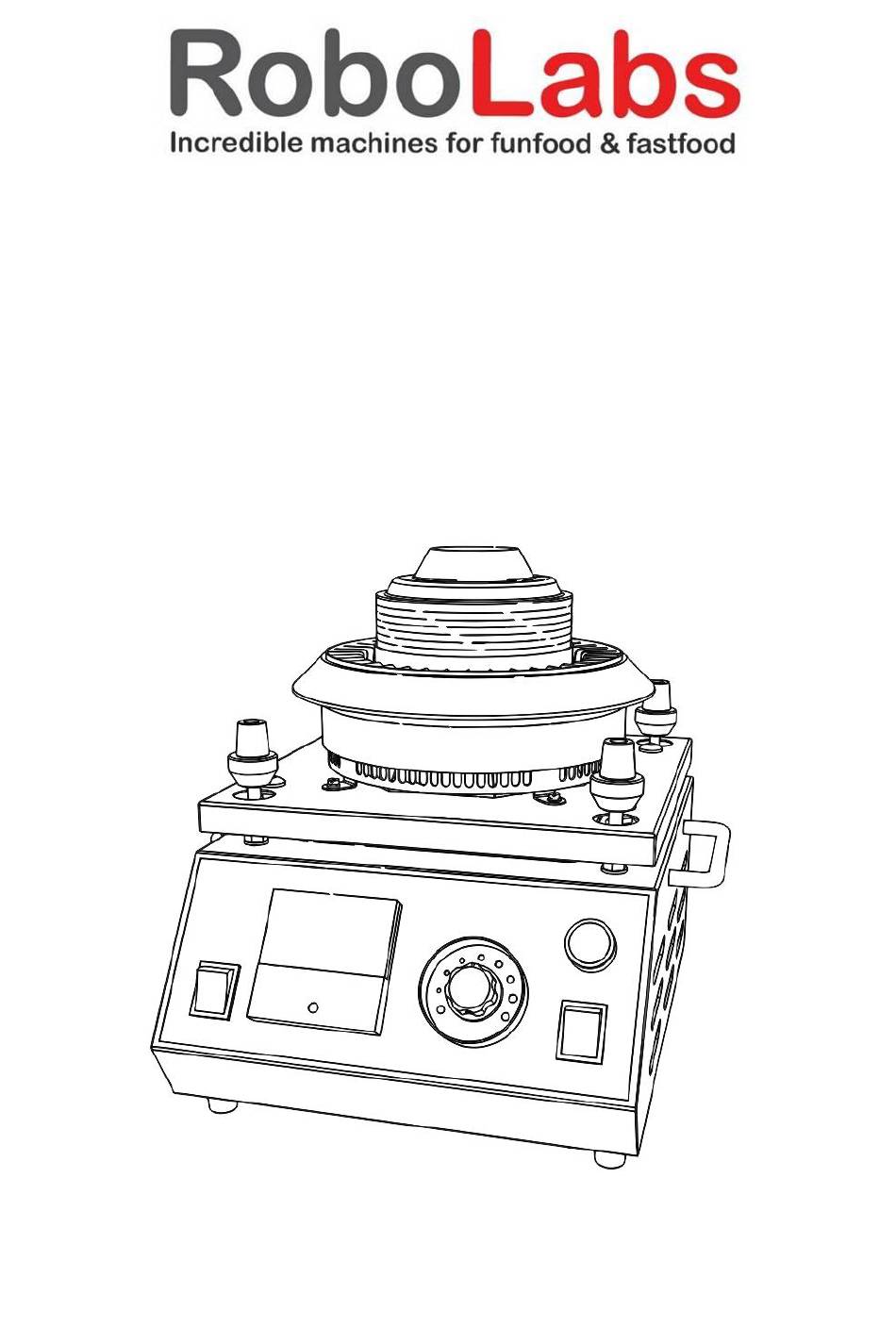

- Page 1 COTTON CANDY MACHINE ROBOJETFLOSS/ROBOJETFLOSS PRO (ACB-09E) OPERATION MANUAL 2017...
-
Page 2: Safety Requirements
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 SAFETY REQUIREMENTS READ CAREFULLY THE MANUAL BEFORE START! ONLY INSTRUCTED PERSONNEL ARE ALLOWED TO OPERATE THE MACHINE! 1. DO NOT OVERFILL spinning head with sugar to protect eyes! 2. Use a special safety goggles to protect eyes (not included in the delivery set)! 3. -
Page 3: Overview And Operation
2(!) meters in diameter. After some practice, operator can step 5 meter away from the machine and keep making sweet cotton! 1.2. TECHNICAL SPECIFICATIONS Model RoboJetFloss RoboJetFloss Pro ‘Cold start’ time 60 s 20 s Productivity up to 5 kg/h... -
Page 4: Delivery Set
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 1.3. DELIVERY SET Delivery set of ACB-09E includes the following: Cotton candy machine 1 pc. Plastic pan 1 pc. ‘No-Snow’ tool 1 pc. Silicone sealing collar 1 pc. Silicone adjustment ring 2 pc. Power supply cord 1 pc. - Page 5 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 Electric motor runs spinning head at high rate (see Technical Specifications). There is a Stator (4) mounted on the chassis, equipped with silicone sealing Collar (5) and silicone adjustment Ring (6). The spinning head has the following main parts: Impeller (7); Baseplate (8); Sidewall with heating element (9);...
- Page 6 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 provides control over heating intensity; Voltmeter (14) indicates actual voltage supplied on heating element. On ‘PRO’ version there is a ‘Quick Start’ button (15), providing full power on heating element, even while electric motor is stopped. See the figure above for ACB-09E front panel.
-
Page 7: Intended Use
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 2. INTENDED USE 2.1. PROTECTORS AND LOCKUPS Special fastening nuts are provided for fixing a spring-loaded chassis during transportation. The nuts are located on threaded support studs of the pan. The nuts prevent machine components damage during transportation. -
Page 8: Getting Started
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 2.4. GETTING STARTED Unpack all the parts. Save packaging material for the future. Put the machine on a suitable table or special cart. Before turning the machine on release fastening nuts (16) fixing the chassis, by turning them firmly upward. -
Page 9: Power Supply Requirements
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 Pan hollows (shown in section) should fit rubber legs (17). Put silicone collar (5) (shown in section) on the stator; the collar ledge should overlap the pan. 2.5. POWER SUPPLY REQUIREMENTS Use the power supply cord included in the delivery set to connect the machine. - Page 10 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 spinning head volume. Get ready in advance special sticks for cotton candy winding. The sticks can be made of wood, paper or plastic. The longer the stick the bigger servings of cotton you can make. For vertical flow machine perfect length of stick would be 50-60 cm.
- Page 11 ‘Cold start’ mode Warming up of spinning head in the beginning of after long pause (15-20 minutes) takes not less than 60 seconds on common RoboJetFloss and not less than 20 seconds on ‘Pro’ version of the machine. Once the head is warmed, cotton candy starts to come out.
- Page 12 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 as a thick rope, or, much worse, irregular flakes and sugar dust, which are impossible to get on a stick. All those stuff fly near and around, causing mess within up to 8-10 sq.m. This will ruin the appearance of the site and relations with the lessor as well.
- Page 13 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 save about 20-30 seconds on ‘cold start’ stage. However, if an operator choose wrong timing, thermal gap will cause spinning head overheating with all undesirable outcomes. So the manufacturer strictly recommends to unexperienced users to follow the present manual and set the voltage at 150-160 Volts.
- Page 14 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 the spinning head. To do this, let it spin without heating for 5-7 minutes. However, due to thermal lag, sugar flakes and cotton filaments will keep come out of the head even after turning heating off, within 20-30 seconds. To manage those issues, ‘No-Snow’...
- Page 15 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 The wider the gap, the more powerful the airflow and operator can do more tricks, but it is harder to make common servings of cotton candy. The narrower the gap, the less powerful the airflow and it is easier to make cotton candy fast.
- Page 16 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 From now on, moving your hands up and down, changing angle of the stick, you can specify the shape of the ‘snake’. At the same time, you should watch rotating speed, to avoid rupture from one side, and too deep sag, from the other.
- Page 17 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 Ending the operation To end the operation, it is not necessary to process all sugar in the spinning head. If you need short-time break, you can make it with any amount of sugar in the head. Turn off the heating with switch (12) and let the head spin for 5-7 minutes without heating.
-
Page 18: Technical Maintenance
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 3. TECHNICAL MAINTENANCE 3.1. GENERAL INSTRUCTIONS ATTENTION! THIS PART OF OPERATION MANUAL IS INTENDED ONLY TRAINED PERSONNEL EXPERIENCED WITH ELECTRICAL EQUIPMENT. The aim of technical maintenance is to keep the machine in order during whole life time;... - Page 19 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 3.3. TECHNICAL MAINTENANCE ORDER Spinning head cleaning During long-term operation, sidewall slits as well as heating element are subjected to clogging with sugar. It may significantly reduce productivity of the machine as well as cotton candy quality. To clean the sidewall and heating element from caramelized sugar, it is necessary to disassemble the spinning head, take out the heating element with sidewall and wash it carefully with hot water.
- Page 20 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 3. Once the screws removed, take off the cover. In case of cover and sidewall ‘glued’ to each other, take them apart, gently knocking the cover with a screwdriver. Sidewall is made of high-grade stainless steel. Nevertheless, the part might be damaged by excessive tightening the screws, by throwing, or by another heavy impact.
- Page 21 COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 necessary equipment and tools to do this. To replace the brush units (25) the following should be done. Remove the screws fixing the brush unit. Take off the unit carefully. Inspect the carbon brushes. If brushes are worn more than for a half of the length, they should be replaced.
-
Page 22: Troubleshooting
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 3.5. TROUBLESHOOTING ATTENTION! THE MACHINE MUST BE DISCONNECTED FROM THE MAINS BEFORE DIAGNOSTICS AND REPAIR! EMI FILTER MUST BE DISCHARGED BY CLOSING ALL THE PINS IN THE PLUG! FAILURE POSSIBLE CAUSE REMEDY The machine doesn’t No power in the wall Use a tester to check the voltage on all turn on once MOTOR... -
Page 23: Transportation And Storage
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 4. TRANSPORTATION AND STORAGE The equipment may be transported by any kind of covered vehicle, in accordance with transportation rules for this kind of vehicle. Ambient temperature during the transportation and storage must be between minus 25°C to +55°C. -
Page 24: Warranty Obligations
7. MANUFACTURER DETAILS NPO Tvertorgmash LLC 11 Industrial Street, Tver, 170000 Russia Technical support is available: Email: support@robolabs.pro Phone: +7 495 956 4000... -
Page 25: Appendix A. Electric Diagram
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 APPENDIX A. ELECTRIC DIAGRAM PRO version has additional part that is shown in red dotted lines Sign Designation Part no. Capacitor 16623 Capacitor (AC motor) 1287 Heating element 1200W 3734 EMI filter 13706 Fuse 2536 Electric motor 4245... -
Page 26: Appendix B. Parts List
COTTON CANDY MACHINE ACB-09E REVISED 28-Sep-17 APPENDIX B. PARTS LIST Item Designation Part no. Item Designation Part no. Silicone Collar 16042 Fastening Nut 16054 Silicone Ring 16043 Handle 2964 Stator 16044 Quick Start button 2393 Impeller 16045 Adjustment Knob 2966 Cover 16046 Voltmeter...
