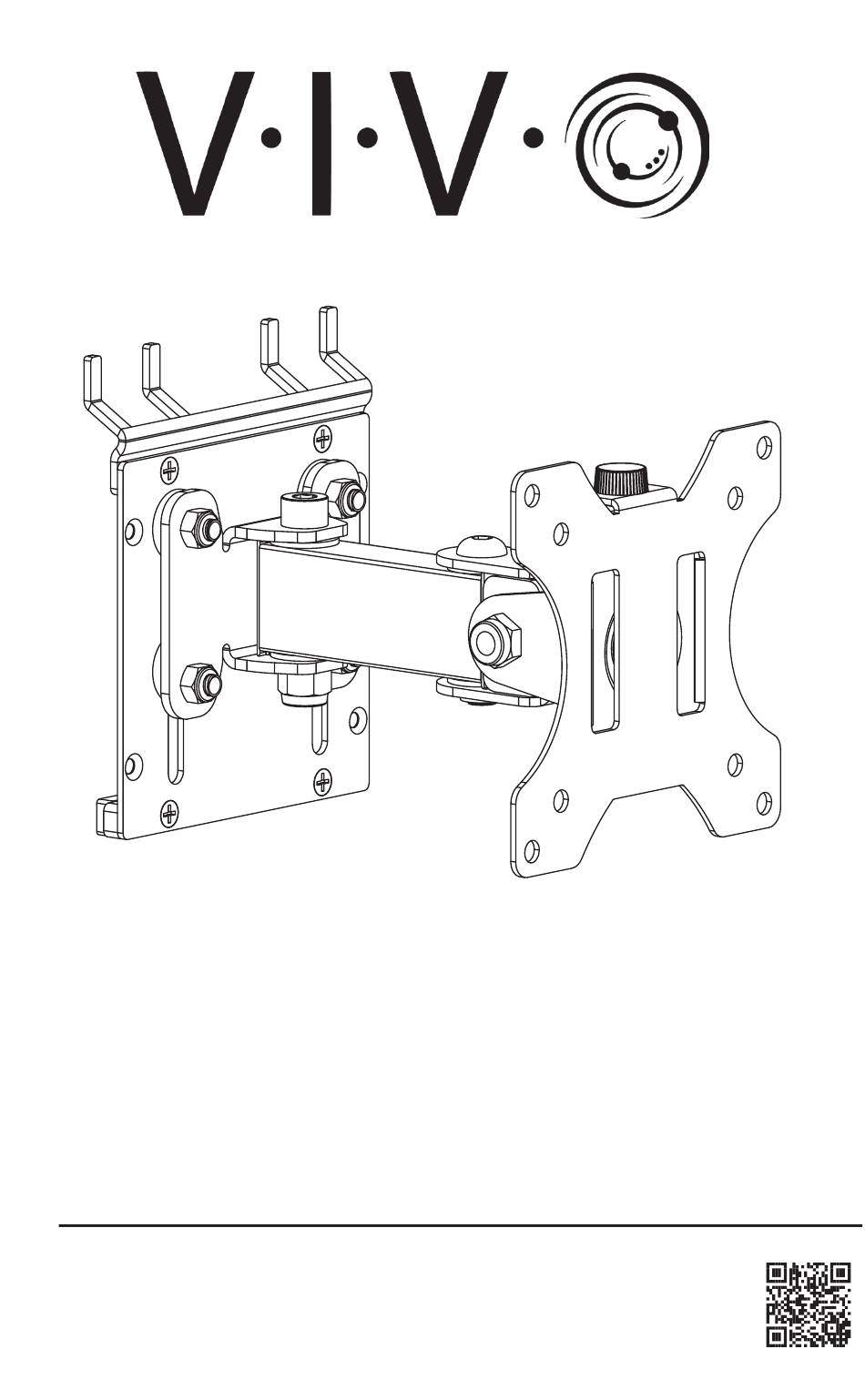

- Page 1 Single Monitor Pegboard Panel Mount with Arm SKU: MOUNT-PB2A Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pb2a...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x1) B (x2) C (x1) D (x1) VESA Plate Pegboard Hook Magnet Included Hardware & Tools S-A (x1) S-B (x4) M-A (x4) M-B (x4) Thumbscrew M4x6mm Screw M4x12mm Screw M4x16mm Screw M-C (x4) M-D (x4) M-E (x4) M-F (x4) M5x12mm Screw M5x16mm Screw...
- Page 5 ASSEMBLY STEPS STEP 1 Assemble one of the Pegboard Hooks (B) to top side of Arm (A) using M4x6mm Screw (S-B) and a Phillips screwdriver.
- Page 6 STEP 2 Option 1: Pegboard Supported Insert Arm (A) into pegboard. Assemble the remaining Pegboard Hook (B) to bottom side of Arm using M4x6mm Screws (S-B) and a Phillips screwdriver. Proceed to STEP 3 on Page 8...
- Page 7 Option 2: Magnet Supported Assemble the Magnet (D) to bottom side of Arm (A) using M4x6mm Screws (S-B) and a Phillips screwdriver. ** WARNING ** Ensure Magnet (D) attaches firmly to the wall. If not, use Option 1 for mounting.
- Page 8 STEP 3 Attach VESA Plate (C) to the back of your monitor using appropriate Screws (M-A thru M-D), Washers (M-E) and Spacers (M-F). Tighten using a Phillips screwdriver. Ensure the Lip is on the top.
- Page 9 STEP 4 Slide VESA Plate (C) with monitor onto the Arm and secure using Thumbscrew (S-A). 2 Person Mounting is Recommended...
- Page 10 Adjustments To adjust tilt, turn the Adjustment Screw on side of Arm (A) using 6mm Allen Wrench (T-A). Adjustment Adjustment Screw Screw Loosen the Nuts on Arm using Wrench (T-B) to raise or lower the mount, then retighten. Rotate as desired.
- Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 12 LAST UPDATED: 08/08/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
