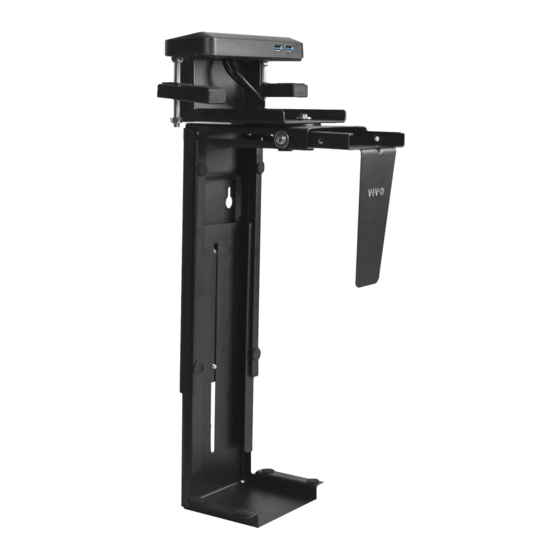

Black Clamp-on Desk and Wall PC Mount with USB
Instruction Manual
SKU: MOUNT-PC10BU
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-pc10bu
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-PC10BU
Summary of Contents for Vivo MOUNT-PC10BU
- Page 1 Black Clamp-on Desk and Wall PC Mount with USB Instruction Manual SKU: MOUNT-PC10BU Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-pc10bu GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303. TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Apply Pads (C) to top, bottom, and side of PC Mount (A) as shown. - Page 4 STEP 2 Loosen set screws for lower support using 4mm Allen wrench (T-A) and slide the support down. Loosen two screws on top of PC Mount (A) (one on each side) and slide side support bracket out to maximum width. STEP 3 (Option A) Clamp Mount Installation Clamp PC Mount (A) to the desktop by tightening the set screws on top using 5mm Allen Wrench (T-B).
- Page 5 STEP 3 (Option B) Solid Wood Wall Installation For solid wood wall, place PC Mount (A) against wall and mark drilling locations. Using a 1/8” (3.5mm) drill bit, drill holes 0.67” (15mm) deep. Insert two ST4.8x16 Screws (S-A) into top holes, leaving 3mm of thread exposed.
- Page 6 STEP 3 (Option C) Concrete Wall Installation For concrete wall installation, place PC Mount (A) against the wall and mark locations with a pencil. Drill 1.2” (35mm) deep holes at marked locations using a 1/4” (6mm) drill bit. Insert Concrete Anchors (S-B) into holes, and insert two ST4.8x38 Screws (S-A) into top holes, leaving 3mm of thread exposed.
- Page 7 STEP 4 Place PC tower in PC Mount (A), slide bottom support up until mount is fit vertically to PC, and tighten set screws using the 4mm Allen Wrench (T-A). Slide side bracket into place to hold PC, and tighten screws using a Phillips screwdriver.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
