Summary of Contents for Vivo MOUNT-PB2L

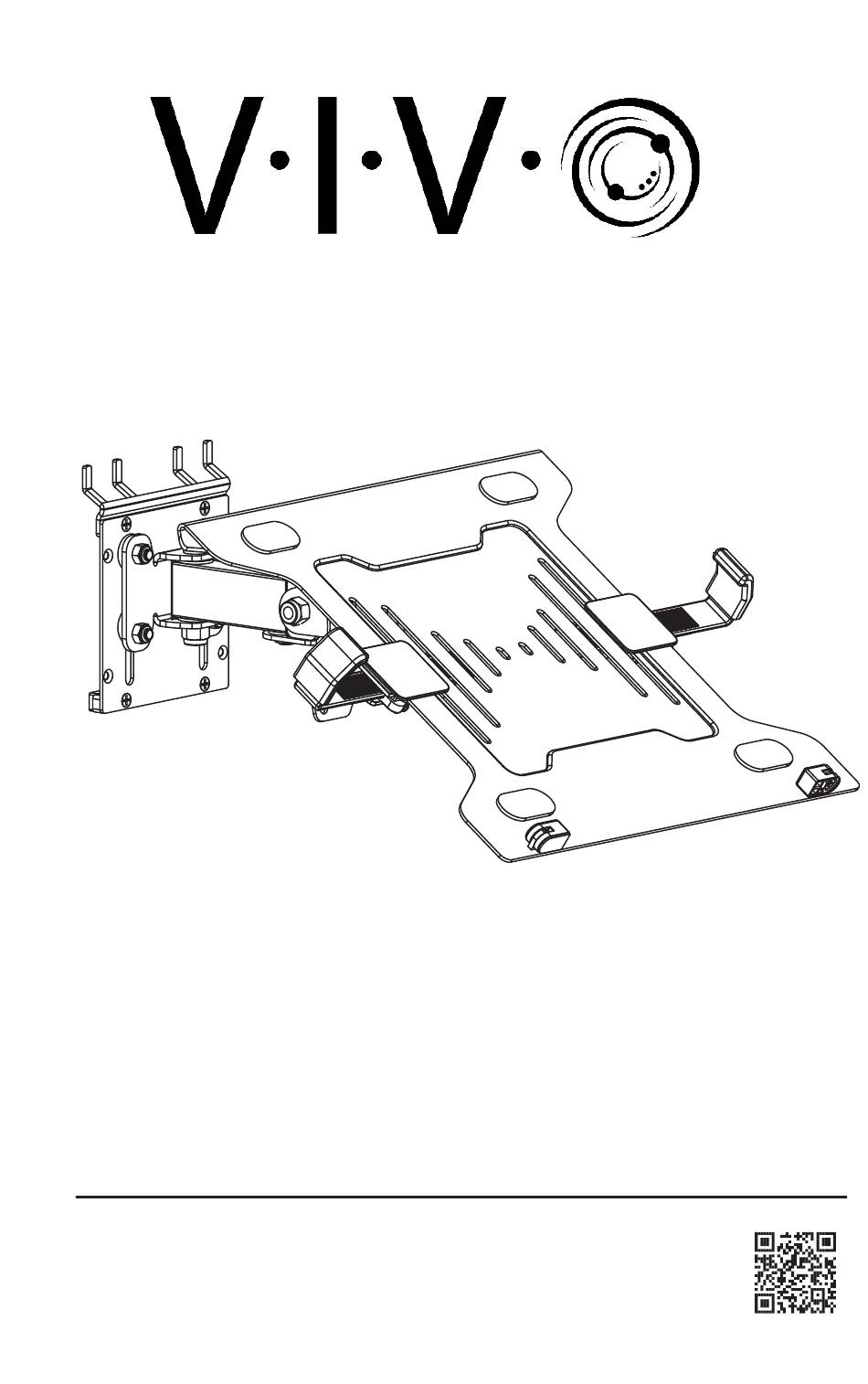

- Page 1 Pegboard Compatible Laptop Holder SKU: MOUNT-PB2L Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pb2l...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x2) C (x1) Pegboard Hook VESA Plate D (x1) E (x1) F (x2) Magnet Laptop Tray Laptop Arm G (x2) Laptop Clip... -
Page 4: Included Hardware & Tools
Included Hardware & Tools S-C (x4) M-A (x4) S-A (x1) S-B (x4) M4x8mm Screw M4x12mm Screw Thumbscrew M4x6mm Screw M-B (x4) M-C (x4) M-D (x4) M-E (x4) M4x16mm Screw M5x12mm Screw M5x16mm Screw M5 Washer M-F (x4) T-A (x1) T-B (x1) Spacer 6mm Allen Wrench Wrench... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble one of the Pegboard Hooks (B) to top side of Arm (A) using M4x6mm Screw (S-B) and a Phillips screwdriver. - Page 6 STEP 2 Option 1: Pegboard Supported Insert Arm (A) into pegboard. Assemble the remaining Pegboard Hook (B) to bottom side of Arm using M4x6mm Screws (S-B) and a Phillips screwdriver.
- Page 7 Option 2: Magnet Supported Assemble the Magnet (D) to bottom side of Arm (A) using M4x6mm Screws (S-B) and a Phillips screwdriver. ** WARNING ** Ensure Magnet (D) attaches firmly to the wall. If not, use Option 1 for mounting.
- Page 8 STEP 3 Place Clips (G) through the front of the Laptop Tray (E), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. Front of Tray Front of Tray Back of Tray Prongs...
- Page 9 STEP 3 - Cont’d Press Laptop Arms (F) from the backside of Tray into Prongs on Clips (G), ensuring all four snap into place. Prongs...
- Page 10 STEP 4 Secure VESA Plate (C) to Laptop Tray (E) using M4x8mm Screws (S-C) and a Phillips screwdriver.
- Page 11 STEP 5 Slide VESA Plate (C) onto the Arm (A) and secure using Thumbscrew (S-A).
- Page 12 Adjusting Locking Laptop Arm Length 1. Release Locks: Pull tabs on Locks on the underside of Laptop Arms (F) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Laptop Arms (F) to width of your laptop.
- Page 13 STEP 6 To adjust tilt, manipulate the Adjustment Screw on side of Arm (A) using 6mm Allen Wrench (T-A). Adjustment Adjustment Screw Screw Adjust the Nut on Arm with Wrench (T-B) to raise or lower the mount.
- Page 14 Optional: Monitor Mounting **Complete Standard Assembly Steps 1 and 2 before proceeding** Attach VESA Plate (C) to the back of your monitor using appropriate Screws (M-A thru M-D), Washers (M-E) and Spacers (M-F). Tighten using a Phillips screwdriver. During installation of VESA Plate (C), the Lip should be facing towards the top of your monitor.
- Page 15 Adjust as Desired Attach your monitor to Arm (A). Tighten the Thumbscrew (S-A) until secure. 2 Person Mounting is Recommended To adjust tilt, turn the Adjustment Screw on side of Arm (A) using 6mm Allen Wrench (T-A). Adjustment Adjustment Screw Screw Adjust the Nut on Arm with Wrench (T-B) to raise or lower the mount.
-
Page 16: Last Updated
LAST UPDATED: 7/23/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
