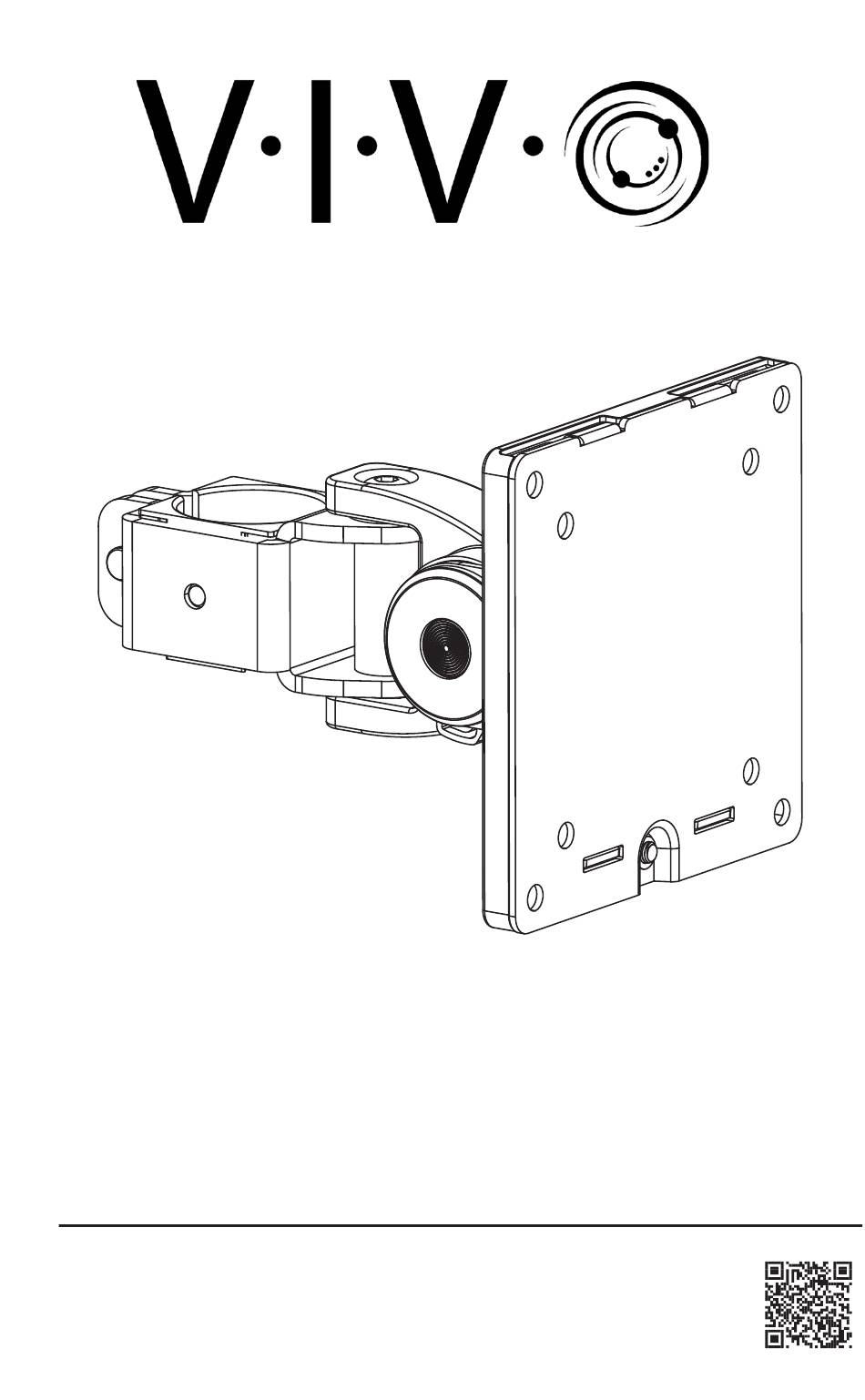

- Page 1 Pole Mount Ultrawide Monitor Bracket SKU: MOUNT-POLE49U Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pole49u...
- Page 2 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x1) VESA Bracket Included Hardware & Tools M-A (x4) M-B (x4) M-C (x4) T-A (x1) M4x12mm M5x12mm M5 Washer 6mm Allen Screw Screw Wrench Tools Needed: Weight Capacity: 44lbs (20kg) Phillips Screwdriver...
- Page 5 ASSEMBLY STEPS STEP 1 1. Slide VESA Bracket (A) onto the intended mounting pole (not provided). 2. Set at desired height and secure using 6mm Allen Wrench (T-A).
- Page 6 STEP 2 Loosen the Thumbscrew (A2) on the back of VESA Bracket (A1), then separate and remove VESA Plate (A3) by pulling out and sliding upwards. Install the VESA Plate (A3) onto the back of your monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) and M5 Washers (M-C), orienting the arrow on the VESA Plates pointing up.
- Page 7 STEP 3 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint Use 6mm Allen Wrench (T-A) to loosen the Tilt Joint Adjustment Screw, located on the side of VESA Bracket (A1). Set Angle Firmly grip the VESA Bracket and adjust to your desired viewing angle, and hold in place.
- Page 8 STEP 4 With the assistance of a second person, line up the VESA Plate (A3) on your monitor with the VESA Bracket (A1) and the Plate Hooks into the pockets of the VESA Bracket. Monitor & VESA Bracket may need to be angled backwards slightly when sliding on. 2 Person Mounting is Recommended *Monitor &...
- Page 9 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint With a hand still on the monitor, use 6mm Allen Wrench (T-A) to loosen the...
- Page 10 STEP 5 Make adjustments as desired on swivel and orientation.
- Page 11 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 12 LAST UPDATED: 04/30/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
