Summary of Contents for Vivo MOUNT-PL1A-LAP3

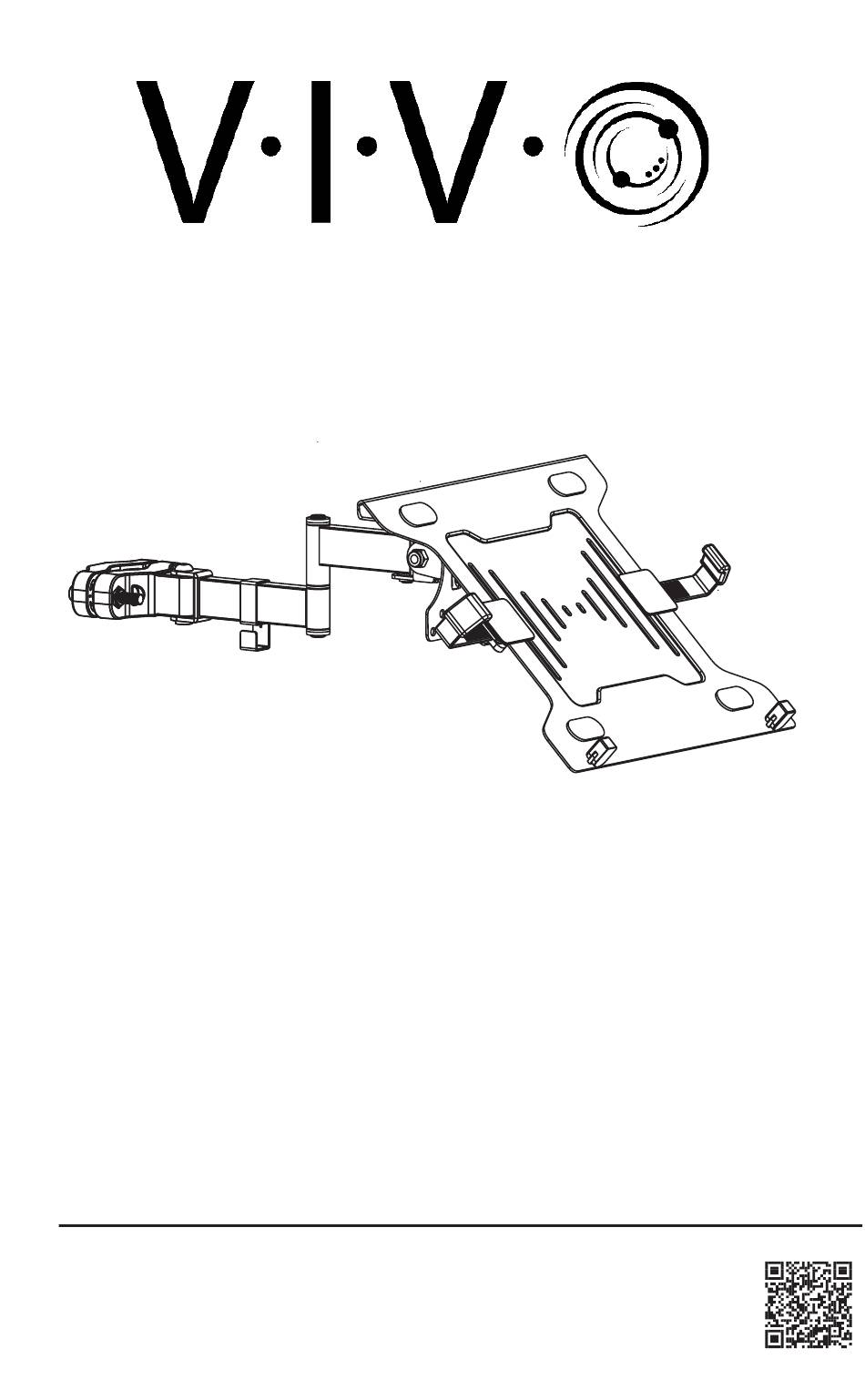

- Page 1 Pole Mount Laptop Holder SKU: MOUNT-PL1A-LAP3 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pl1a-lap3...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents D (x2) A (x1) B (x1) C (x1) Mount VESA Plate Thumbscrew M8x70mm E (x1) G (x1) H (x2) I (x2) Cable Clip Laptop Tray Laptop Arm Cover Included Hardware & Tools S-A (x4) M-A (x4) M-B (x4) M-C (x4) M4x8 M4x12... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Option 1: Thinner Pole 1.1-1.77”(28-45mm) Loosen Clamping Bolts on Mount (A) using 6mm Allen Wrench (F), and slide Mount onto the your pole. Clamping Bolts 1.1-1.77” (28-45mm) Tighten Clalmping Bolts using the 6mm Allen Wrench (F). Install the Cable Clip (E) to the Mount (A). - Page 5 Option 2: Thicker Pole 1.8-2.36”(46-60mm) Remove the pre-installed Clamping Bolts from the Mount (A) and replace with M8x70 Bolts (D). Clamping Bolts Slide Mount onto the your pole. 1.8-2.36” (46-60mm) Tighten Clalmping Bolts using the 6mm Allen Wrench (F). Install the Cable Clip (E) to the Mount (A).
- Page 6 STEP 2 Place Covers (I) through the front of the Laptop Tray (G), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. For monitor assembly, go to page 10.
- Page 7 STEP 2 - Cont’d Press Laptop Arms (H) from the backside of Tray into Prongs on Covers (I), ensuring all four snap into place. Prongs...
- Page 8 STEP 3 Attach Tray assembly to VESA Plate (B) using M4x8 bolts (S-A). Tighten screws using a Phillips screwdriver. STEP 4 Slide the VESA Plate (B) with Laptop Tray (G) onto Mount (A). Secure using Thumbscrew (C).
- Page 9 STEP 5 Adjusting Locking Laptop Arm Length 1. Release Locks: Pull tabs on Locks on the underside of Laptop Arms (H) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Laptop Arms (H) to width of your laptop.
- Page 10 STEP 6 Adjust the tilt and swivel joints with the Allen wrench (F). ±90° Use Cable Clip (E) to organize cables.
- Page 11 Optional: Monitor Mounting **Complete Assembly Step 1 on pages 4-5 before proceeding** STEP 2 Attach VESA Plate (B) to your monitor using appropriate Screws (M-A, M-C), Washers (M-E), and Spacers (M-F). Flat Back Monitor Curved Monitor...
- Page 12 STEP 3 Slide the VESA Plate (B) with monitor onto the Mount (A). Secure with Thumbscrew (C).
- Page 13 STEP 3 Adjust the tilt and swivel joints with the Allen wrench (F). ±90° +30° ±180° -30° Use Cable Clip (E) to organize cables.
-
Page 14: Last Updated
LAST UPDATED: 7/24/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
