5. HANGING THE FAN
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; a downrod and
canopy mounting system and a "close to
ceiling" Canopy ONLY system. The "close-to-
ceiling" installation is recommended in rooms
with less than 8-foot ceilings or in areas where
additional space is desired from the floor to the
fan blades. Once you have selected which
mounting system you will use, proceed with
the following instructions. Where necessary,
each section of the instructions will note the
different procedures to follow for the two types
of mounting.
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig. 5)
Step 2. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 5)
STANDARD CEILING INSTALLATION
Step 1. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig. 6)
Step 2. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 7)
Step 3. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 7)
Sutter Place
UL Listed
outlet box
Ceiling
mounting
bracket
Hook
120V Wires

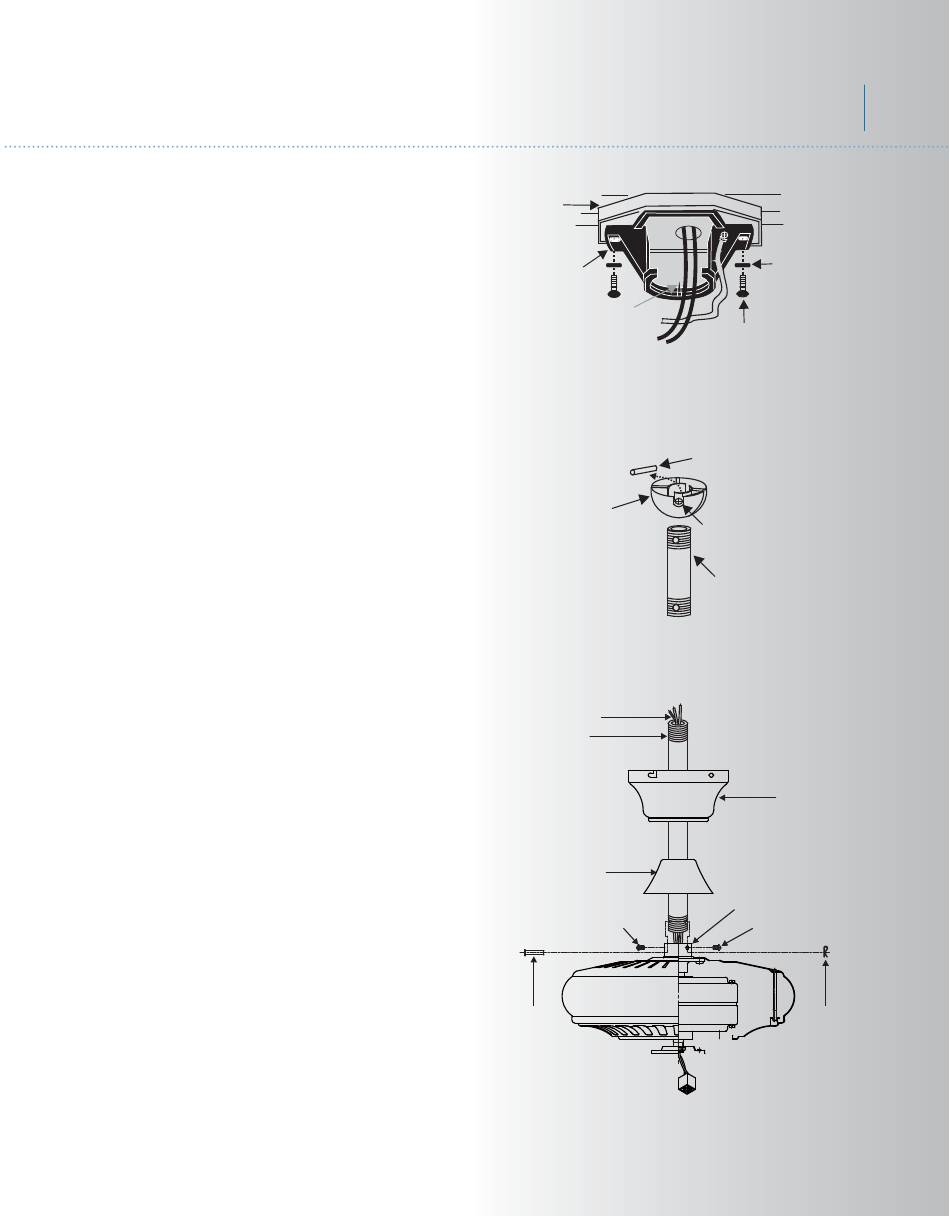

Fig. 5
