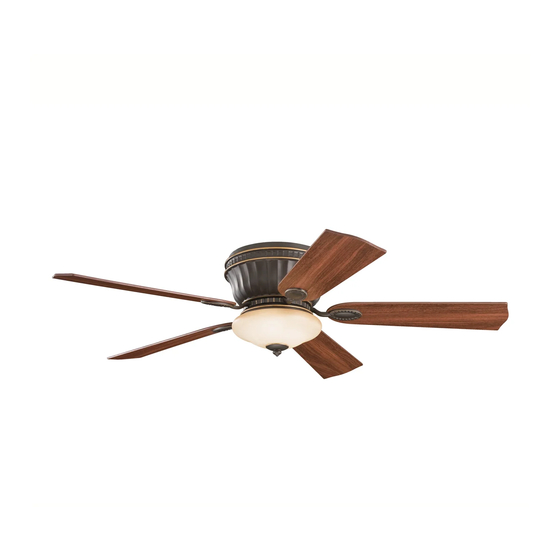

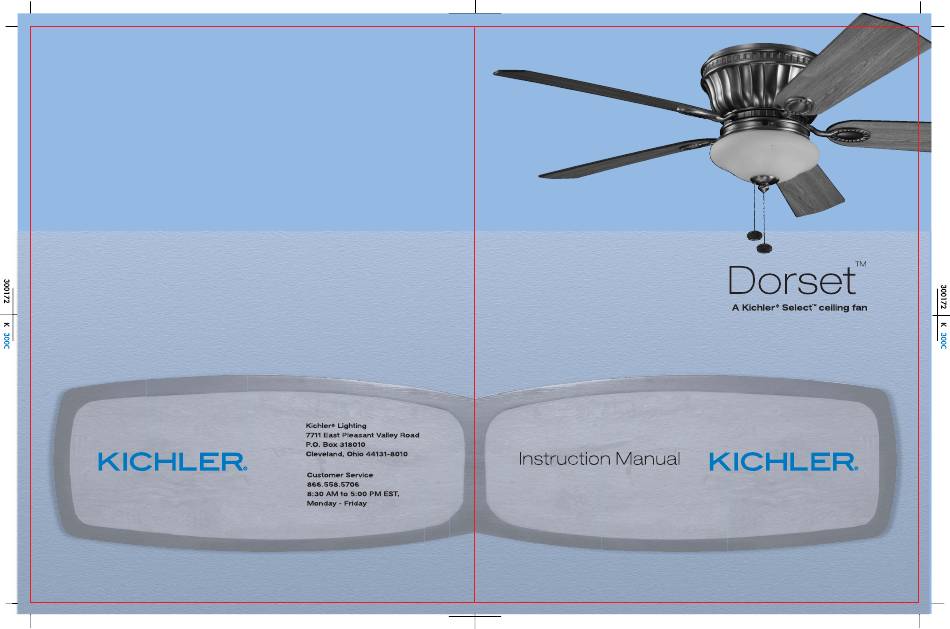

Summary of Contents for Kichler Lighting Select Dorset
- Page 2 1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.
-
Page 3: Tools And Materials Required
Dorset 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Mounting plate Fan motor assembly Motor housing Set of 5 blade brackets and Pre-Installed... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Dorset 5. HANGING THE FAN CUL Listed REMEMBER to turn off the power. Follow the electrial steps below to hang your fan properly: Step 1. Attach the mounting plate to the outlet box with the screws and washers provided Mounting plate with the outlet box. -
Page 6: Make The Electric Connections
7. MAKE THE ELECTRIC CONNECTIONS Power lines 120v Remember to disconnect the power. Green ground Follow the steps below to connect the fan to your household wiring. Use the wire Wiring connecting nuts supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose strands or Ground to mounting... -
Page 7: Finishing The Installation
Dorset 8. FINISHING THE INSTALLATION Step 1. Move fan into position over the four mounting studs and secure with the provided washers and nuts. (Fig. 10) Step 2. Raise the motor housing up against Screws the mounting plate, the four supports inside the housing should be placed against the four studs on mounting plate, twist the housing clockwise until snug. -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided. (Fig. 12) Make sure the blade is straight when set on the blade bracket. Tighten each mounting screw and then repeat this procedure for each Screws blade. -
Page 9: Installing The Light Kit
Dorset 11. INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. - Page 10 13. OPERATING INSTRUCTIONS Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off.
-
Page 11: Troubleshooting
Dorset 14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection.
