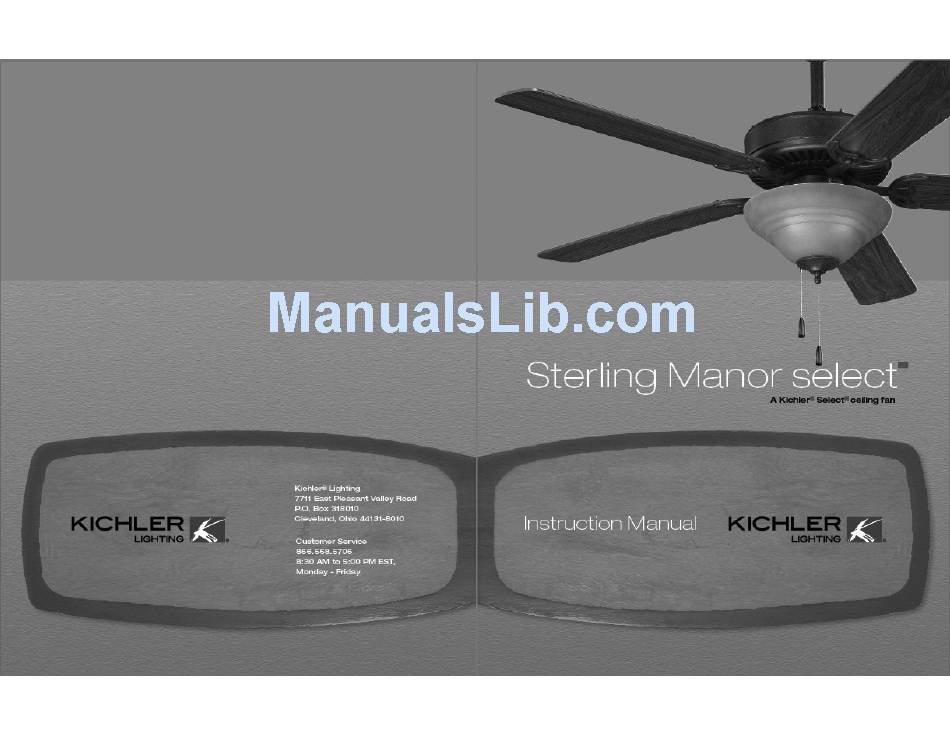

Kichler Lighting sterling manor select Instruction Manual
  1. Manuals
  2. Brands
  3. Kichler Lighting Manuals
  4. Fan
  5. sterling manor select
  6. Instruction manual

Kichler Lighting sterling manor select Instruction Manual

Hide thumbs Also See for sterling manor select:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sterling manor select and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kichler Lighting sterling manor select

Summary of Contents for Kichler Lighting sterling manor select

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.

  • Page 3: Tools And Materials Required

    Sterling Manor Select 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5)

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (CUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers Secure the outlet box directly to the building Outlet box structure.

  • Page 5: Hanging The Fan

    Sterling Manor Select 5. HANGING THE FAN REMEMBER to turn off the power. Follow the Hanger bracket steps below to hang your fan properly: Step 1. Remove the decorative canopy bottom Ceiling cover from the canopy by turning the cover canopy counter clockwise.
  • Page 6 Step 7. Slip canopy cover and canopy onto downrod. Carefully reinstall hanger ball onto rod being sure that cross pin is in correct Downrod position, the set screw on hanger ball is tight Canopy and wires are not twisted. (Fig. 9) Step 8.

  • Page 7: Installation Of Safety Support

    Sterling Manor Select 6. INSTALLATION OF SAFETY SUPPORT (for Canadian Installation ONLY) An additional safety support is provided to prevent the fan from falling fan). Place the end Hanger bracket Attach of cable through the loop of ceiling support safety cable to ceiling joist cable.

  • Page 8: Finishing The Installation

    Figures 13 and 14 illustrate the wiring POWER LINES 120V connections for optional wall control (The wire GREEN color out of wall control may vary, see wall GROUND control's installation manual for correct wire WIRING LIGHT connections.) GROUND TO MOUNTING WARNING: TO REDUCE THE RISK OF FIRE, BRACKET OR DOWNROD...

  • Page 9: Attaching The Fan Blades

    Sterling Manor Select 9. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1 Attach the blade to the blade bracket using the screws, washers and fiber washers as shown in Figure 18. Start screw into bracket.
  • Page 10 11. ATTACHING THE LIGHT BULBS AND GLASS SHADE 1. Install 3 x 40w candelabra bulbs (not included). (Fig. 18) 2. Remove the metal nut. glass cap and decorative nut from the light kit. Place glass shade over the light kit stem, secure with the metal nut (rubber side on the top), glass cap and decorative nut.
  • Page 11 Sterling Manor Select 12. OPERATING INSTRUCTIONS Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off.

  • Page 12: Troubleshooting

    13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds noisy. 1.
