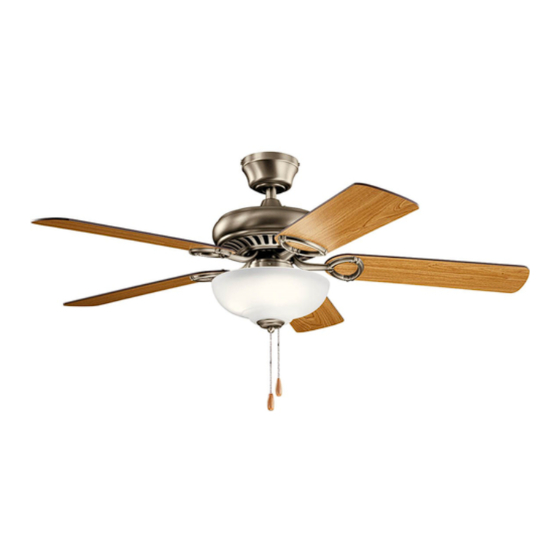

- Page 1 Sutter Place Select ® ™ A Kichler Select ceiling fan Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Instruction Manual Cleveland, Ohio 44131-8010 Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 3: Tools And Materials Required
Sutter Place Select 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mounting bracket Canopy Ball/downrod assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
Sutter Place Select 5. HANGING THE FAN NOTE: This ceiling fan is supplied with two UL Listed outlet box types of hanging assemblies; a downrod and canopy mounting system and a "close to ceiling" Canopy ONLY system. The "close-to- Washers Ceiling mounting ceiling"... - Page 6 Step 4. Slip the coupling cover and the canopy onto the downrod as Figure 7. Thread the hanger ball onto the downrod, insert the cross pin previously removed from Registration slot the ball/downrod assembly through the downrod and tighten. Now tighten the set Check tab screw previously loosened.
-
Page 7: Installation Of Safety Support
Sutter Place Select 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Step 1. Attach the provided wood screw and Ceiling mounting Attach bracket... -
Page 8: Finishing The Installation
8. FINISHING THE INSTALLATION Outlet box STANTARD CEILING INSTALLATION STANTARD CEILING INSTALLATION Screws Step 1. Tuck all the connections neatly into the Ceiling mounting ceiling outlet box. bracket Screws Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting bracket using 4 screws at the top edge of the Canopy mounting bracket. -
Page 9: Attaching The Fan Blades
Sutter Place Select 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach a blade to a blade bracket using the screws, metal washers and fiber washers provided. -
Page 10: Installing The Light Fixture
11. INSTALLING THE LIGHT FIXTURE 1. Remove the plastic plug from the center of the switch housing. Attach the light fixture to Wire connectors the switch housing by feeding the light fixture Lock washer wires (black & white) through the hole in the Switch housing center of the switch housing, then screw the Plug... - Page 11 Sutter Place Select 12. INSTALLING THE LAMPS AND GLASS SHADE 1. Install 3, 40 Watt, E-12 Candelabra lamps (included). 2. Remove the decorative nut, glass cap and metal nut from the light fixture stem. Slip the beaded pull chain into the outside hole in the glass shade then feed the beaded pull chain from thelight fixture stem through the eyelet in the shade.
- Page 12 13. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The "center" pull chain turns the light fixture On and Off. The "outside" pull chain controls the 3 speeds of your ceiling fan. 1 pull = High, 2 pulls = Medium, 3 pulls = Low Fig.
-
Page 13: Troubleshooting
Sutter Place Select 14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
