Summary of Contents for Kichler Lighting Seaside

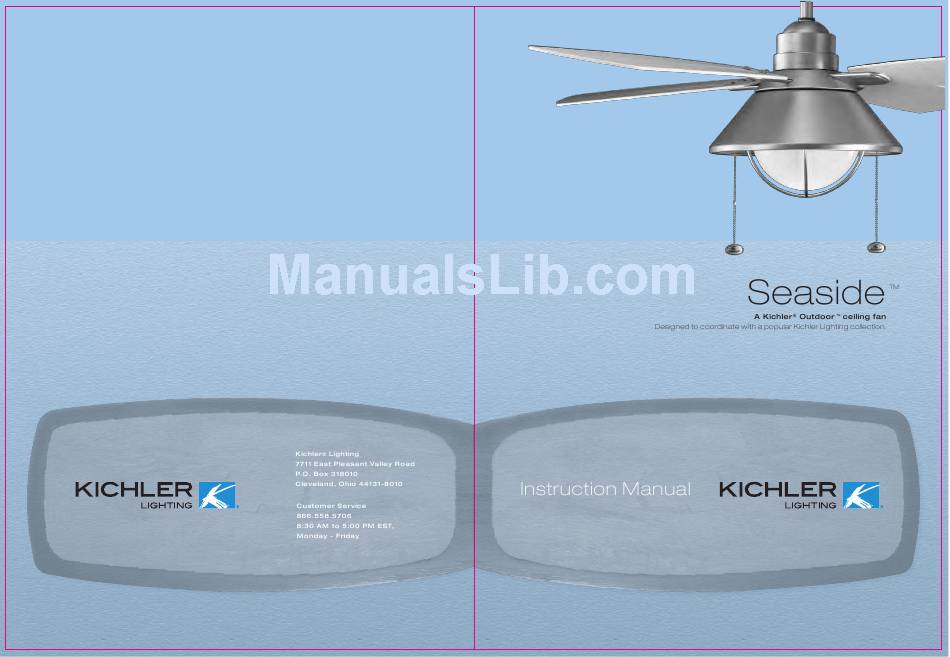

- Page 1 KHA9090112...
- Page 2 1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.
-
Page 3: Table Of Contents
Seaside 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Slot screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Mounting Bracket (1) Canopy (1) Canopy Décor (1) - Page 4 4. MOUNTING OPTIONS If there isn't an existing UL ( CUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure.
-
Page 5: Mounting Bracket
Seaside 5. HANGING THE FAN Listed electrial REMEMBER to turn off the power before you begin. Mounting bracket To properly install your ceiling fan, follow the steps below. Step 1. Pass the 120 volt supply wires from the ceiling Washer outlet box through the center of the ceiling mounting bracket. -
Page 6: Coupling Cover
Step 6. Slip the coupling cover, canopy décor Hanger ball and canopy onto the downrod. Reinstall the hanger ball onto the downrod and make sure the cross pin is in place and the set screw on Canopy hanger ball is tight. (Fig. 8) Step 7. -
Page 7: Screw
Seaside 6. INSTALLATION OF SAFETY SUPPORT Flat Screw Wood Screw ( For Canadian Installation ONLY ) Support Brace Spring Washer A safety support cable is provided to help Outlet Box prevent the ceiling fan from falling, please install Ceiling it as follows. - Page 11 Seaside Warm Weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. 19. This allows you to set your air conditioner on a warmer setting without affecting your comfort. Cool Weather - (Reverse) An upward airflow moves warm air off the ceiling areas as shown in Fig.
- Page 12 13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
