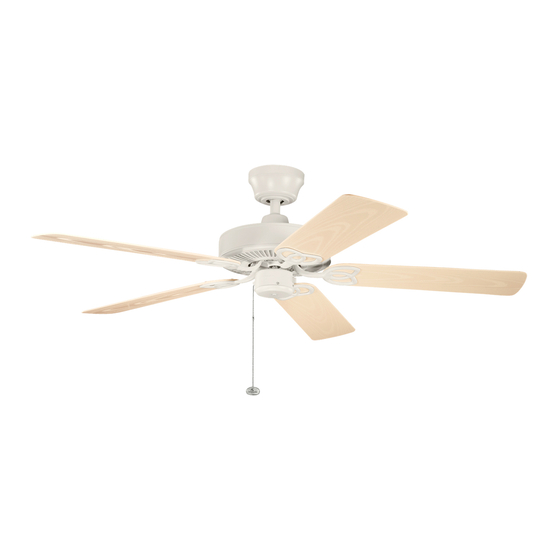

- Page 1 Sterling Manor ™ A Kichler Select deiling fan ® ™ Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 3: Tools And Materials Required
Sterling Manor 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Ceiling mountung bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Sterling Manor 5. HANGING THE FAN CUL Listed NOTE: This ceiling fan is supplied with two electrial types of hanging assemblies; a downrod and Washers canopy mounting system and a "close to Ceiling mounting ceiling" Canopy ONLY system. The "close-to-... - Page 6 Step 4. Slip the coupling cover and canopy onto the downrod as Figure 7. Thread the hanger ball onto the downrod, insert the cross pin previously removed from the ball/downrod assembly through the Registration slot downrod and tighten. Now tighten the set screw previously loosened.
-
Page 7: Electric Connections
Sterling Manor 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Hanger bracket Step 1. Attach the provided wood screw and... - Page 8 8. FINISHING THE INSTALLATION Outlet box STANTARD CEILING INSTALLATION STANTARD CEILING INSTALLATION Screws Step 1. Tuck all the connections neatly into the Ceiling mounting ceiling outlet box. bracket Screws Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting bracket using 4 screws at the top edge of the Canopy mounting bracket.
-
Page 9: Attaching The Fan Blades
Sterling Manor 9. ATTACHING THE FAN BLADES CAUTION: Remove the five rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 16. - Page 10 11. OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the 3 speeds of your ceiling fan as follows: 1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the motor off.
-
Page 11: Troubleshooting
Sterling Manor 12. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy.
