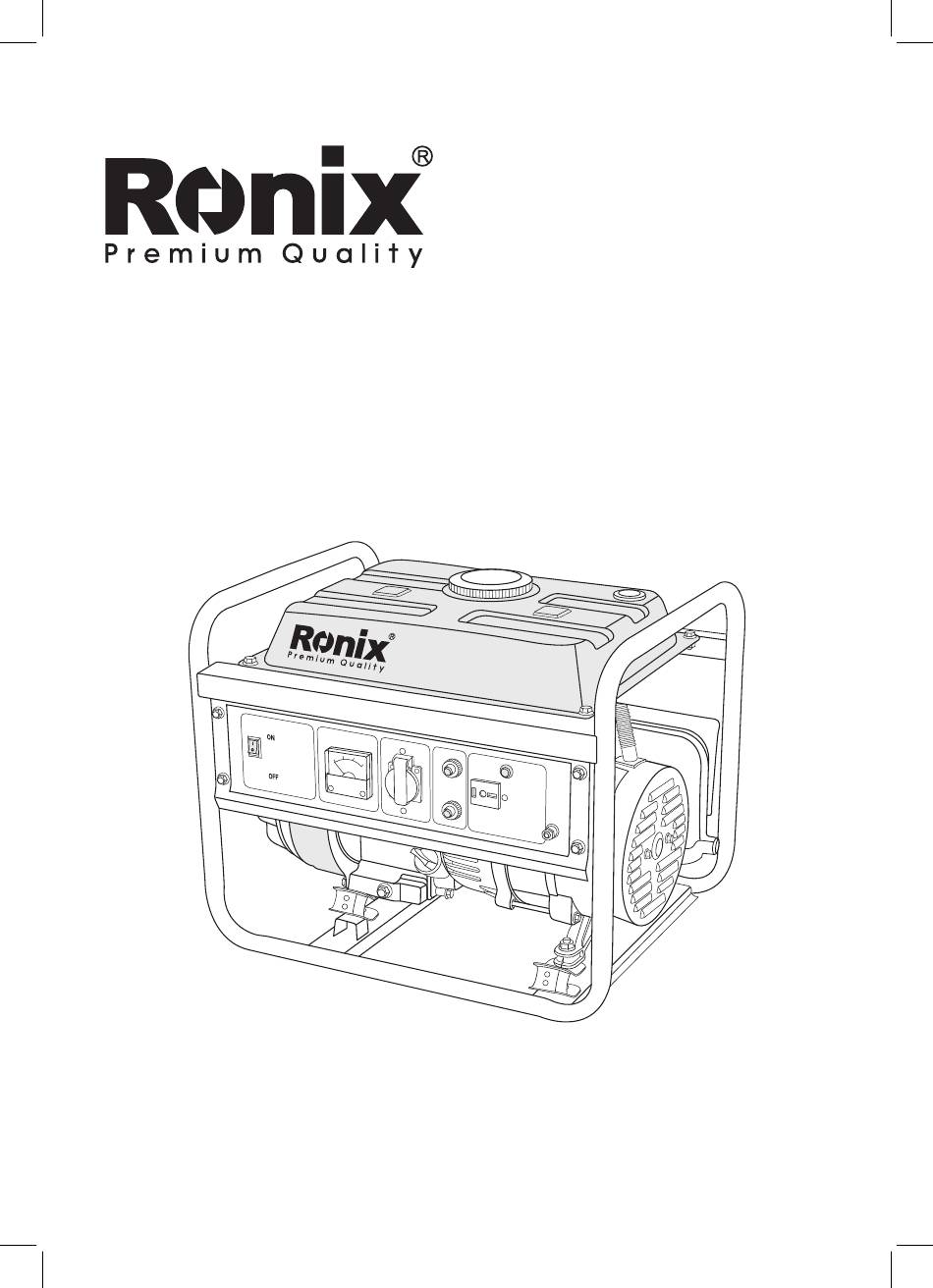

- Page 1 BENZIN-GENERATOR 1200W RH-4703 www.ronixtools.com...
- Page 3 TECHNISCHE DATEN RH-4703 Modell Motormodell LB156F 4-Takt-Luftkühlung Hubraum 98cc Leistung Motor Zündsystem Start Manuell Tankinhalt Dauerbetrieb 9Stunden Kraftstoffart Bleifreies Benzin Generatortyp Einphasig Spannung 220V Frequenz 50HZ Wickelmaterial Kupfer Generator Nennstrom 3.9-4.3A Nennleistung 900-1000W Maximale Leistung 1200W Gleichstromausgang Gewicht 23Kg Stecker, Gleichstromkabel, Enthält...
- Page 4 GERÄTEKOMPONENTEN 1- Kraftstofftank 2- Rahmen 3- Kontrollleuchte 4- Bedienfeld 5- Gleichstromsteckdose 6- Wechselstromlichtmaschine 7- AC-Schutzschalter 8- DC-Schutzschalter 9- AC-Steckdose 10- Voltmeter 11- Motor 12- Motorschalter 13- Tank 14- Schalldämpfer Benzin-Generator 1200W...
- Page 5 GAS-STROMERZEUGER-BEDIENUNGSANLEITUNG Dieser Generator liefert hauptsächlich Strom für Reisen und Übernach- tungen im Freien und verwendet den 154-Benzinmotor unseres Unterneh- mens als Antrieb. Es gibt verschiedene Typen zur Auswahl, z. B. 50 Hz / 220 V. Bevor Sie dieses Gerät in Betrieb nehmen, lesen Sie unbedingt diese Anleitung, um zu verstehen, wie es korrekt bedient wird.
- Page 6 - Überprüfen Sie gemäß der “Vorbetriebsinspektion” im “Handbuch für den A152F-Gasmotor”. TANKINSPEKTION - Befindet sich Benzin im Tank? - Falls nicht, füllen Sie etwa 5 Liter Benzin in den Tank. - Lassen Sie 2-3 cm Platz bis zum oberen Rand des Tanks. GERÄTESTECKER-INSPEKTION - Wurde der Stecker in die AC-Steckdose gesteckt? - Ziehen Sie den Stecker vor dem Betrieb unbedingt ab.
- Page 7 PROBLEME UND WARTUNG DAS GERÄT STARTET NICHT OPTIMAL Bitte überprüfen Sie gemäß dem relevanten Kapitel im “Handbuch für den A154F-Gasmotor”. UNGEWÖHNLICHE SPANNUNG Wenn die Schwankungsrate der Ausgangsspannung mehr als 10 % be- trägt, entfernen Sie das Bedienfeld und tauschen Sie den Kondensator aus.
- Page 8 GASOLINE GENERATOR 1200W RH-4703...
- Page 9 SPECIFICATIONS RH-4703 Model Model LB156F 4stroke air cooled Type engine Displacement 98cc Power Engine Ignition System Start Manual Fuel Tank Capacity Continuous Working Fuel Type Unleaded Petrol Type Single phase Voltage 220V Frequency 50HZ Winding Material Copper Generator Rated Amperage 3.9-4.3A...
- Page 10 PARTS LIST 1- Fuel tank 2- Frame 3- Pilot lamp 4- Control panel 5- Dc socket 6- Alternator 7- AC protector 8- DC protector 9- AC socket 10- Voltmeter 11- Engine 12- Engine switch 13- Tank 14- Muffler Gasoline Generator 1200W...
- Page 11 GAS-GENERATOR SET OWNER’SMANUAL This generator mainly supplies electricity energy for traveling and lodging outdoors etc., using the 154 gasoline engine manufactured by our copany as its power. It has many types for your choice, such as 50Hz/220V. Before operating this set, be sure to read this manual to understand how to correctly operate it.
- Page 12 - Engine inspection - Inspect according to the “Pre operation inspection” in “Owner’s manual for” A152F gas engine” TANK INSPECTION - Is there gasoline in the tank? - If there is no, fill about 5L gasoline into the tank. - Leave 2~3 cm of space to the top of tank. APPARATUS PLUG INSPECTION - Has the plug been put into the AC socket? - Be sure to pull off the plug before running.
- Page 13 - Open the engine switch - Turn speed contror lever to “FAST” side slightly - Close the choke lever - Start the engine - After starting User Manual...
- Page 14 Return the choke lever gradually to the open position, while watching how the set is running. - Adjust the frequency Of the set Turn the speed control lever to “FAST” until the engine speed is stable, then the ftequency will be also stable immediately. -Put the plug to the AC socket STARTING PROCEDURE -Pull the plug off...
- Page 15 - Close the engine switch - Turn speed control lever to “STOP” - Close the fuel cock AC PROTECTOR - The set has safety device. User Manual...
- Page 16 RESET AC PROTECTOR VOLTMETER AC SOCKET PILOTLAMP DC PROTECTOR - The protector switch can bounce up to cut off the output when the apparatus power exceeds the rated power of the set - If the set output has been cut off, please reduce the load within rated output, then press the switch to the position “reset”, the set will continue to work.
- Page 17 VOLTAGE IS UNUSUAL If the fluctuation rate of the out voltage exceeds 10%, please take off the control panel, then change the capacitor. (You may search for helping from the distributor.) FREQUENCY IS MUCH HIGHER OR LOWER Turn speed control lever to the position “FAST”, then take the “portable” speed-meter near the high pressure line, and adjust the engine speed control bolt with the hand screwdriver at the same time, until the indicating amount is within 3100~3180rpm for the 50Hz set...
- Page 20 www.ronixtools.com...
