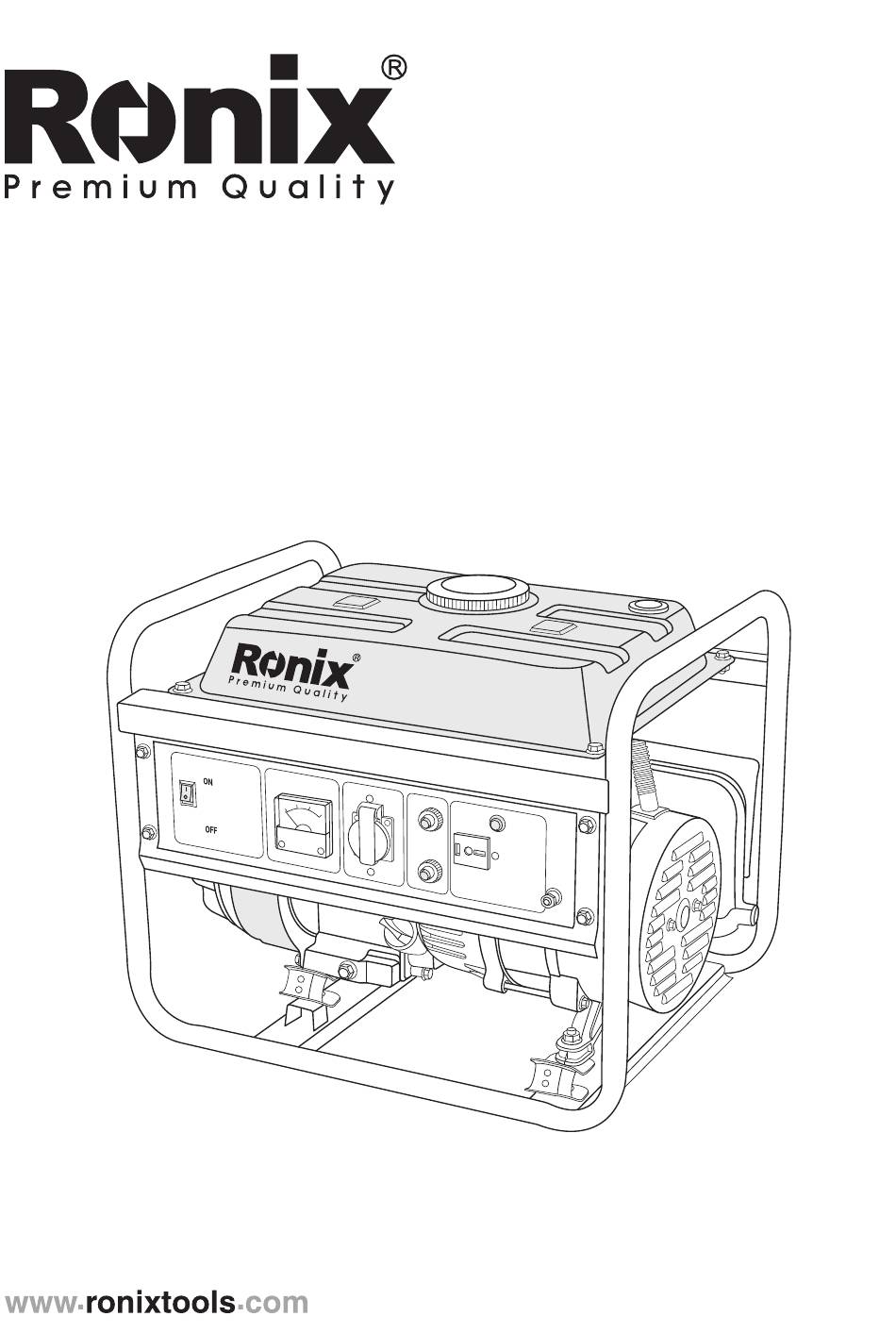

- Page 1 GASOLINE GENERATOR 1200W RH-4703...
-
Page 2: Specifications

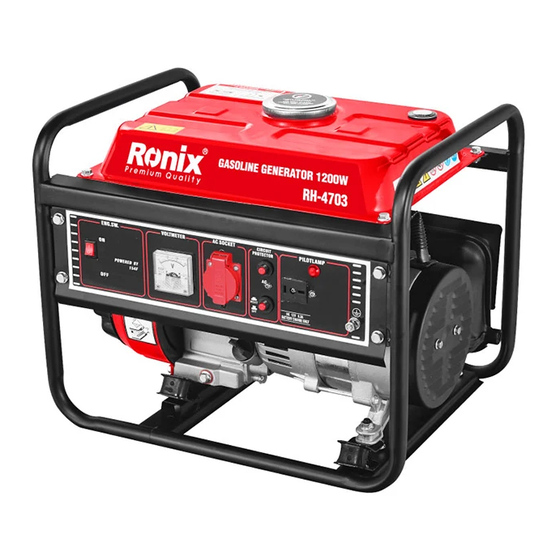

SPECIFICATIONS Type Single Phase Voltage 220V Generator Max Power 50Hz 1200W Rated Power 900-1000W Model LB156F Type 4stroke Air Cooled Engine Displacement 98cc Engine Fuel Unleaded gasoline Fuel Tank Capacity Net weight 23Kg PARTS LIST USER MANUAL... - Page 3 1- Fuel tank 2- Frame 3- Pilot lamp 4- Control panel 5- Dc socket 6- Alternator 7- AC protector 8- DC protector 9- AC socket 10- Voltmeter 11- Engine 12- Engine switch 13- Tank 14- Muffler GAS-GENERATOR SET OWNER’SMANUAL This generator mainly supplies electricity energy for traveling and lodging outdoors etc., using the 154 gasoline engine manufactured by our copany as its power.
-
Page 4: Component Names
- Avoid touching the set with wet hands while it is running! - Never operate the set in the rain or snow! - Keep away from the fire and heat when the set is running or storied! - Don’t connect the set to commercial power outlet, and don’t connect one set to another one! - Before starting do not connect electric apparatus. -
Page 5: Starting Procedure
APPARTUS POWER INSPECTION - The power of the apparatus should not exceed the output of the set, or the set could be damaged! STARTING PROCEDURE - Before starting, please inspect according to the chapters of “SAFE USE” and “PRE-OPERATION INSPECTION”, then do as the following! - Open the fuel cock - Open the engine switch - Turn speed contror lever to “FAST”... - Page 6 - Close the choke lever - Start the engine - After starting Return the choke lever gradually to the open position, while watching how the set is running. - Adjust the frequency Of the set Turn the speed control lever to “FAST” until the engine speed is stable, then the ftequency will be also stable immediately.
- Page 7 STARTING PROCEDURE -Pull the plug off - Turn speed control lever to “SLOW” keep the engine running for 1~2 minutes. - Close the engine switch - Turn speed control lever to “STOP” GASOLINE GENERATOR 1200W...
- Page 8 - Close the fuel cock AC PROTECTOR - The set has safety device. RESET AC PROTECTOR VOL TMETER AC SOCKET PILOTLAMP DC PROTECTOR - The protector switch can bounce up to cut off the output when the apparatus power exceeds the rated power of the set - If the set output has been cut off, please reduce the load within rated output, then press the switch to the position “reset”, the set will continue to work.
-
Page 9: Application Range
APPLICATION RANGE Volt Output Apparatus Power Factor 50Hz 0.7~0.8 50Hz 0.7~0.95 50Hz TROUBLES AND MAINTENANCE THE SET WON’T START FAVORABLY Please inspect according to the relevant chapter in “Owner’s manual for A154F gas-engine” VOLTAGE IS UNUSUAL If the fluctuation rate of the out voltage exceeds 10%, please take off the control panel, then change the capacitor.
