Ronix RH-4774 Manual

Compact inverter generator 10000w
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

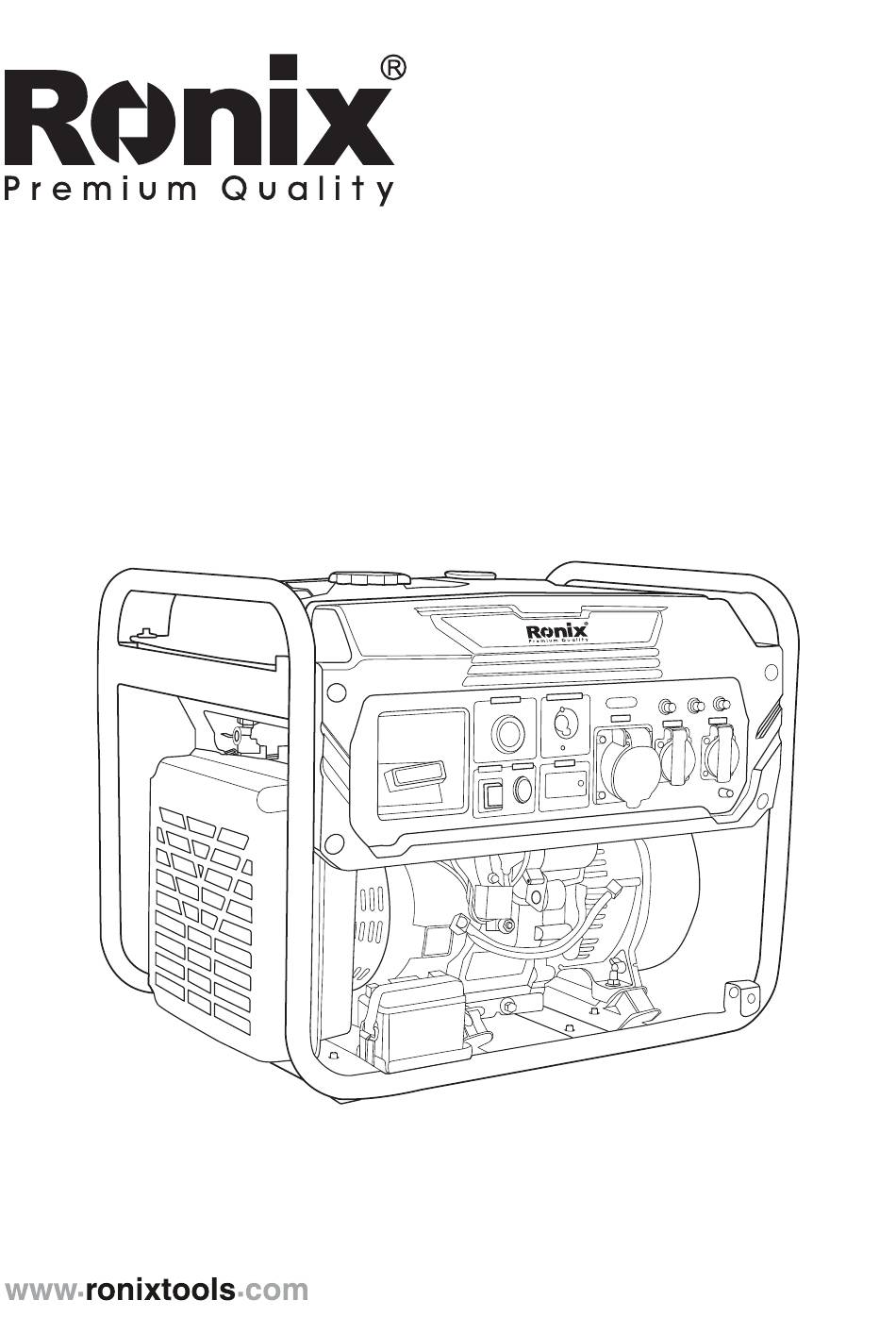

COMPACT INVERTER
GENERATOR 10000W
RH-4774

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-4774 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix RH-4774

Summary of Contents for Ronix RH-4774

  • Page 1 COMPACT INVERTER GENERATOR 10000W RH-4774...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION Model RH-4774 Type 192FB-V Displacement 460CC Rated Power 18.5HP Ignition System T.C.I Engine Start Type Hand Start/Electric starting Fuel Tank Capacity Continuous Working Fuel Type Gasoline Type Open frame inverter generator Rated Voltage 230V Frequency 50Hz Generator Winding Material...

  • Page 4: Part List

    PART LIST tank Frame Fuel Tank Cap Fuel Starter Puller Control Panel Air cleaner Oil Filler Battery Cylinder Head Cover Carburetor Muffler Comp This operator's manual includes all relevant information, please read it carefully. operator's manual includes all relevant information, please read it carefully.

  • Page 5: User Responsibility

    some labels and this operator’s manual. These messages alert you to notice potential hazards that could harm you and others. YOU WILL FIND IMPORTANT SECURITY INFORMATION IN MANY FORMS, INCLUDING: 1- Safety label- pasted on the generator set. 2- The significance of these three warning words: DANGEROUS: If not follow these notices, it will be a risk of personal injury or death.

  • Page 6: Electric Shock Hazard

    - Understand the purpose of all generator controls, output sockets and connectors. - Ensure proper instructions are given to any operator. Do not allow children to operate the generator without parental supervision. - Before starting the generator every time, be sure to do the pre-operation inspection, to avoid personal injury and equipment damage.

  • Page 7: Refueling Precautions

    professional electrician has installed a protective switch in front of the building. FIRE OR BURN HAZARD - The high temperatures caused by the exhaust system are high enough to ignite some materials. - Place the generator at least 1 meter away from buildings or other equipment during operation.

  • Page 8: Preparation Before Operation

    PREPARATION BEFORE OPERATION ARE YOU READY? Your own safety is your responsibility and taking the time to prepare will greatly reduce the risk of injury. FUNCTION UNDERSTANDING Read and understand this user manual, and master the functions and operations of the control panel. Familiarize yourself with the generator and its operation before use.

  • Page 9: Generator Operations

    ENGINE CHECK Check the oil level, a low oil level will cause the oil warning system to stop the engine. Check the air filter, a dirty air filter will block air from entering the carburetor, reducing engine and alternator performance. Check the fuel level, start the engine after the fuel tank is full can help avoid frequent stoppages for refueling.

  • Page 10: Start The Generator

    - Make sure that the amperage of the tools and equipment does not exceed the amperage of the generator, be careful not to exceed the maximum output power of the generator, and the operating time between the rated value and the maximum value output power does not exceed 30 minutes.
  • Page 11 NOTICE: If it is a single three-phase generator, the voltage transfer switch is in the required load voltage gear. If it is not in the voltage gear of the required load, it can be manually switched to the required load gear. STEP 2 Keep the oil switch in the "ON"...

  • Page 12: Stop The Generator

    NOTICE: After starting, do not let the starting handle suddenly bounce back. Instead, gently place the handle back to protect the starter from damage. Do not let the starter rope rub against the engine, otherwise the rope will be damaged and broken. STEP 4 Turn on the air switch or circuit breaker to start power transmission.
  • Page 13 NOTICE: Large overloads will damage the generator. Slight overloading also has the potential to reduce the life of the generator. 1- Start the generator. 2- Connect electrical equipment, most electric devices require more power than the rated value to start. 3- Press the air switch or circuit breaker to the "ON"...

  • Page 14: Backup Power

    NOTICE: Before using the generator, please check whether the generator model is single-phase or three-phase (three-phase with "S"). If it is a three-phase generator, it is not recommended to use single-phase output when using three-phase output; When using single-phase output, the power of a three-phase generator shall not exceed one-third of the total power.

  • Page 15: Generator Maintenance

    the frame components of the generator with the grounding terminal of the AC output socket. The grounding system is not connected to the AC center line. If a socket circuit detector is used to detect the generator, the displayed grounding circuit condition will be different from that of a household socket.

  • Page 16: Maintenance Safety

    WARNING! Improper maintenance or incorrect problem-solving before operation may cause functional impairments and result in personal injury or death. Please always follow the inspection and maintenance recommendations and schedules listed in this user manual. Our dealer is very familiar with the performance of the generator and has complete equipment to maintain and repair it.
  • Page 17 the necessary tools and techniques. To reduce the possibility of fire or explosion, please be particularly careful when working in areas with gasoline. Try to use non combustible solutions instead of gasoline to clean components as much as possible. Keep fuel related components away from cigarette butts, sparks, etc. Every First Every 3...

  • Page 18: Power Plug

    the proper tools and good technique. Refer to the EF Power Service Manual for service and maintenance work. 3- When used for commercial purposes, record the hours of operation to determine the time interval for maintenance. TOOLS A spark plug socket is provided with the alternator. Please use the provided tools for maintenance and repair.

  • Page 19: Engine Oil Level Check

    stopped running, let it cool first. Be careful not to let the fuel spill when refueling. Do not add more fuel than the upper limit oil level mark on the fuel filter. Tighten the fuel tank cap after refueling. Do not refuel the generator indoors as gasoline and gas may come into contact with flames or sparks, causing a fire.

  • Page 20: Engine Oil Change

    Oil Filler Port Oil Gauge. Upper limit When the oil level falls below the safe minimum, the oil alarm system will automatically stop the engine. To avoid any inconvenience caused by unexpected shutdown, please regularly check the oil level. ENGINE OIL CHANGE Drain the engine oil when the engine is warm, to ensure fast and complete draining of the engine oil.

  • Page 21: Engine Oil Recommendation

    Sealing Ring Upper Limit Oil Gauge Oil Unloading Bolt ENGINE OIL RECOMMENDATION Engine oil is a major factor affecting engine performance and service life. °C Please use 4-stroke gasoline engine oil that meets or exceeds the requirements of API classification SE grade or equivalent. Please pay attention to checking the API classification label on the oil packaging to ensure it carries letters of SE or equivalent level.
  • Page 22 2- Separate the snap on the upper part of the filter cover and remove the air filter cover, taking care not to damage it. 3- Remove the filter element from the air filter box. 4- Check if the air filter element is clean and intact. If the air filter element is dirty, clean it according to the description previously.

  • Page 23: Spark Plug Maintenance

    specified in the maintenance schedule. 1- Clean the filter element with warm soapy water, rinse and air dry, or clean the filter element with a non flammable solution and air dry. 2- Insert the filter element into clean engine oil and then squeeze out excess oil.
  • Page 24 tight Spark Spark pluge plug cap loose Spark plug cap 3- Check the spark plug. If the electrode is worn or the insulation porcelain is broken, a new spark plug needs to be replaced. 4- Measure the spark plug electrode gap using a feeler gauge. Improper spark plugs can cause engine damage.

  • Page 25: Battery Maintenance

    If it is a used spark plug, tighten it by an additional 1/8-1/4 turn after tightening the spark plug. If it is a new spark plug, tighten it by an additional 1/2 turn after tightening the spark plug. NOTICE: Inadequate spark plug tightening can cause engine overheating and damage.

  • Page 26: Storage Preparation

    In the body Drink a large amount of water or milk and immediately take medical measures. STORAGE STORAGE PREPARATION Proper storage preparation is important to keep the generator in trouble free and good looking condition. The following steps will help prevent damage to the function and appearance of the generator from rust and corrosion, and make it easy to start the generator when it is reused.

  • Page 27: Engine Oil

    If the gasoline added to the fuel tank is not fresh enough, the fuel will deteriorate within a few months or even a shorter period of time Oil unloading screw DRAIN THE GASOLINE FROM THE FUEL TANK AND CARBURETOR. 1- Check if the fuel valve is closed. 2- Place a suitable gasoline container under the carburetor and use a funnel to prevent gasoline from splashing out.

  • Page 28: Storage Precautions

    5- Reinstall the spark plug. 6- Gently pull up the starter handle until resistance is felt. At this point, the piston is on the compression stroke and both the inlet and exhaust valves are closed. Storing the engine in this state can help prevent internal corrosion.
  • Page 29 TRANSPORT If the generator has been run prior to transport, let the generator to cool for at least 15 minutes before loading it on the transport vehicle. If the engine and exhaust system are hot, people could be burned or certain fuels could be ignited.
  • Page 30 Take the generator to our dealer or refer ignition failure; fuel valve blockage, to the service manual etc. Fuel filter failure; carburetor failure; Take the generator set to the RONIX ignition Power dealer or refer to the service failure; fuel valve blockage, etc. manual...
  • Page 31 Disconnect running equipment and temporarily stop the engine. Make sure to disconnect all equipment and close A short circuit occurs when the the circuit breaker before starting, and output current then restart the generator. If there is still a short circuit in the generator, send the generator to the our dealer.
