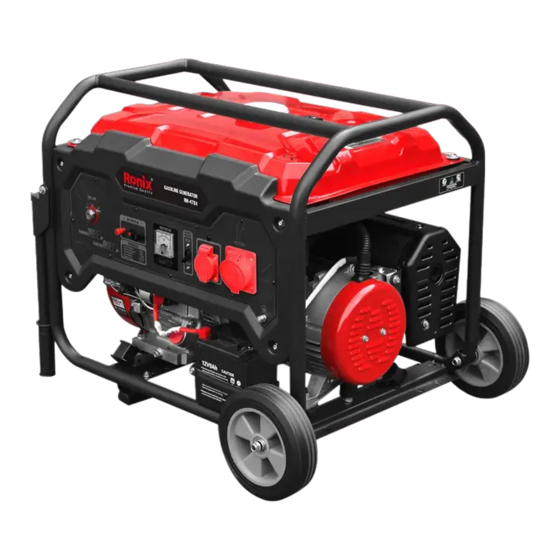

GASOLINE GENERATOR 7500W
RH-4784

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-4784 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix RH-4784

Summary of Contents for Ronix RH-4784

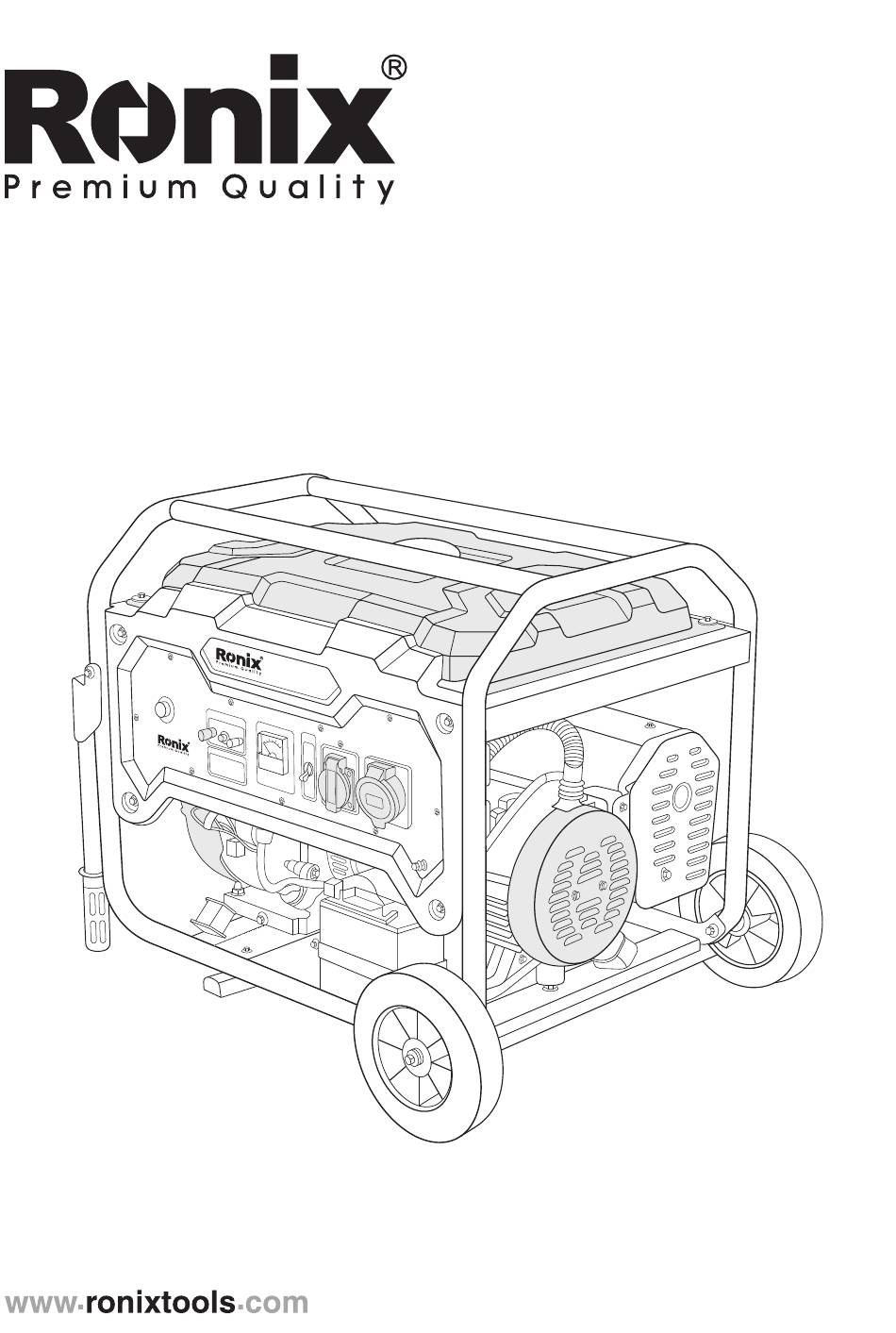

  • Page 1 GASOLINE GENERATOR 7500W RH-4784...

  • Page 2: Specifications

    SPECIFICATIONS Model RH-4784 Type Gasoline Generator AC Voltage 220V Rated Amperage Frequency 50Hz Generator Max.Output 7.5KW Rated Output Power Factor DC Output DC12V,8.3A Model FC192F Single Cylinder Type 4 - stroke, forced air cooled Bore×Stroke 92mm×69mm Displacement 460cc Max.Output 10KW / 3600RPM...

  • Page 3: Parts List

    Net Dimension L×W×H 686mm×516mm×560mm Overall Dimension L×W×H 740mm×575mm×625mm Dimension Net Weight 86Kg Gross Weight 88Kg Supplied in Carton 2 Plug, 1 Spark Plug Sleeve, Include 1 Rod,12V DC Output Clip, 2 Key,1 Set Wheels and Handles PARTS LIST 1- Fuel tank 2- Voltmeter 3- Engine switch 4- DC socket...

  • Page 4: Safety Information

    8- AC socket 9- Battery 10- Generator 11- Wheel 12- Frame 13- Control panel SAFETY INFORMATION Generators are designed to give safe and dependable service if operated according to instructions. Read and understand this owner’s manual before operating your generator. You can help prevent accidents by being familiar with your generator’s controls, and by observing safe operating procedures.

  • Page 5: Electric Shock Hazards

    ELECTRIC SHOCK HAZARDS - The Generator produces enough electric power to cause a serious shock or electrocution if misused. - Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution.

  • Page 6: Recoil Starter

    Electric Start RECOIL STARTER To start the engine, pull the starter grip lightly resistance is felt, then pull briskly. NOTICE: Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter. FUEL VALVE LEVER The fuel valve is located between the fuel tank and carburetor.

  • Page 7: Choke Rod

    Choke Lever Open Closed CHOKE ROD The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke lever manually. Pull the rod out toward CLOSED to enrich the mixture for cold starting.
  • Page 8 Electric Start CONNECTIONS TO BUILDING ELECTRICAL SYSTEM Connections for standby power to a building electrical system must be made by a qualified electrician. The connection must isolate the gener- ator power from utility power, and must comply with all applicable laws and electrical codes.

  • Page 9: Pre-Operation Check

    that of the generator. Never exceed the maximum power rating of the generator. Power levels between rated and maximum may be used for no more than 30 minutes. NOTICE: Substantial overloading will open the circuit breaker. Exceeding the time limit for maximum power operation or slightly overloading the generator may not switch the circuit breaker OFF, but will shorten the service life of the generator.
  • Page 10 life. Non-detergent and 2-stroke engine oils will damage the engine and are not recommended. SAE Viscosity Grades 10W - 30 5W - 30 100� -20 -10 30 40� Ambient Temperature Check the oil level BEFORE EACH USE with the generator on a level surface and the engine stopped.
  • Page 11 FUEL Check the fuel gauge, and refill the tank if the fuel level is low. Refuel carefully to avoid spilling fuel. Do not fill above the shoulder of the fuel strainer. WARNING! Gasoline is highly flammable and explosive, and you can be burned or seriously injured when refueling.

  • Page 12: Starting The Engine/Stopping The Engine

    If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If spark knock or pinging persists, see an authorized to manual. NOTICE: Running the engine with persistent spark knock or pinging is misuse, and the Distributor’s Limited Warranty does not cover parts damaged by misuse.
  • Page 13 SERVICE Always do as the following so as to keep the generator in a sound condition. WARNING! 1- If the generator is to supply tow or above loads to the earth or the Recreational with power supply, be sure to connect them one with higher start current fist.

  • Page 14: Maintenance

    electric appliances to the generator. Connecting methods are illustrated as follow. Correct Correct Forbidden When connect the generator home power supply, be sure that a skilled electrician dose this job. Improper connecting between the generator and loads may cause damage to the generator, even a fire. MAINTENANCE THE IMPORTANCE OF MAINTENANCE Good maintenance is essential for safe, economical, and trouble-free...

  • Page 15: Carbon Monoxide Poisoning From Engine Exhaust

    CARBON MONOXIDE POISONING FROM ENGINE EXHAUST. Be sure there is adequate ventilation whenever you operate the engine. BURNS FROM HOT PARTS. Let the engine and exhaust system cool before touching. INJURY FROM MOVING PARTS. - Do not run the engine unless instructed to do so. - Read the instructions before you begin, and make sure you have the tools and skills required.

  • Page 16: Engine Oil Change

    Check-  Idle speed adjust Check- Valve  adjust clearance Combustion Clean After every 500Hrs. (2) chamber Fuel tank and  Clean filterchamber Check Every 2 years (Replace if necessary) (2) Fuel tube 1- Service more frequently when used in dusty areas. 2- These items should be serviced by an authorized generator dealer, unless the owner has the proper tools and is mechanically proficient.

  • Page 17: Air Cleaner Service

    Wash your hands with soap and water after handing used oil. Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local service station or recycling center for reclamation. Do not throw it in the trash, pour it on the ground, or down a drain.

  • Page 18: Fuel Sediment Cup Cleaning

    Clip Element Air Cleaner Element Cover Clip FUEL SEDIMENT CUP CLEANING The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned. 1- Turn the fuel valve lever to the OFF position.

  • Page 19: Spark Plug Service

    SPARK PLUG SERVICE In order to service the spark plug, you will need a spark plug wrench (commercially available). RECOMMENDED SPARK PLUGS: F7TC To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler.
  • Page 20 Never use spark plug which have an improper heat range. Use only the recommended spark plugs or equivalent. TRANSPORTING/STORAGE When transporting the generator, turn the engine switch and the fuel valve OFF. Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
  • Page 21 STORAGE 1- Drain the carburetor by loosening the screw. Drain the gasoline into a suitable container. Drain Screw 2- Change the engine oil . 3- Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug.
