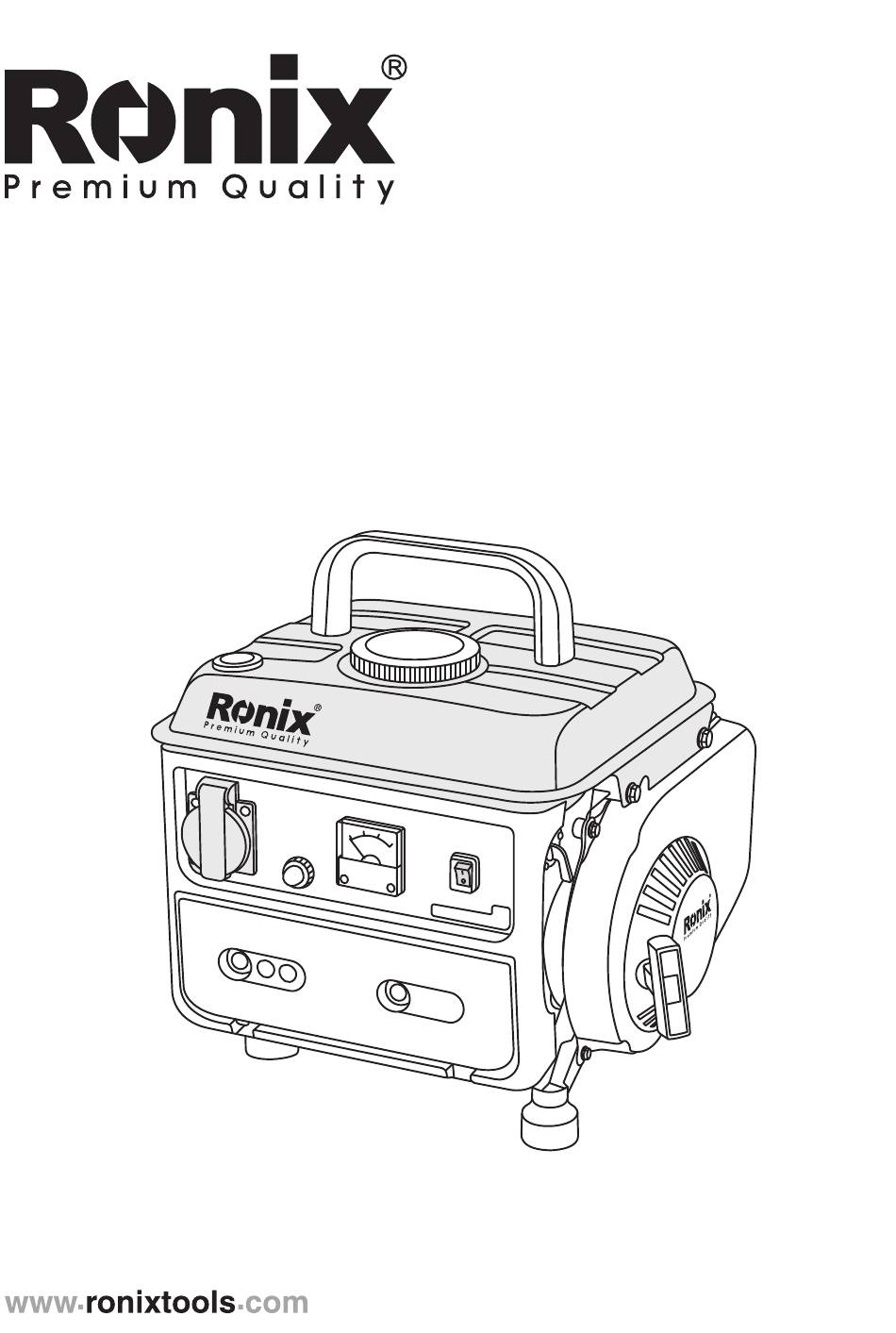

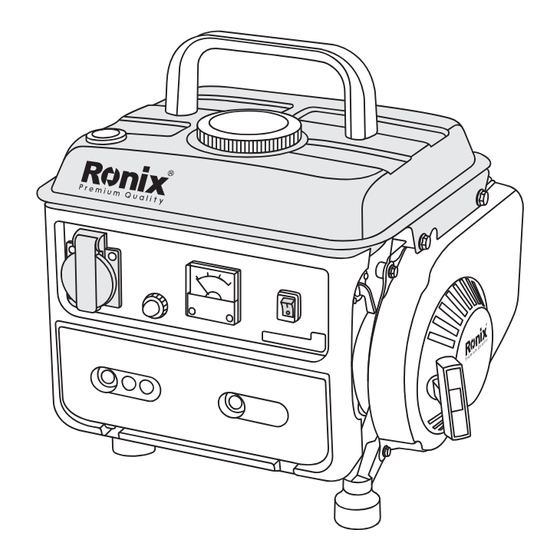

- Page 1 GASOLINE GENERATOR 800W RH-4702...
-
Page 2: Specifications
SPECIFICATIONS Model RH-4702 Model LBIE45F Displacement 63cc Rated Power 2.5 HP Engine Ignition System Start Model Manual Fuel Tank Capacity Frequency 50Hz Rated Voltage 220V Rated Amperage 2.8A Generator Rated Power 650W Max Power 800W Weight 16Kg USER MANUAL... -
Page 3: Parts List
PARTS LIST 1- Fuel Tank Cap 2- Socket 3- Voltmeter 4- Choke Lever 5- Base 6- Manual Start 7- Engine Switch 8- Handle DEAR CUSTOMERS: Welcome to use our products. Please read carefully the operation instructions before operation, so as to avoid unnecessary troubles to you. GASOLINE GENERATOR 800W... -
Page 4: Preparation Before Operation
SAFETY KNOWLEDGE - To prevent exhaust poisoning, it is forbidden to operate the machine indoor or in places badly ventilated. - To prevent exhaust poisoning and fire accident, the exhaust pipe should not face buildings or equipments when exhausting. - To prevent fire accident, engine must be shut down before oiling. - To prevent fire accident, overflowed fuel oil must be wiped clean. - Page 5 - How to prepare blending gas - As the figure, measure the volume of engine oil with the fuel tank cap. - Pour gas and engine oil into one vessel in proportion of 50:1 (One tank gas plus engine oil of one fuel tank cap) - Pour into fuel tank after shaking up.
- Page 6 - Before starting the engine, shake the fuel tank. ACOUT - Move the controlling bar of fuel switch to the position ON. - Move the throttle handle to the starting position of (1). - Set the engine switch at the position of ON. USER MANUAL...
- Page 7 - Pull the recoiling starter slowly till it is closed tightly, and then pull it sharply. - After starting of engine, move the throttle handle slowly back to the position Run. SHUTDOWN OF ENGINE 1. Before stopping, the electric devices must be shut off. ACOUT - Turn the starting switch to the position of OFF.
- Page 8 - Move the controlling bar of fuel switch to the position OFF. WIRING - Wind the electric wire on handle grip for 2-3 circles. - Start the engine. - Safety devices - If the protector of AC alternating current is closed, the output load should be decreased, and press the restoration button to reseat the protector.
-
Page 9: Periodical Maintenance
PERIODICAL MAINTENANCE - Ignition plug (Cycle: every 50 hours or every month) - Take down the ignition plug. - Clear away the accumulated charcoal. - Check the condition of fading in color. Standard: Olive brown - Check the gap of ignition plug Standard: 0.7-0.8mm GASOLINE GENERATOR 800W... -
Page 10: Oil Strainer
AIR CLEANER (CYCLE: EVERY 150 HOURS OR EVERY MONTH) - Take down the air cleaner. - Clean it by washing in dissolvent. - Add some engine oil (SEA20) - Squeeze out engine oil. WARNING! Do not start the engine without air cleaner. OIL STRAINER (CYCLE: EVERY 150 HOURS AND EVERY 3 MONTHS) - Stop the engine... - Page 11 - Clean it by washing in dissolvent. - Wipe it clean. - Insert it into fuel tank GASOLINE GENERATOR 800W...
-
Page 12: Application Range
APPLICATION RANGE Electric Devices Maximum Load Power Factor 800 W 600 W 0.7-0.8 700 W 0.7-0.95 TROUBLESHOOTING WHEN ENGINE IS NOT ABLE TO START - Check fuel oil. - Check the engine switch. - Check the ignition plug. - If the engine is still not able to start, check the following conditions: - Check if the fuel switch is blocked.
