Montageanleitung
Montageanleitung
CombiTac uniq
Fork connector CT-GSR5
Inhalt
Sicherheitshinweise ���������������������������������������������������������������2 – 3
Erforderliches Werkzeug ��������������������������������������������������������������4
Ausrichtung der Kontaktträger �����������������������������������������������������4
Montage der Leitung �������������������������������������������������������������������5
Montage der Kontakte �����������������������������������������������������������������5
Demontage der Kontakte �������������������������������������������������������������7
Notizen ����������������������������������������������������������������������������������������8
Buchse
Socket
Buchsenträger
Socket carrier
MA213-12 (de_en)
MA000 (de_en)
Assembly instructions
Assembly instructions
CombiTac uniq
Fork connector CT-GSR5
Content
Safety Instructions �����������������������������������������������������������������2 – 3
Tools required ������������������������������������������������������������������������������4
Orientation of the contact carriers ������������������������������������������������4
Lead assembly ����������������������������������������������������������������������������5
Contact assembly ������������������������������������������������������������������������5
Contact disassembly �������������������������������������������������������������������7
Notes ������������������������������������������������������������������������������������������8
Stecker
Plug
Steckerträger
Plug carrier
Sicherungsbügel
Retaining clip

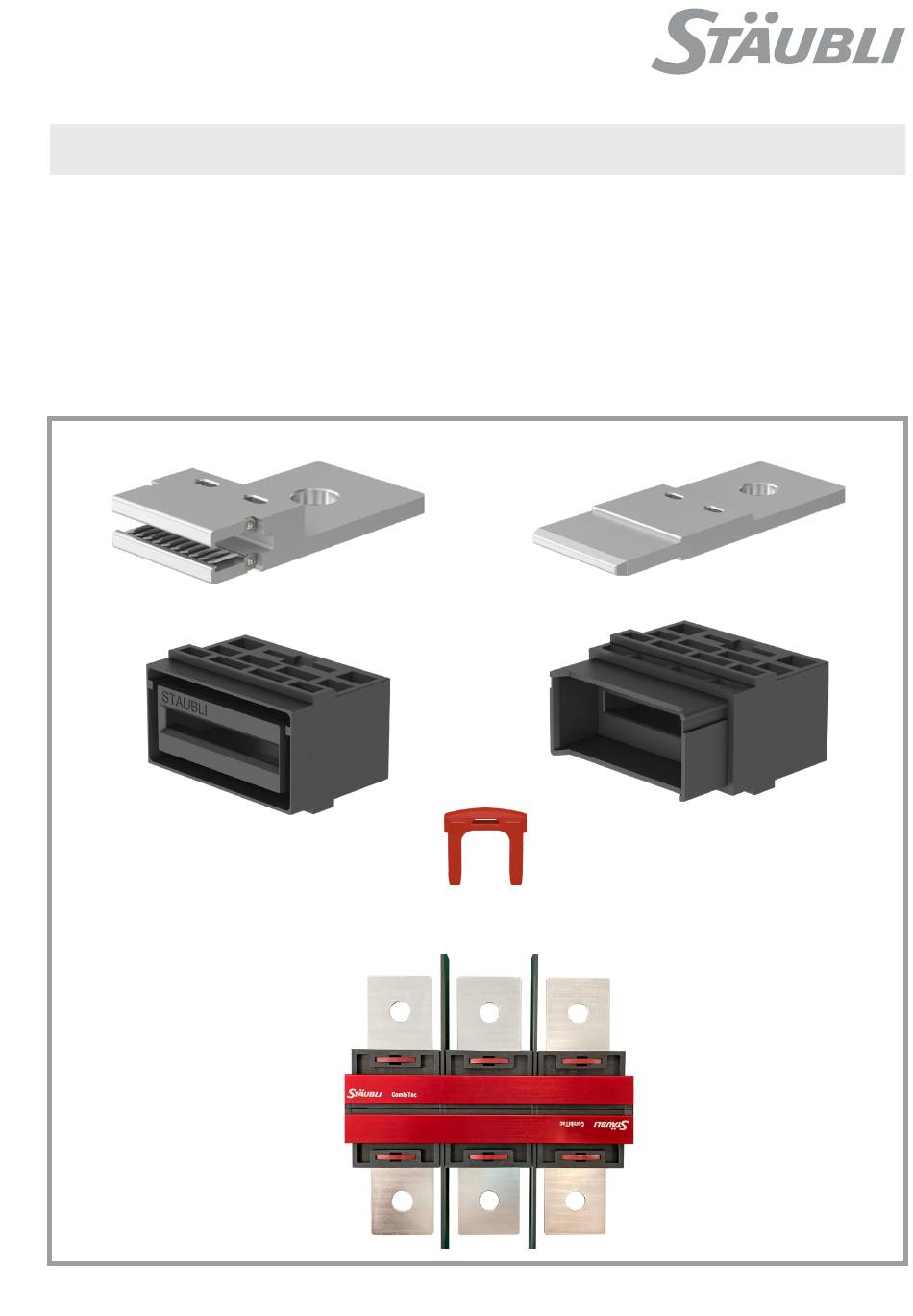

Beispielkonfiguration
Example of configuration
1 / 8

Advertisement

loading
Need help?

Need help?

Do you have a question about the CombiTac uniq CT-GSR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Staubli CombiTac uniq CT-GSR5

  • Page 1 MA000 (de_en) MA213-12 (de_en) MA000 (de_en) MA213-12 (de_en) Montageanleitung Montageanleitung Assembly instructions Assembly instructions CombiTac uniq CombiTac uniq Fork connector CT-GSR5 Fork connector CT-GSR5 Inhalt Content Sicherheitshinweise ���������������������������������������������������������������2 – 3 Safety Instructions �����������������������������������������������������������������2 – 3 Erforderliches Werkzeug ��������������������������������������������������������������4 Tools required ������������������������������������������������������������������������������4 Ausrichtung der Kontaktträger �����������������������������������������������������4 Orientation of the contact carriers ������������������������������������������������4 Montage der Leitung �������������������������������������������������������������������5...
  • Page 2 Sicherheitshinweise Safety instructions Use only the components and tools specified by Stäubli� In case Benutzen Sie nur die von Stäubli angegebenen Einzelteile und Werkzeuge� Weichen Sie nicht von den hier beschriebenen of self-assembly, do not deviate from the preparation and assem- Vorgängen zur Vorbereitung und Montage ab, da sonst bei der bly instructions as stated herein, otherwise Stäubli cannot give Selbstkonfektionierung weder die Sicherheit noch die Einhaltung...
  • Page 3 Sicherheitshinweise Safety instructions ISO 7000-0434B Vorsicht Caution Vor jedem Gebrauch ist visuell zu prüfen, ob keine äußeren Mängel Each time the connector is used, it should previously be inspected vorhanden sind (besonders an der Isolation)� Wenn Zweifel bezüg- for external defects (particularly the insulation)� If there are any lich der Sicherheit bestehen, muss ein Fachmann hinzugezogen safety concerns, an electrically skilled person must be consulted oder der Steckverbinder ausgetauscht werden�...
  • Page 4 Flacher Schraubendreher Flat screwdriver Ausrichtung der Kontaktträger Orientation of the contact carriers Alle STAUBLI-Logos müssen sich oben befinden. All STAUBLI logos must be located on the top side. Buchsenseite/Socket connecting side Steckerseite/Pin connecting side 4 / 8 4 / 8...
  • Page 5 Montage der Leitung Lead assembly (ill. 4) (ill. 4) Kabelschuh mit einem 240 mm² Kabel Crimp the cable lug with 240 mm² crimpen oder flexiblem Kupfergewebe- cable or prepare 40 mm x 5 mm flexible band mit den Maßen 40 mm x 5 mm copper strap�...
  • Page 6 (ill. 8) (ill. 8) Überstand im eingesetzten Zustand: 2 mm� Protrusion in inserted condition: 2 mm� Darauf achten, dass der Sicherungsbü- Make sure that the clip is inserted cor- gel richtig eingesetzt ist� rectly, as shown in the picture� 2 mm (ill.
  • Page 7 Demontage der Kontakte Contact disassembly (ill. 10) (ill. 10) Sicherungsbügel mit dem Schrauben- Unlock the retaining clip using the flat dreher lösen� screwdriver� (ill. 11) (ill. 11) Sicherungsbügel entfernen� Remove the retaining clip� Maximal zulässiger Abstand zwischen den Kon- Max. permissible distance between the contact taktträgern in gestecktem Zustand.
  • Page 8 Notizen/Notes: Hersteller/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 8 / 8 8 / 8...
