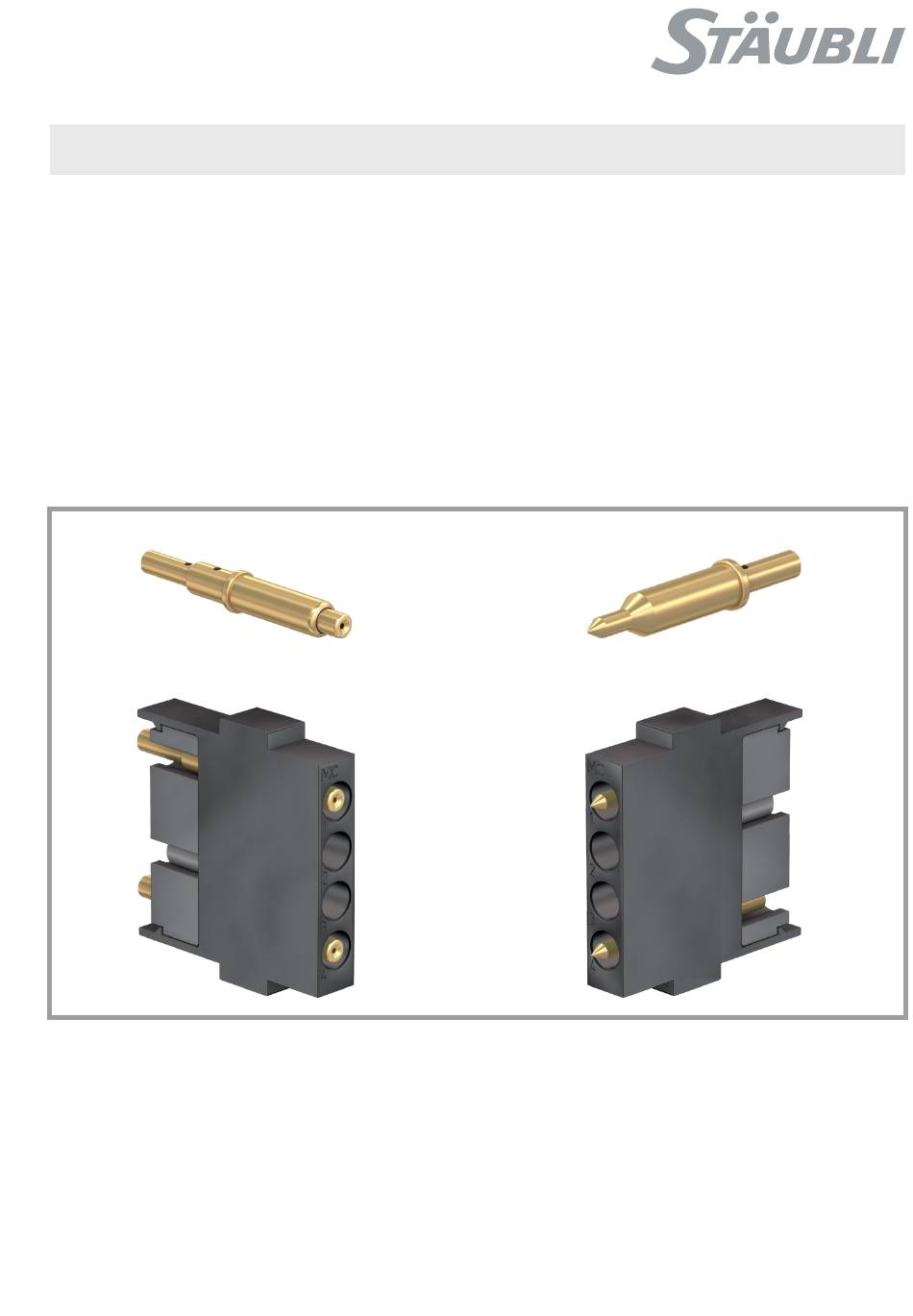

Montageanleitung
CombiTac uniq
(Last Mate First Break-LMFB)
Inhalt
Erforderliches Werkzeug �����������������������������������������������������������3
Vorbereitung der Leitungen �������������������������������������������������������3
Montage der Leitungen �������������������������������������������������������������3
Montage ������������������������������������������������������������������������������������4
Demontage ��������������������������������������������������������������������������������5
Module an CombiTac�����������������������������������������������������������������5
Notizen �����������������������������������������������������������������������������������7-8

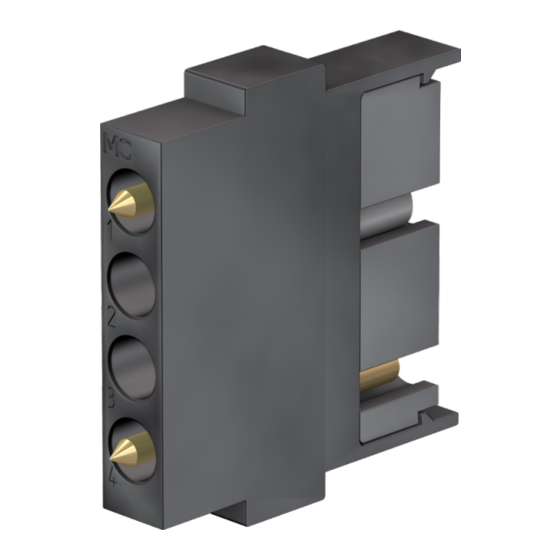

CT-LMFB-B2/0,5-1,5 AU
CT-LMFB/B
MA213-07 (de_en)
Assembly instructions
CombiTac uniq
(Last Mate First Break-LMFB)
Content
Tools required ����������������������������������������������������������������������������3
Cable preparation ����������������������������������������������������������������������3
Cable assembly �������������������������������������������������������������������������3
Assembly �����������������������������������������������������������������������������������4
Disassembly ������������������������������������������������������������������������������5
modules on CombiTac ���������������������������������������������������������������5
Notes ��������������������������������������������������������������������������������������7-8
CT-LMFB-S2/0,5-1,5 AU
CT-LMFB/S
1 / 8
