FFS2001 Series
10.3.3 Inspect/Clean TMS Inserts
Although the top and bottom TMS (Thermo-Mechanical-Stripper) inserts are cleaned after every strip, they still
should be inspected periodically for build-up of dirt and debris and/or damage to the stripper blades. For a
thorough cleaning, use the soft brush provided in the tool kit and wet the bristles with acetone. Make sure to
clean both the top and bottom inserts, including bottom V-groove and all blades.
Note: Do not clean the TMS inserts while vacuum is on. Wear safety glasses and be very careful when "brushing"
with acetone, as acetone may "spray" from the brush.
10.3.4 Change/Align TMS Inserts
The top and bottom TMS (Thermo-Mechanical Stripper) inserts contain a matched set of stripping blades at each
end. Make sure to keep top and bottom sets together to ensure optimal performance.
Note: Changing strippers means changing the entire TMS insert (both top and bottom). Do not attempt to adjust
the blades at the ends of the TMS insert. The stripper blades are precision-aligned at Thorlabs. Any misalignment
will result in poor stripping performance and possibly fiber damage.
Remove the TMS Inserts
1. Make sure power to the main unit is turned off.
2. Close the stripper top. The top insert is held in place by three setscrews accessible from the back of the
stripper block. Back off one full turn on the setscrews, using a 0.035" hex key. The bottom insert does
have provisions for holding with setscrews, but these are typically not required. Make sure the bottom
setscrews are backed off at least one full turn.
Page 74

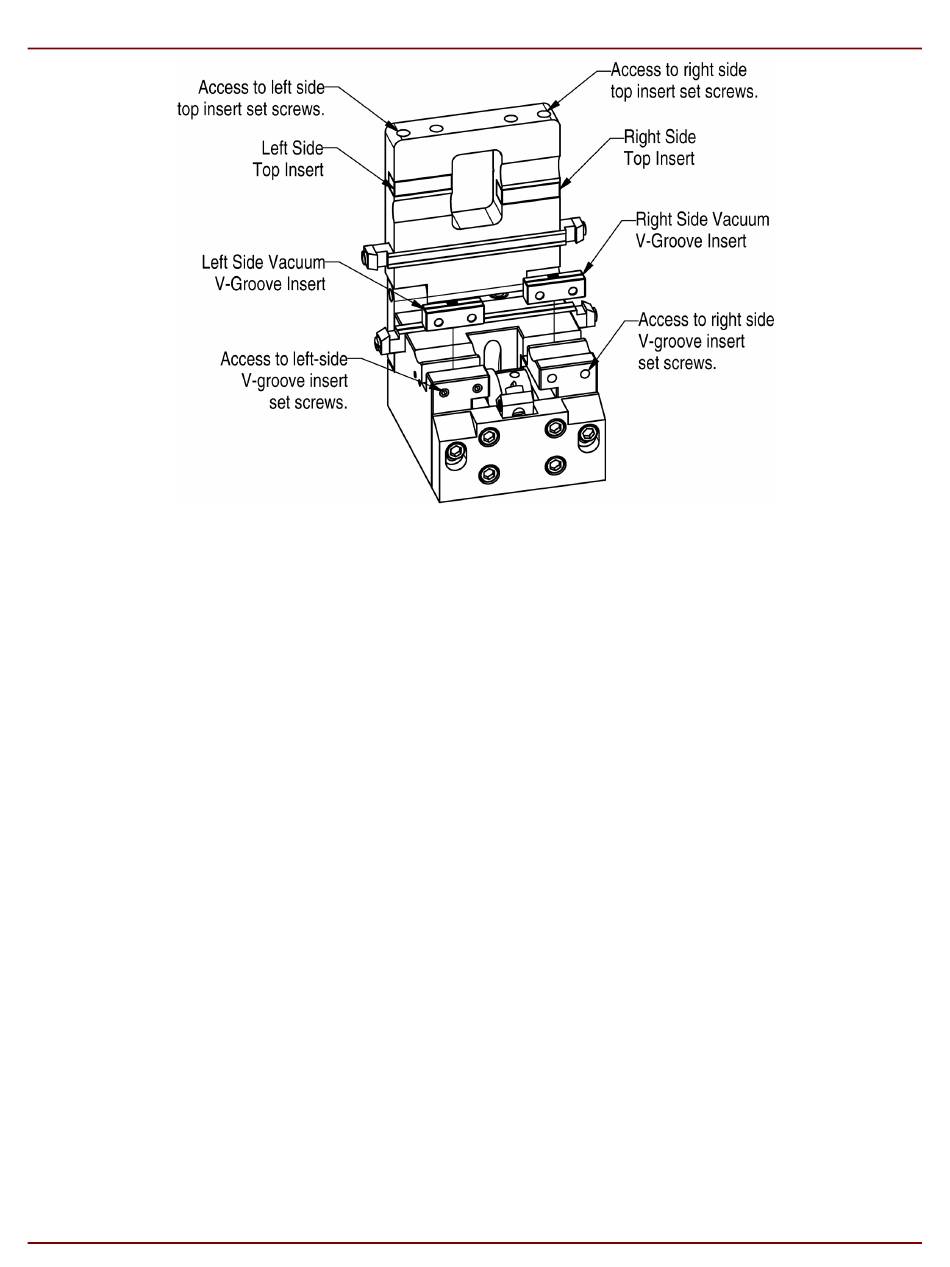

Figure 60 Change Cleave Inserts
Chapter 10: Maintenance
TTN286373-D02
