THORLABS Vytran FFS2001 Series User Manual page 32

FFS2001 Series
4.2.1 File

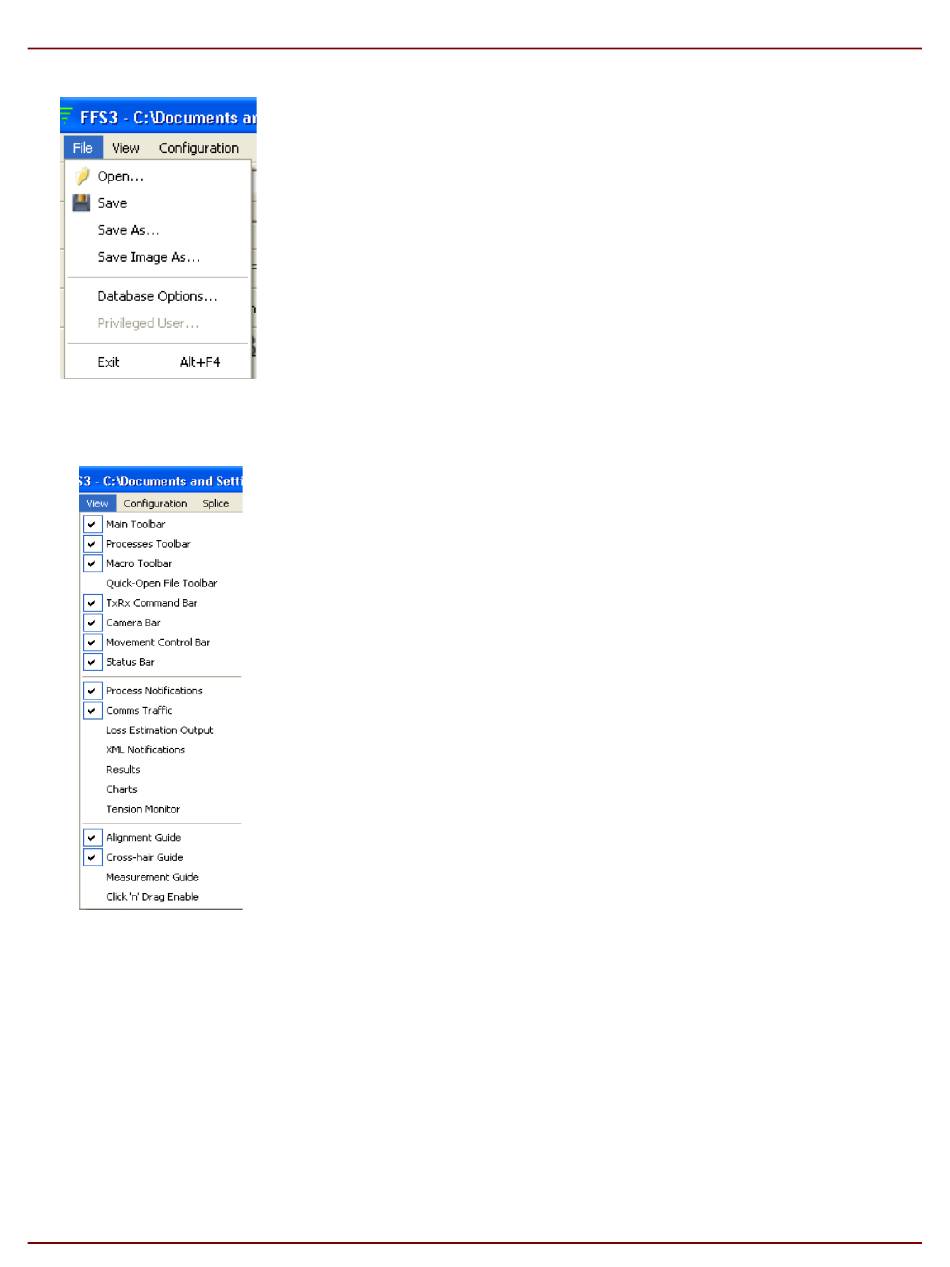

Figure 21 File Menu
4.2.2 View
Figure 22 View Menu
4.2.3 Configuration
The Configuration Menu permits the user to edit the toolbars and machine parameters.
Page 26
Open: Open a new splice data file.
Save: Save the current splice parameters to the current splice data file.
Save As: Save the current splice parameters to a new splice data files.
Database Options: Enables, Disables, or Resets the Database. The
database has preconfigured settings that should not be altered.
Privileged User: Inactive at this time.
Exit: Close the GUI.
Allows display control of the various toolbars, data windows, and
guides associated with the GUI (like crosshair and alignment guides).
The "Processes Toolbar", "Macro Toolbar" and "Quick-Open File Toolbar"
can only be activated if functions are assigned to them; this is setup under
the Configuration menu.
Chapter 4: Software
TTN286373-D02
