FFS2001 Series Chapter 10: Maintenance

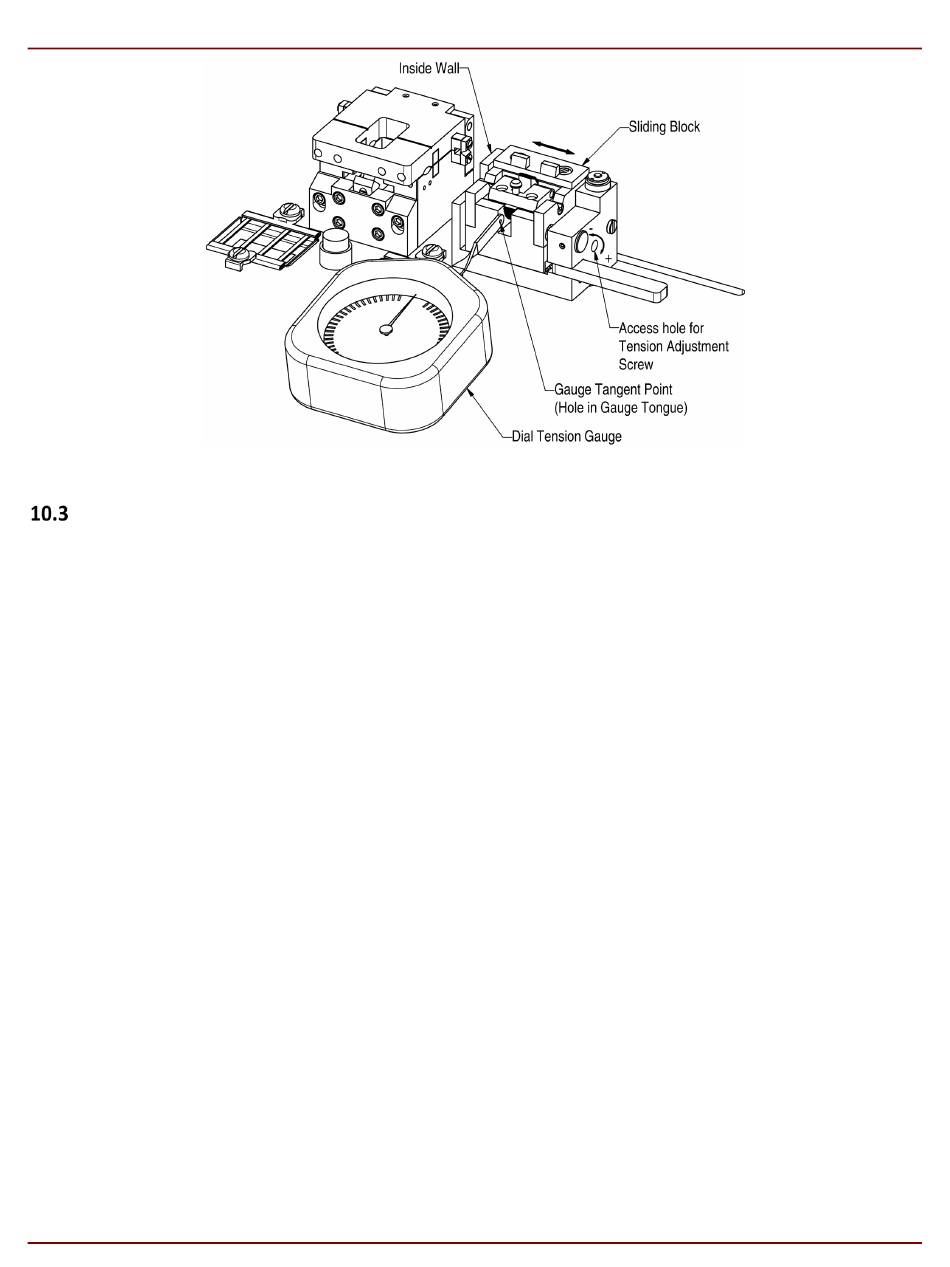

Figure 59 Adjust Cleave Tension
Strip/Cleave Station
10.3.1 Inspect/Clean Cleave Inserts
The cleave vacuum V-grooves, as well as the cleave top insert clamping surfaces, should be inspected regularly for
dirt, debris and/or damage. Damage or dirt on these surfaces could cause the fiber to break at the insert when
cleave tension is applied. The V-grooves and top insert can be cleaned with the soft brush provided in the tool kit.
Wet the bristles of the brush with acetone for more thorough cleaning.
Note: Do not clean the cleave V-groove inserts while vacuum is on. Wear safety glasses and be very careful when
"brushing" with acetone, as acetone may "spray" from the brush.
If the vacuum ports at the bottom of the V-groove appear plugged, and/or the top or bottom inserts appear
damaged, it may be necessary to remove them for more thorough cleaning and/or replacement.
10.3.2 Change/Remove Cleave Inserts
The cleave assembly contains replaceable V-groove inserts which are designed to hold a specific fiber size. To
change an insert, loosen the two appropriate 2-56 set screws in the base of the cleave block using a 0.035" hex
key (one full turn counterclockwise should be sufficient). Slide the insert sideways to remove. Install the new insert
such that the V-groove side is up and the size label (if imprinted) is right side up. Make sure the new V-groove is
fully seated and that the ends are flush side-to-side with the base block. Gently tighten the two set screws to
secure in place.
The top cleave inserts can be similarly changed by loosening the two appropriate top set screws, which are
accessible from the front edge of the top. Top cleave inserts can be flipped "upside down" for a "new" clamping
surface.
