All parameters are edited in the same manner: click once, wait a second, click again to highlight for editing
•
as shown in Figure 36 and Figure 37.
• Set the parameters to perform the process that is required. For example, a preheat step might be setup
as shown in Figure 38.
Any number of splice stages may be added. Click Add Step to add a second stage as shown in Figure 39.
•
Add as many heating, cooling, and pushing stages as are required.
Page 36
The argon flow rate for the splice process.
The velocity at which the fibers are pushed together during fusion.
This is the distance that the fibers are pushed together after Hot Push Delay.
The length of time after beginning of the specific stage, before pushing fibers.

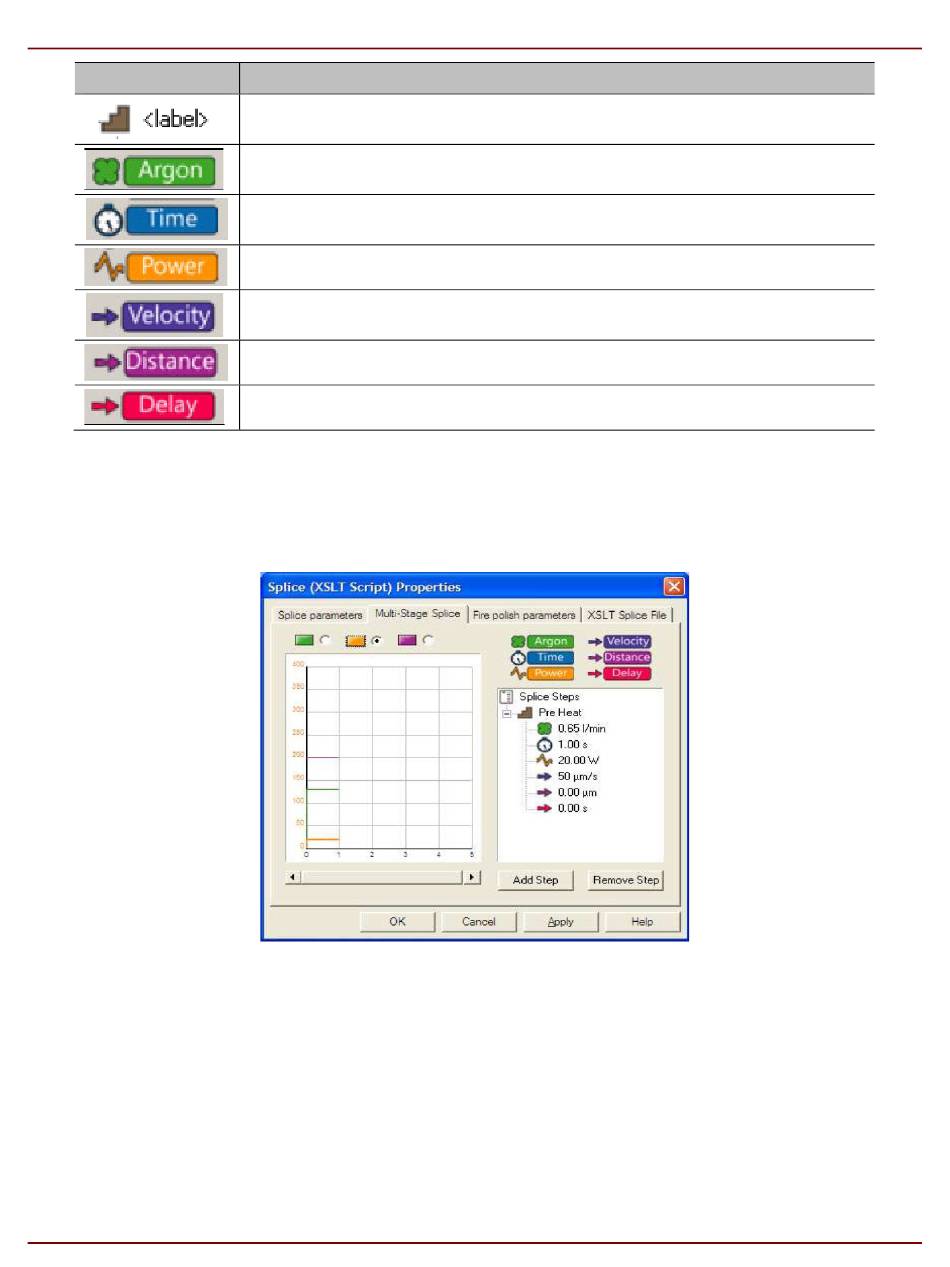

Figure 38
Parameter Description
Splice stage name: <Label>
The splice time in seconds.
The splice power in watts.
Sample Stage
