FFS2001 Series
Movement Control Bar

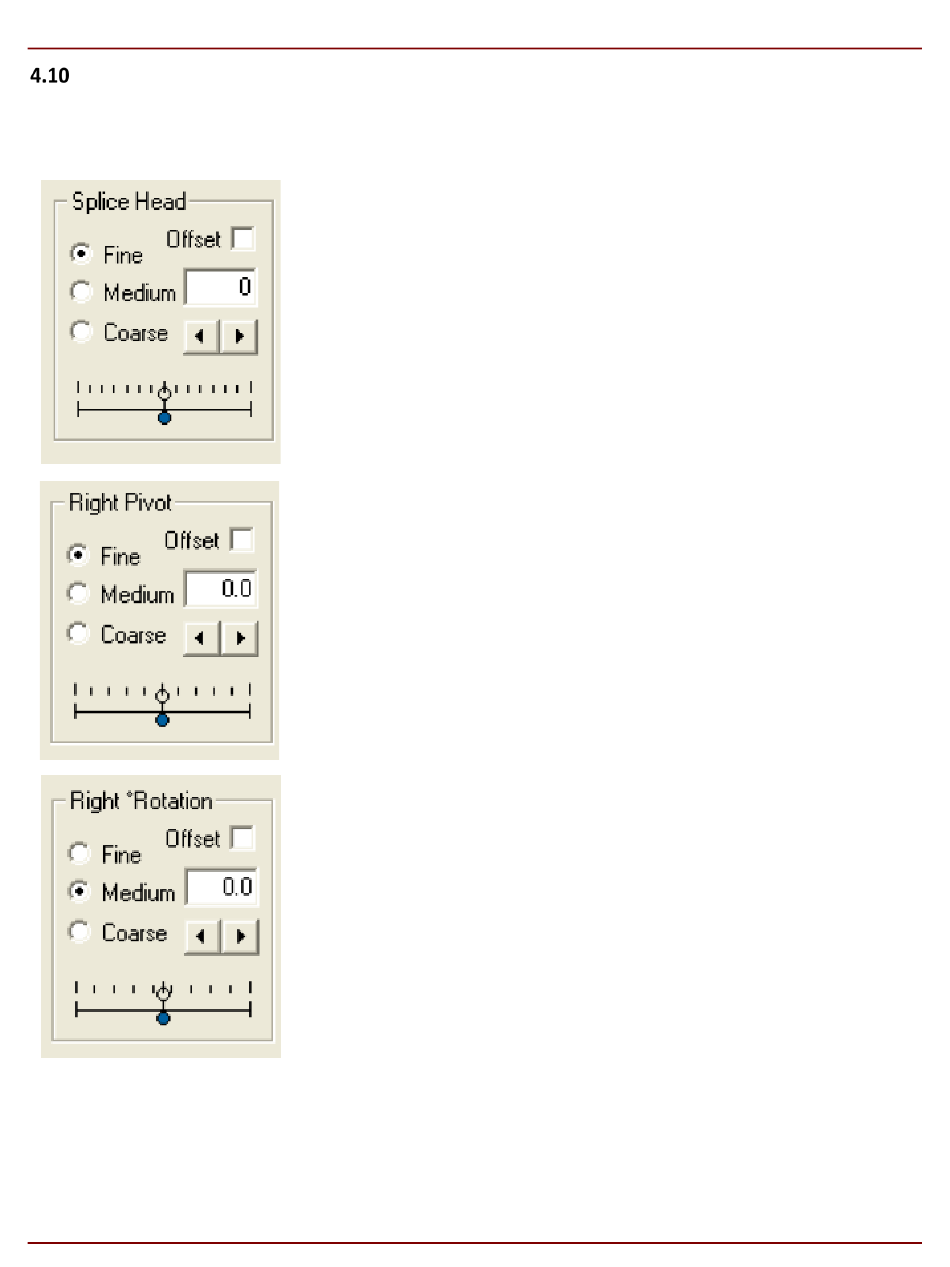

The seven boxes in the Movement Control Bar permit the user to move the fiber holding blocks and splice head
at will, by clicking on the forward and back arrows. The radio buttons labeled "Fine," "Medium" and "Coarse"
adjust the magnitude of each step.
Rev. A, August 14, 2024
The "Splice Head" box enables the user to move the splice head left or right.
Positive motion is to the right and the position is displayed in microns.
The "Right Pivot" box enables the user to move the right fiber for alignment
in the front view. There is an identical box for "Left Pivot" to move the left
fiber for alignment in the front view.
The "Right Rotation" box enables the user to rotate the right fiber. There is an
identical box for "Left Rotation" to rotate the left fiber.
