THORLABS Vytran FFS2001 Series User Manual page 60

FFS2001 Series
Load the fibers by carefully placing the transfer jig with its pins into the bushings. Make sure to guide the transfer
jig during the placement so that the fibers don't touch any components of the splicing station besides the Graphite
V-groove inserts. The Transfer Jig can be dropped the last few mm. Once the Transfer Jig is positioned, the vacuum
activates, which draws the fibers into the Graphite V-groove inserts of the fiber positioners.
Check to ensure that:
• The fibers are lying in the bottom of the Graphite V-grooves and no debris is visible.
• The fibers are lying in the center of the channel (fiber groove) running across the Splice Head surface.
• The fibers are sitting within the Omega-shaped Filament.
DO NOT touch the bare glass of the fiber. Finish the loading procedure by gently lowering the splice top.
• Make sure the mirror toggle is positioned with the 135° side view mirror down as shown in Figure 52 prior
to closing the splice top. Scratching of the 90° mirror can result if it is lowered onto the bar fiber in the
camera viewing area.
After closing the Splice Cap, a live view of the fibers is displayed in the software interface. The fibers should be
roughly centered on the screen in the front and back view with a slight gap between the fiber ends, and they
should be roughly focused. If the fibers are overlapped, skewed, or completely missing from the screen, refer to
the diagnostics section at the end of this chapter for the appropriate action.
To continue the One Button Splice Process, click OK in the "load fiber dialog" or press the Splice Button on the
workstation again. The activated splice routine consists of multiple sub-processes that are defined within the
Splice Process Editor. These sub-processes can be grouped into fiber alignment, fiber splice, fire polish, and loss
estimation, which are further defined in the following sections.
Splice Routine
6.4.1 Fiber Alignment Methods
After the user starts the splice routine, the fibers will be aligned according to the subroutines assembled in the
active splice routine. The alignment routines are:
Page 54
Do NOT use the Splice
allowing the operator to load the fiber.

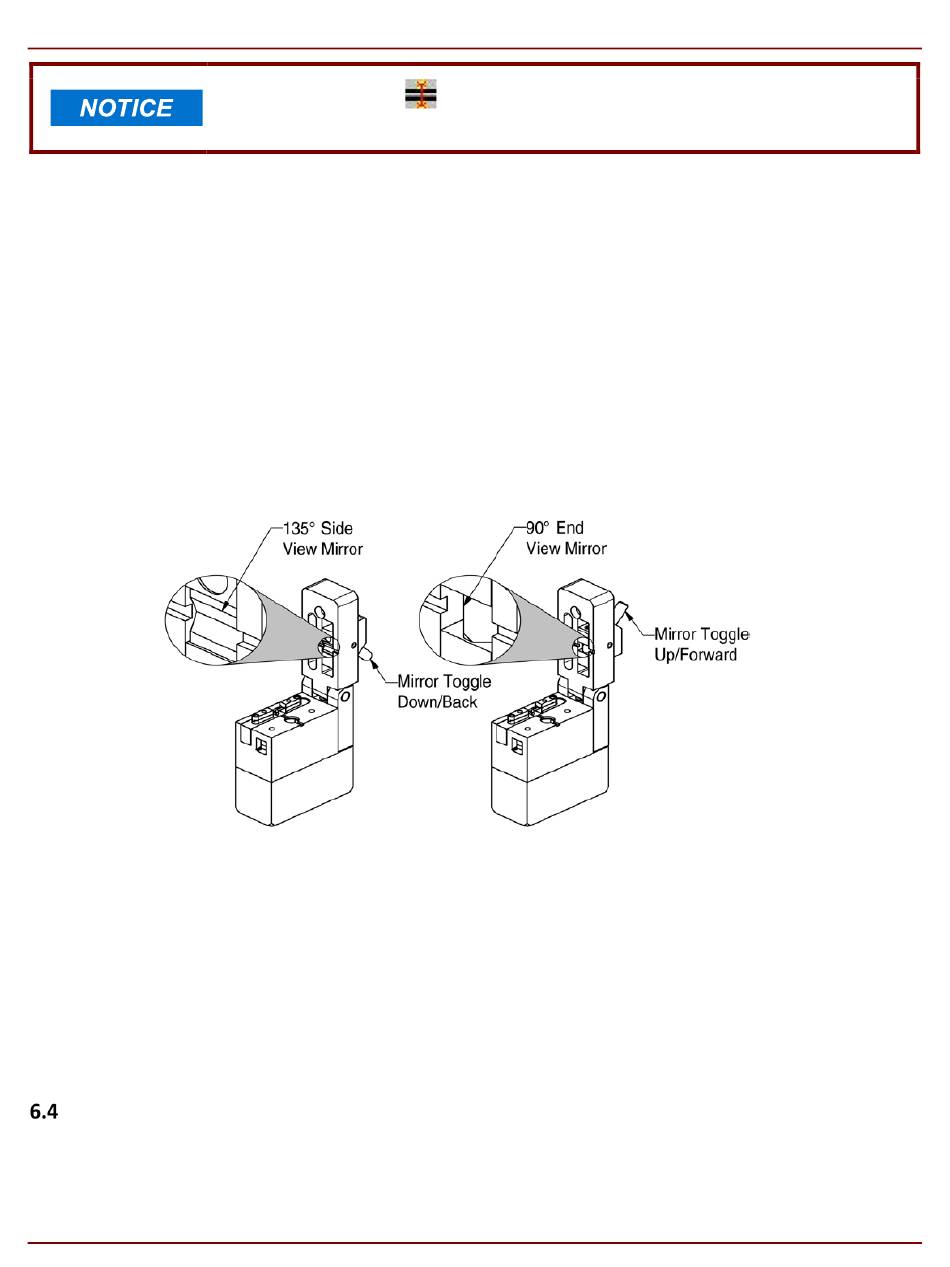

Figure 52
command, as it will execute a splice immediately without
Mirror Toggle of Splice Top
Chapter 6: Splicing the Fiber
TTN286373-D02
