FFS2001 Series
4.14.1 Multi-Stage Splice Properties
Enabling the Multi-Stage Splice Process
• Go to Splice → Splice Parameters.
• The normal default is for Multi-Stage Splice to be disabled. Check the Multi-Stage Splice check box as
shown in Figure 35.
• Most of the splice parameters will become grayed out, the parameters that remain active are: Pre-Gap,
Pre-Push, Push Velocity and Splice Offset.
•
After setting the "Pre-Splice" parameters then open the Multi-Stage properties page by clicking on the
Multi-Stage Splice tab. The Multi-Stage Splice tab is pictured in Figure 36.
Page 34

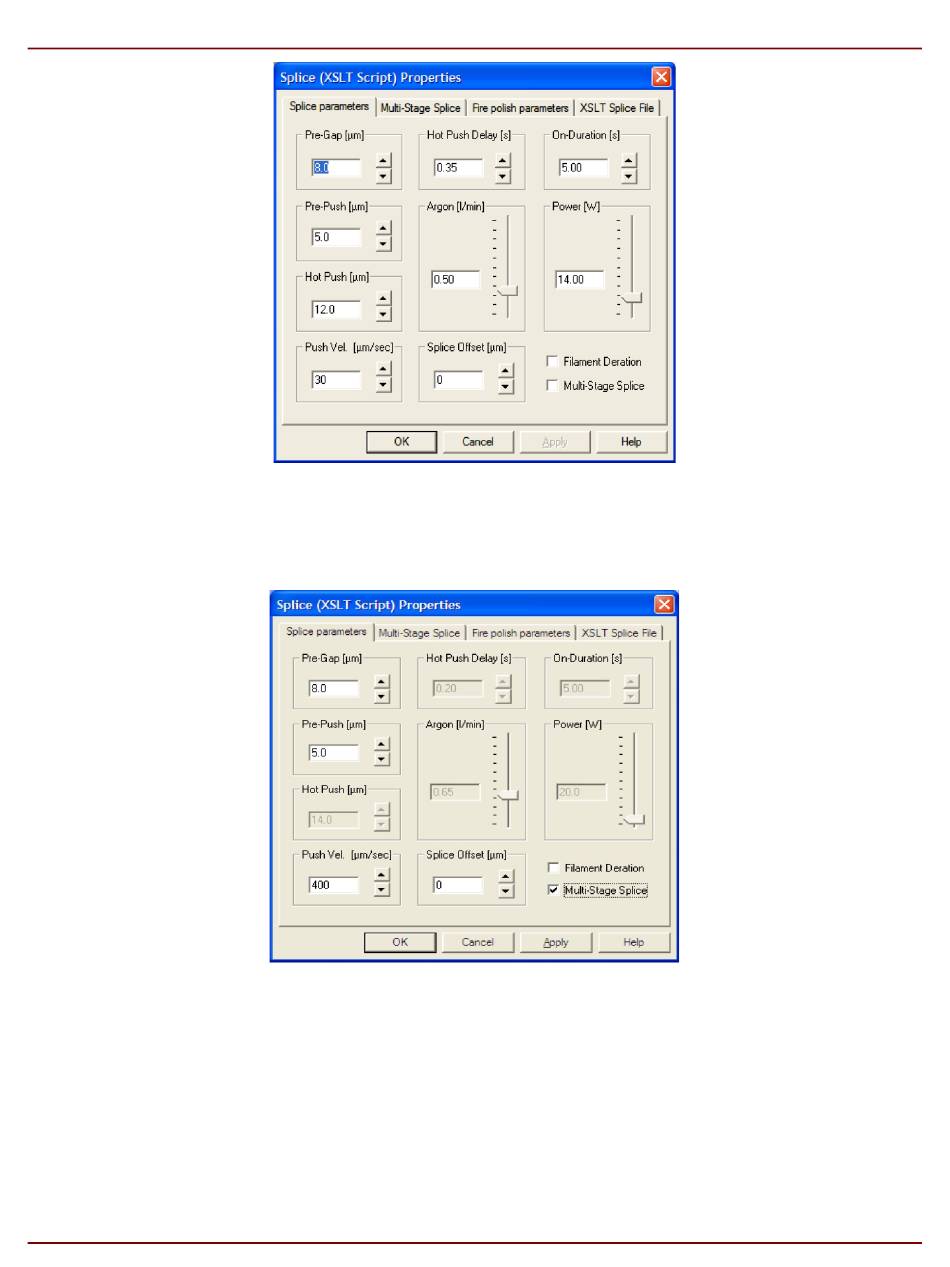

Figure 34 Splice Properties
Figure 35 Activating Multi-Stage Splice
Chapter 4: Software
TTN286373-D02
