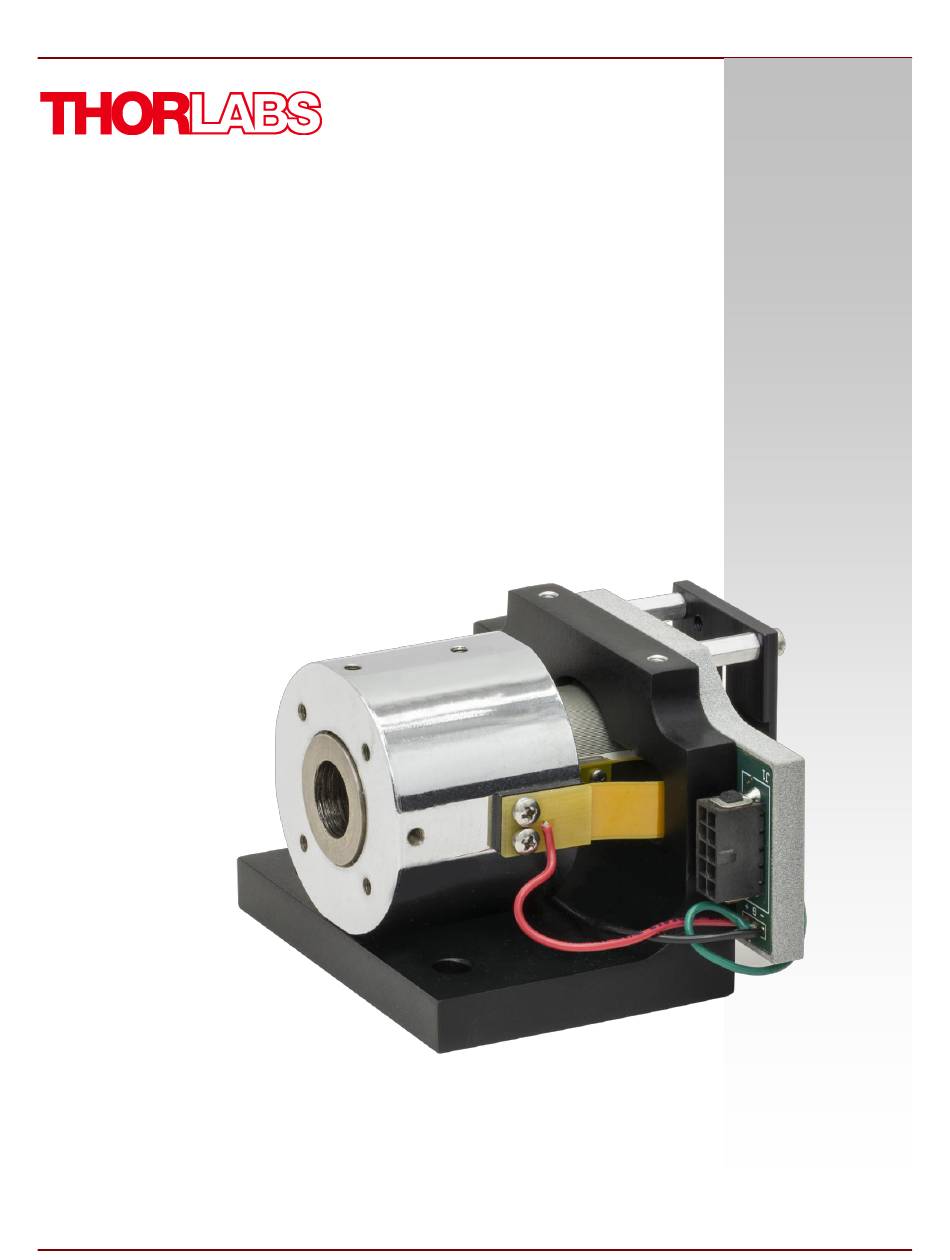

- Page 1 BLINK High-Speed Focuser BLINK High-Speed Focuser User Guide...
-
Page 2: Table Of Contents
3.4.2 Servo Amplifier Command Input ........................4 3.4.3 BLINK Motor Connection to Servo Amplifier....................4 3.4.4 BLINK Pressure Switch Connection to Servo Amplifier ................5 System Check ........................6 Mounting a Lens ........................ 6 Operation ......................... 8 Chapter 4 Driving the BLINK Focuser ....................8 4.1.1... - Page 3 BLINK High-Speed Focuser Thorlabs Worldwide Contacts ................19 Chapter 9...
-
Page 5: Chapter 1 Safety
BLINK High-Speed Focuser Chapter 1: Safety Chapter 1 Safety Warning: Laser Radiation Although the unit does not emit radiation, it does redirect laser radiation emitted from other devices. Operators must follow all safety precautions provided by the manufacturer of any associated laser devices. -
Page 6: Chapter 2 Introduction
The BLINK High-Speed Focuser (US Patent 11,090,761) is designed to dynamically map a focal correction onto the laser beam. When a focusing lens or reflective optic is mounted in the BLINK focuser, it translates linearly at high frequency with high precision using the built-in optical position detector. In laser marking applications, the focuser adjusts the effective focal point of a galvo scanning system as a function of the mirrors’... -
Page 7: Chapter 3 Setup
Thorlabs offers the CBLS2F cable kit, which includes power and command cables for easy connection to the servo amplifier. For a customer wishing to make their own cable configuration, the BLINK ships with a set of the connectors required for interfacing with the amplifier. -
Page 8: Servo Amplifier Power Input
BLINK Motor Connection to Servo Amplifier Note: Amplifiers are individually tuned to specific units. Look for a label indicating the matching serial number on the bottom of the amplifier. Figure 1 Locations of Serial Numbers on BLINK Focuser and Servo Amplifier J2 Pins Function Function... -
Page 9: Blink Pressure Switch Connection To Servo Amplifier
Chapter 3: Setup The included 50-0198-24 cable assembly is labeled at each end either “MOTOR” or “AMP”. The “MOTOR” side connects to the BLINK focuser, while the “AMP” side connects to the J2 connector on the servo amplifier. Figure 2 Illustration of 50-0198-24 Cable Connection 3.4.4... -
Page 10: System Check
3.6 Mounting a Lens BLINK units without a bonded optic have a Ø12.7 mm lens cell to accommodate an optic with a thickness of 1.00 - 3.35 mm. A non-bonded lens will have a clear aperture of Ø11 mm. The unit includes an SPB05 spanner bit required to change lenses. - Page 11 BLINK High-Speed Focuser Chapter 3: Setup Caution: Risk of Damage Failure to use the supplied stabilizer wrench when changing an optic may result in inadvertently twisting the stator and damaging the flex circuits. The stator should always be stabilized prior to adjusting an optic.
-
Page 12: Chapter 4 Operation
The position detector incorporates an Automatic Gain Control (AGC) circuit. The expected AGC range for the BLINK is 6.3 V to 7.5 V at room temperatures. It will vary a bit outside of this as temperatures drift and the unit ages. -
Page 13: Chapter 5 Specifications
BLINK High-Speed Focuser Chapter 5: Specifications Chapter 5 Specifications 5.1 Unit Specifications Item # BLINK BLINK-Y1 BLINK-Y3 Included Lens Coating Type Nd:YAG 355 nm Wavelength Range 1000 - 1550 nm 245 - 400 nm Effective Focal Length -75 mm Size Ø12.7 mm... -
Page 14: Dynamic Performance For A 1.0 Mm Stroke Reference Move
BLINK High-Speed Focuser Chapter 5: Specifications AGC Voltage Analog (DC) Coil Current 1 V/A Analog Output Impedance Unbuffered Power Supply (Not Included) Input Voltage ±15 VDC Ripple <100 mV Ripple Noise <0.5% DC to 30 MHz Maximum Drive Current Limit Peak: 10 A per Leg RMS: 3.0 A per Leg (Dependent on Power... -
Page 15: Gpwr15 Power Supply Unit Specifications
BLINK High-Speed Focuser Chapter 5: Specifications 5.4 GPWR15 Power Supply Unit Specifications Parameter Value Input 100 - 200 VAC or 220 - 240 VAC Output ±15 V at 5 A (150 W Max Power) Operating Temperature 0 to 50 °C 14.0"... -
Page 16: Chapter 6 Mechanical Drawings
BLINK High-Speed Focuser Chapter 6: Mechanical Drawings Chapter 6 Mechanical Drawings 6.1 BLINK Focuser Figure 4 BLINK Mechanical Drawing Page 12 MSTN000928-D02... - Page 17 BLINK High-Speed Focuser Chapter 6: Mechanical Drawings Figure 5 BLINK Mechanical Drawing Continued Rev. C, April 20, 2023 Page 13...
-
Page 18: Servo Amplifier
BLINK High-Speed Focuser Chapter 6: Mechanical Drawings 6.2 Servo Amplifier Figure 6 QD-2000 Servo Amplifier Mechanical Drawing Page 14 MSTN000928-D02... - Page 19 BLINK High-Speed Focuser Chapter 6: Mechanical Drawings Figure 7 QD-2000 Servo Amplifier Jumpers, Potentiometers, Test Points, and LEDs (Shown with Notch Filter Removed Test Points Potentiometers Raw Position Low Frequency Damping (LFD) Ground Servo Gain (SG) Power Amp Out Input Scale Adjust (IS)
- Page 20 BLINK High-Speed Focuser Chapter 6: Mechanical Drawings Figure 8 QD-2000 Servo Amplifier Connectors Connectors Command Motor Power Diagnostic Ground Page 16 MSTN000928-D02...
-
Page 21: Chapter 7 Troubleshooting
0 V were applied. An out-of-range command signal can disable the system to prevent it from driving into the stops. 7.2 Additional Troubleshooting Below are a few checks to help in troubleshooting problems that may arise. Please contact your local Thorlabs Technical Support office with any questions. Observation... -
Page 22: Chapter 8 Warranty And Rma Information
Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user’s responsibility to delete all private data stored on the device prior to disposal. - Page 23 BLINK High-Speed Focuser Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at for our most up-to-date www.thorlabs.com/contact contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
- Page 24 www.thorlabs.com...
