FFS2001 Series
•
Power Switch: This is a rocker switch used to power up the unit.
Power Socket: This is where to plug in the DC power cable coming from the power supply.
•
1.5.11 Side Panel
The side panel features a service port which makes is possible to do firmware updates without opening up the
unit. This port is covered by a small metal plate held in place by to Phillips-head screws.
Page 18

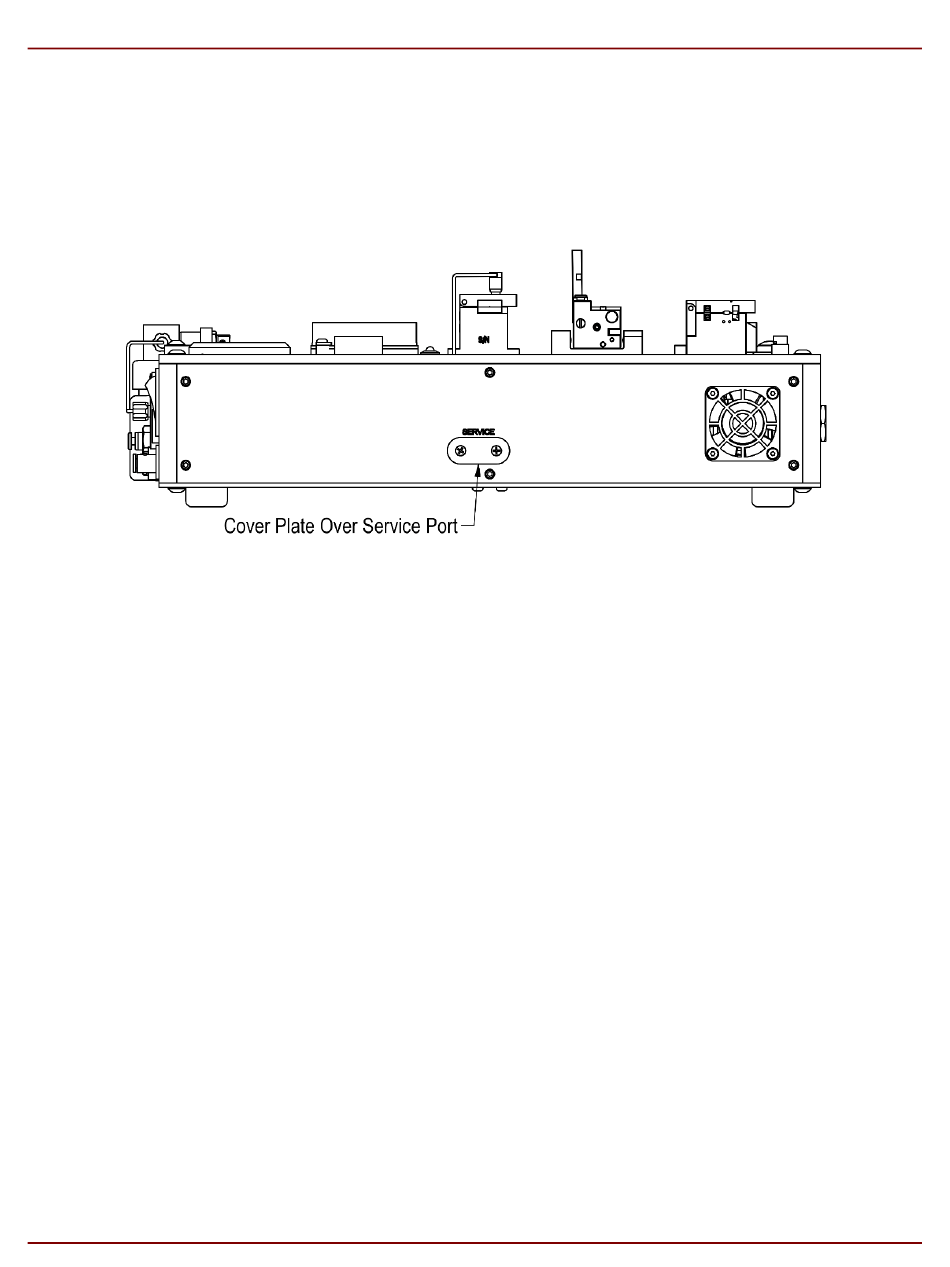

Figure 18
Side Panel
Chapter 1: Introduction
TTN286373-D02
