FFS2001 Series
Maximum Tension a
Mandrel Size
Accuracy
a. The proof tester is calibrated using standard weights that are hung off a pulley, so the tension settings are programmed in grams.
This maximum tension corresponds to 9.1 kg.
1.4.6 Mechanical Drawings
Rev. A, August 14, 2024
Proof Testing

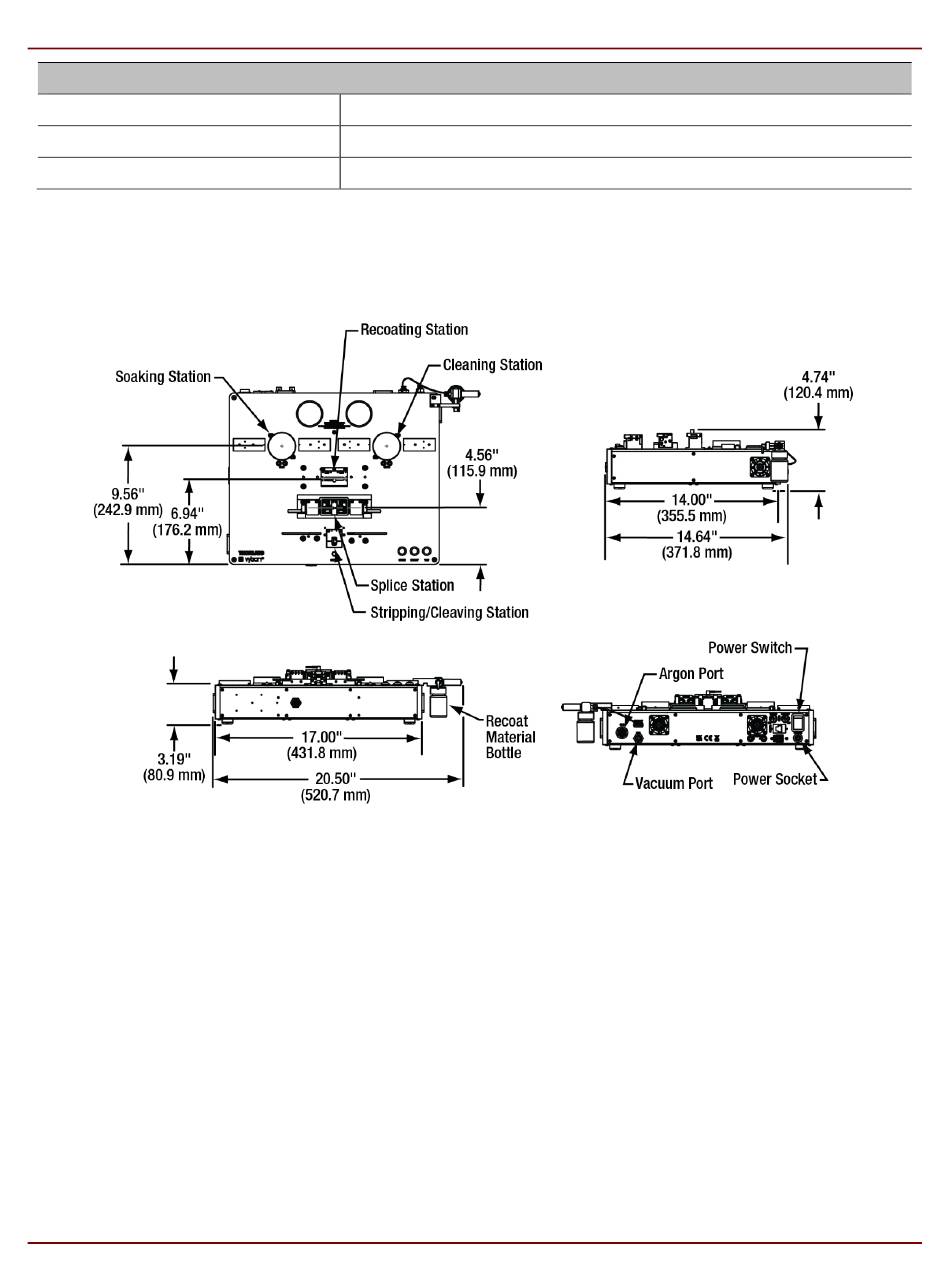

Figure 1 FFS2001 Mechanical Drawing
89 N (20 lbs)
Ø2" (Ø50.8 mm)
±2%
